Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

  1. 2.  This step tests the condition of the Cellular Antenna.
  2. 3.  This step tests the condition of the cellular antenna coax and for proper ground of the cellular antenna.

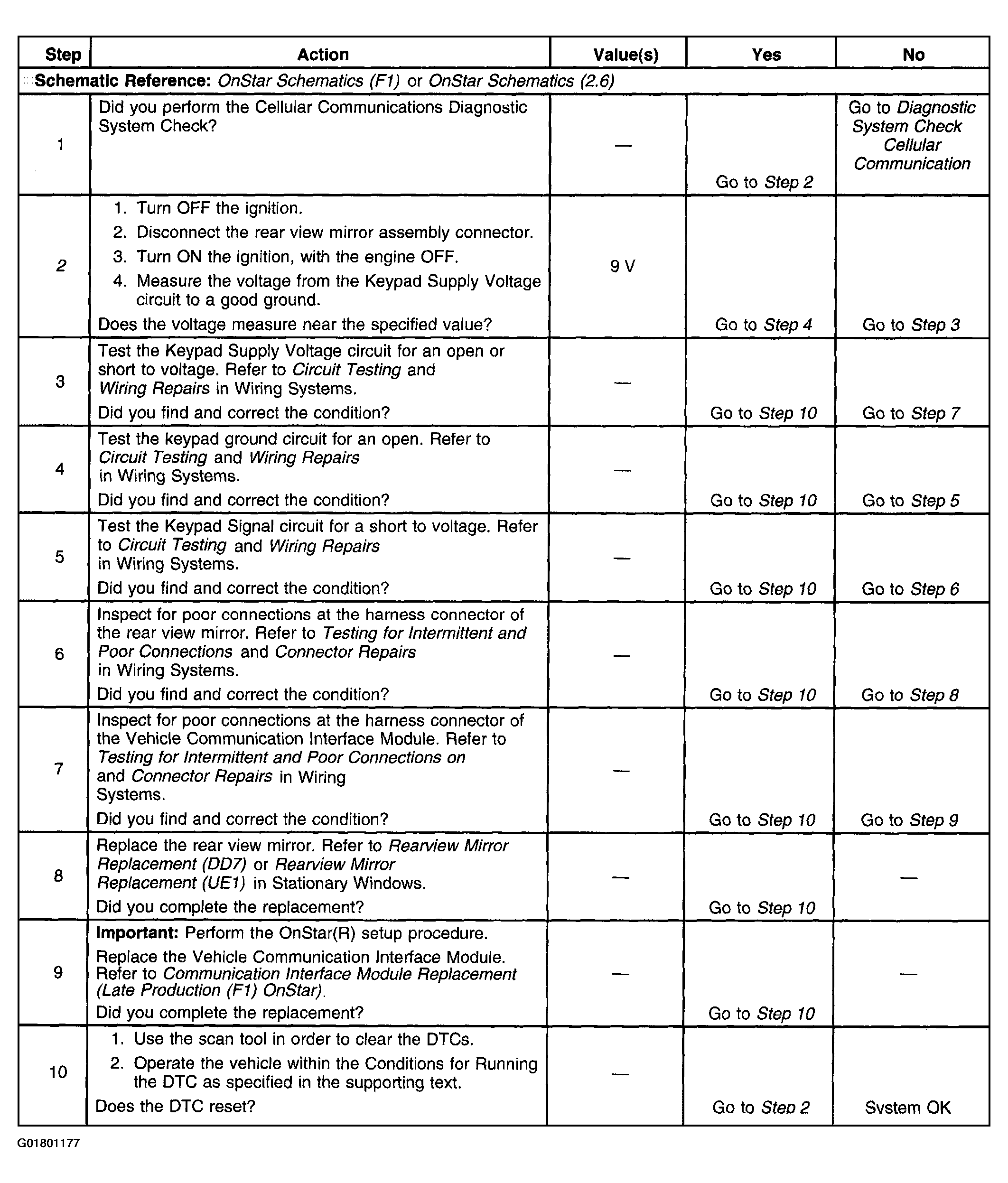

Fig 1: DTC B2470
G01801177Courtesy of GENERAL MOTORS CORP.
