Cellular Communication Connector End Views (2.6)

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

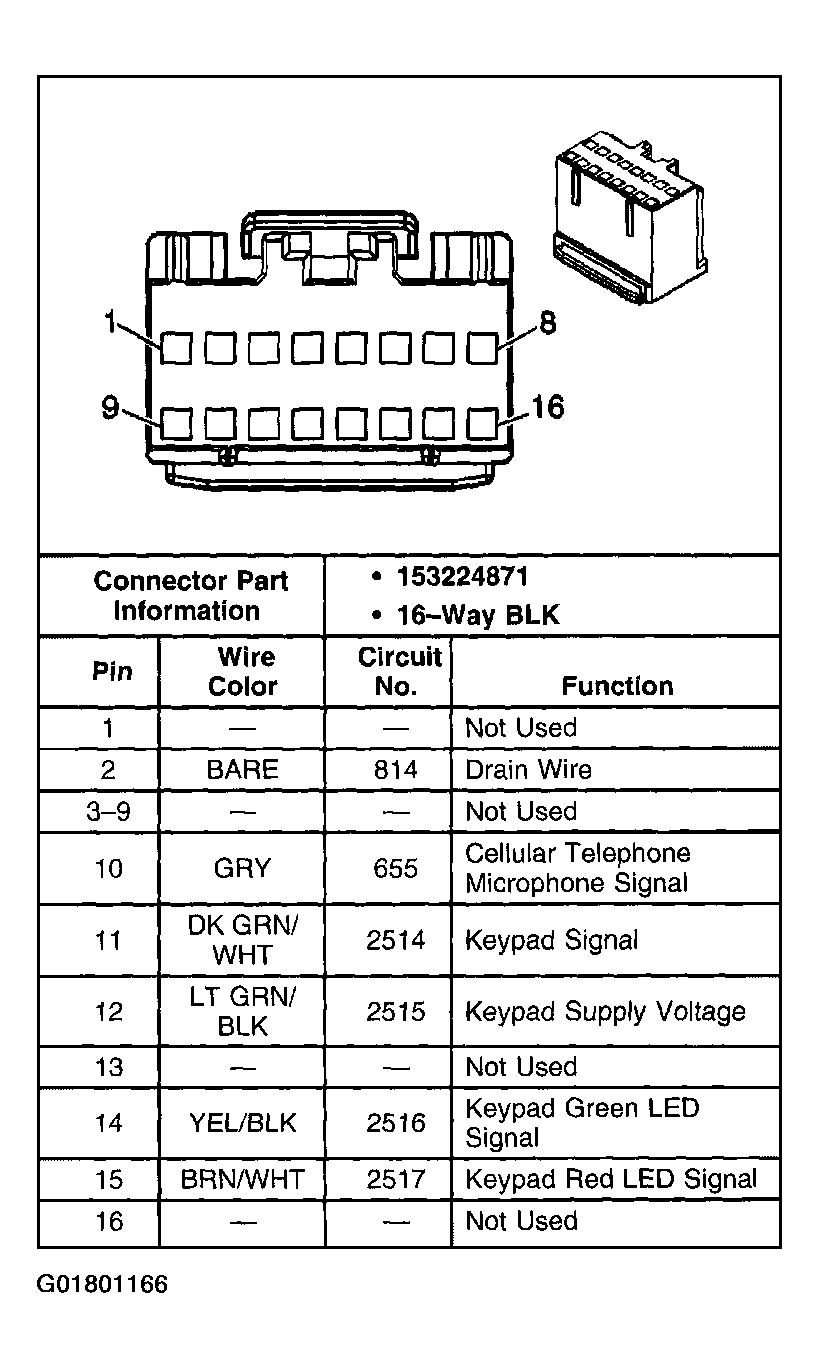

Fig 1: Inside Rear View Mirror

Courtesy of GENERAL MOTORS CORP.

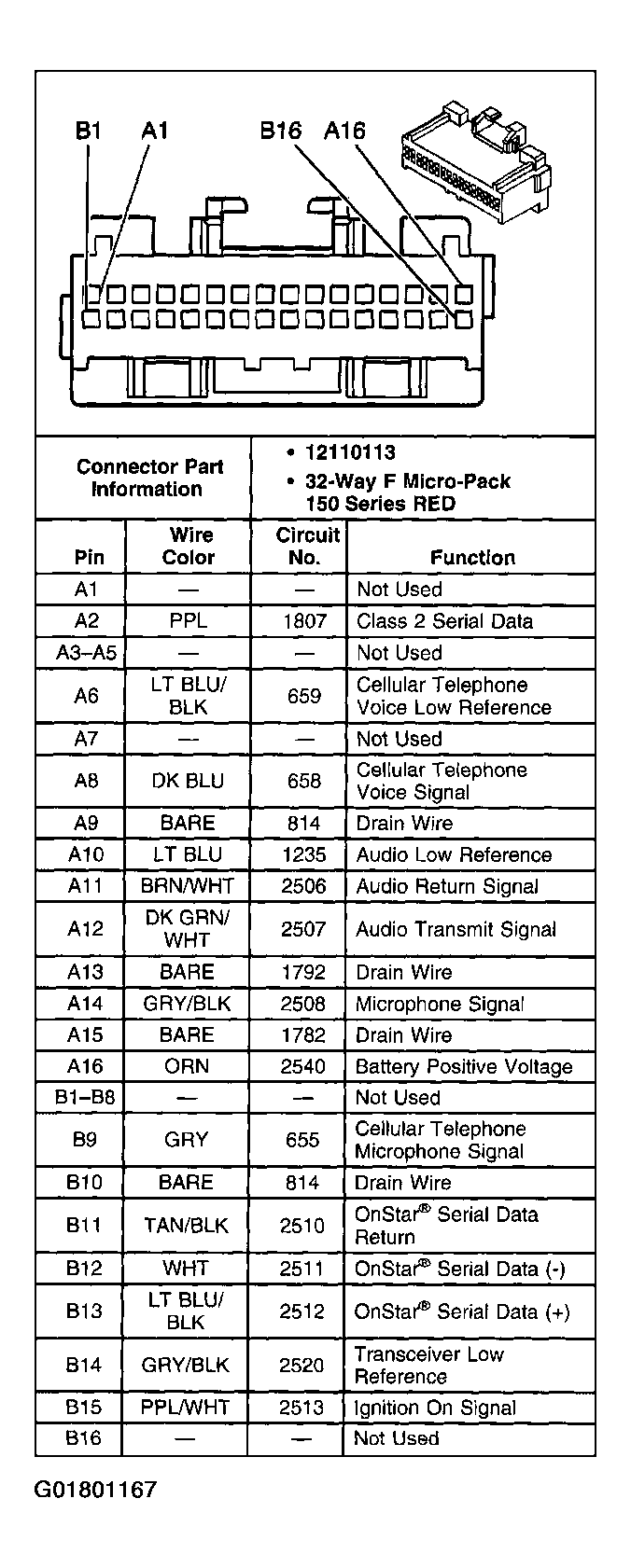

Fig 2: Vehicle Interface Unit (VIU) C1

Courtesy of GENERAL MOTORS CORP.

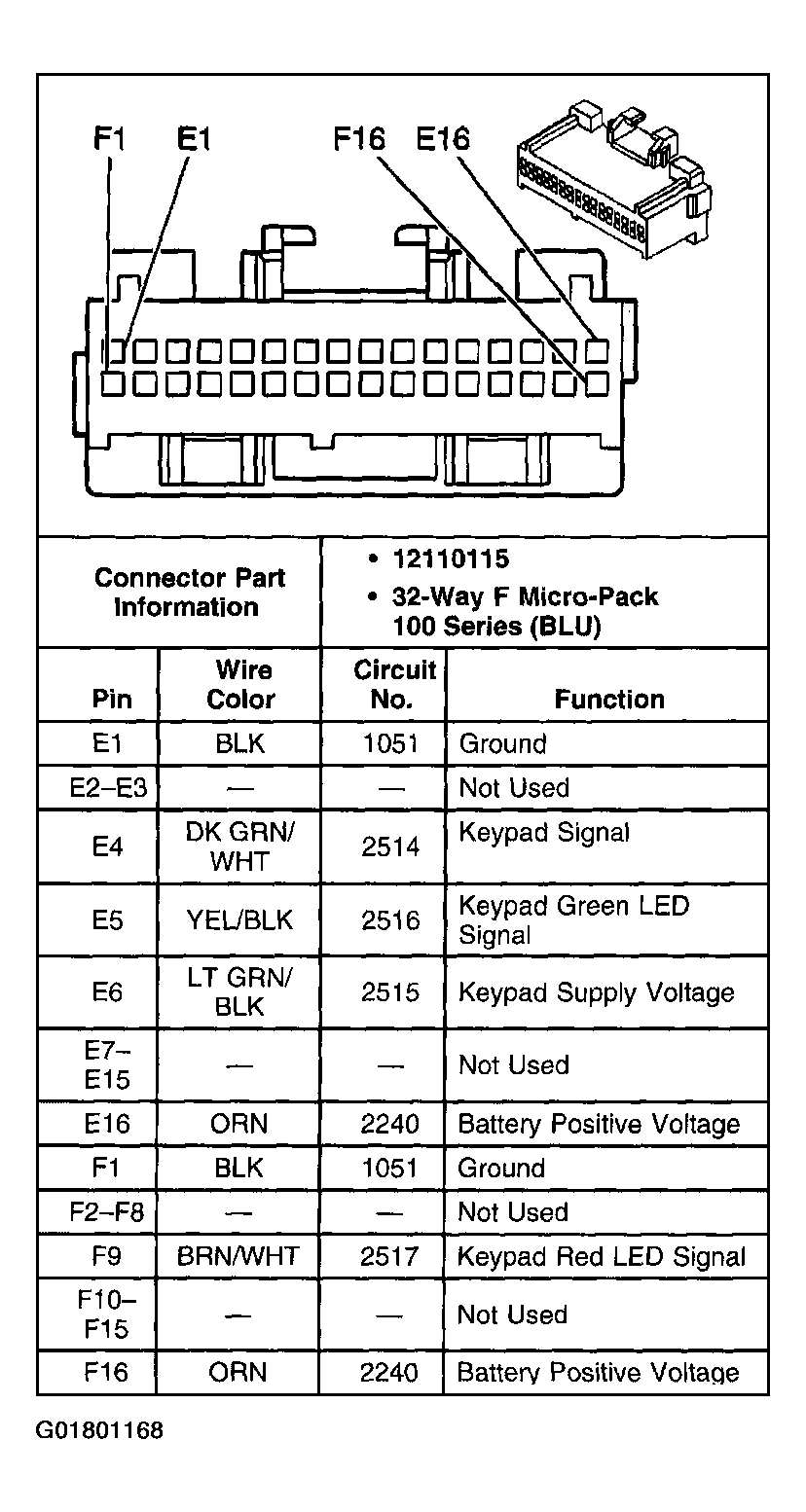

Fig 3: Vehicle Interface Unit (VIU) C2

Courtesy of GENERAL MOTORS CORP.

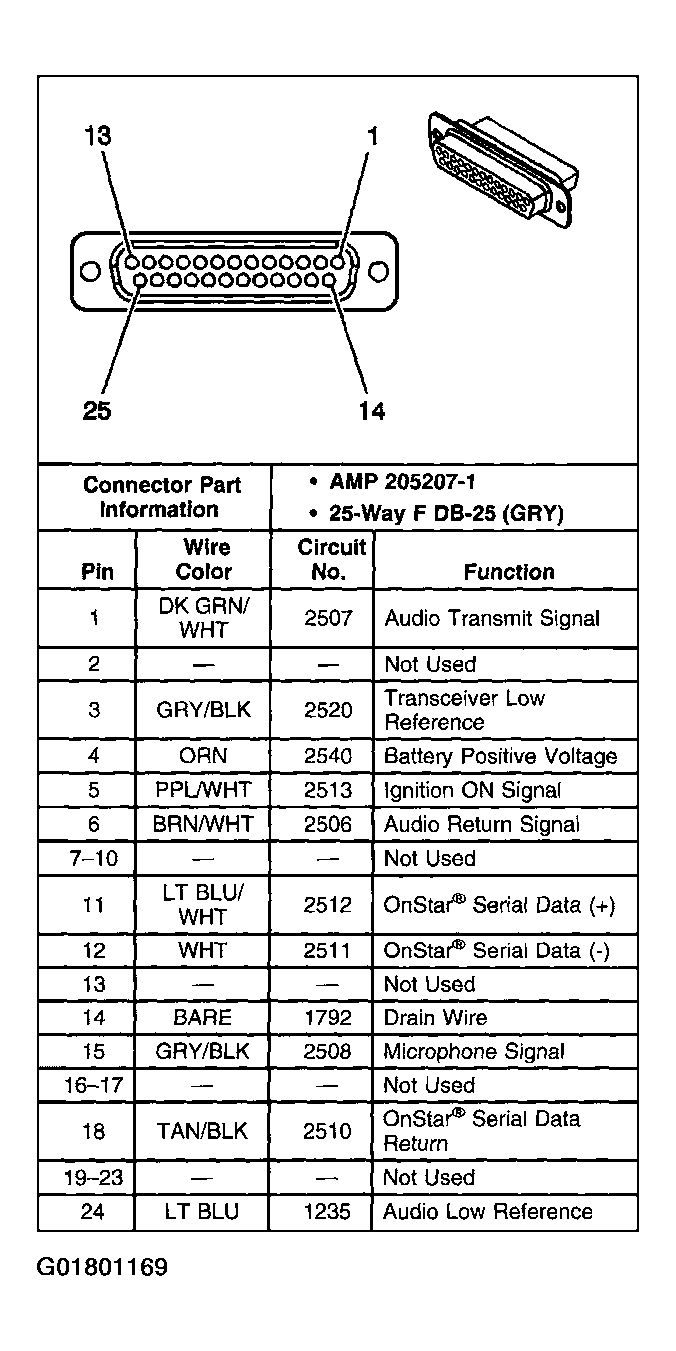

Fig 4: Vehicle Communication Unit (VCU)

Courtesy of GENERAL MOTORS CORP.
