Cellular Communication Component Views (2.6)

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

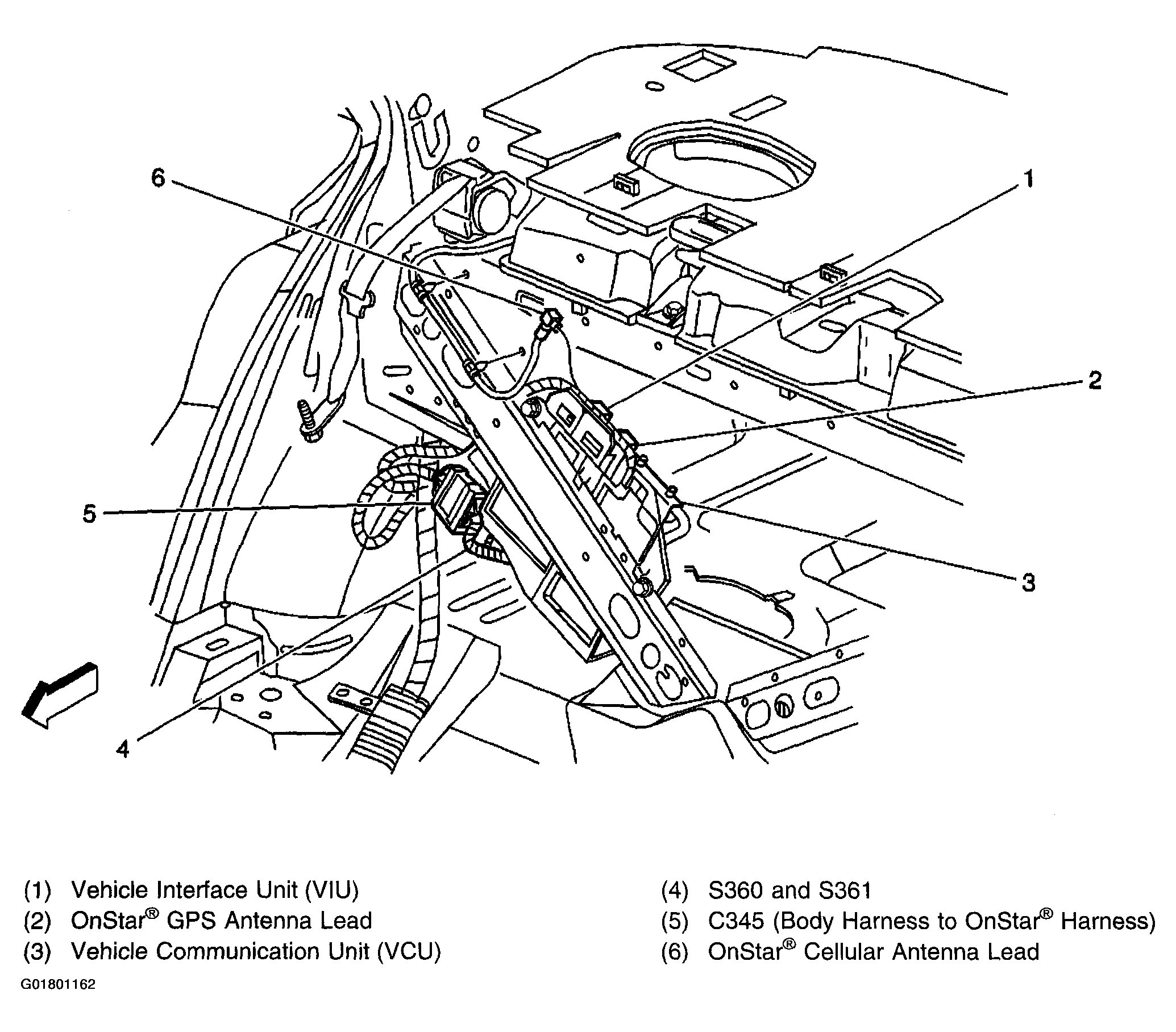

Fig 1: Rear Compartment, Behind the Rear Seat Back (w/UE1 RPO Code)

Courtesy of GENERAL MOTORS CORP.
