Lower Control Arm: Installation

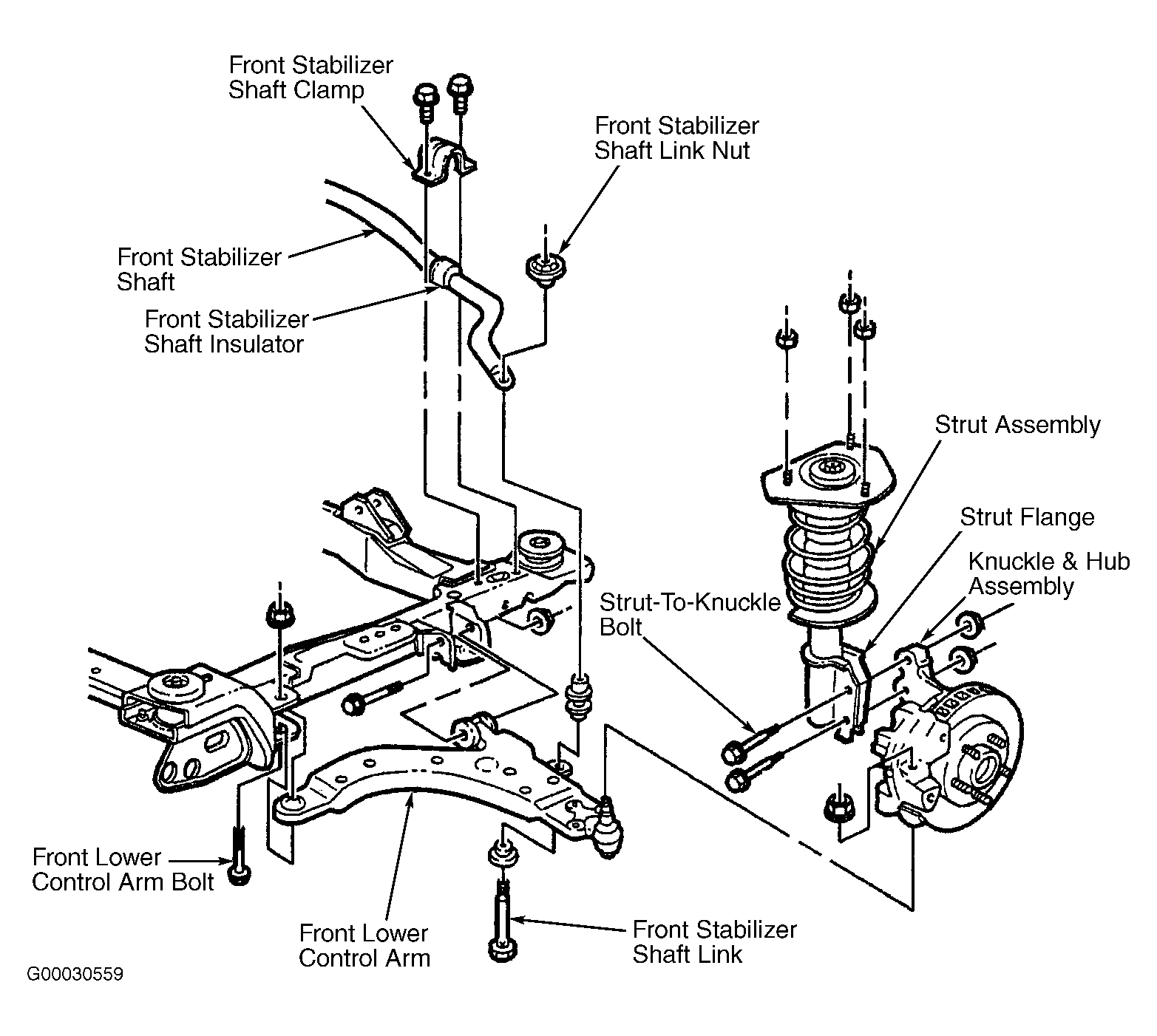

Reverse removal procedure. See Figure. Install NEW cotter pin. Install NEW lower control arm mounting nuts if they are rusty, or if they develop 27 INCH lbs. (3 N.m) of torque against counterpart prior to seating. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS .
