Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the data link connector to the instrument panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws to the data link connector.

    Tighten

    Tighten the data link connector screws to 2 N.m (18 lb in).

  3. Install the steering column filler. Refer to STEERING COLUMN FILLER REPLACEMENT in Instrument Panel, Gages, and Console.

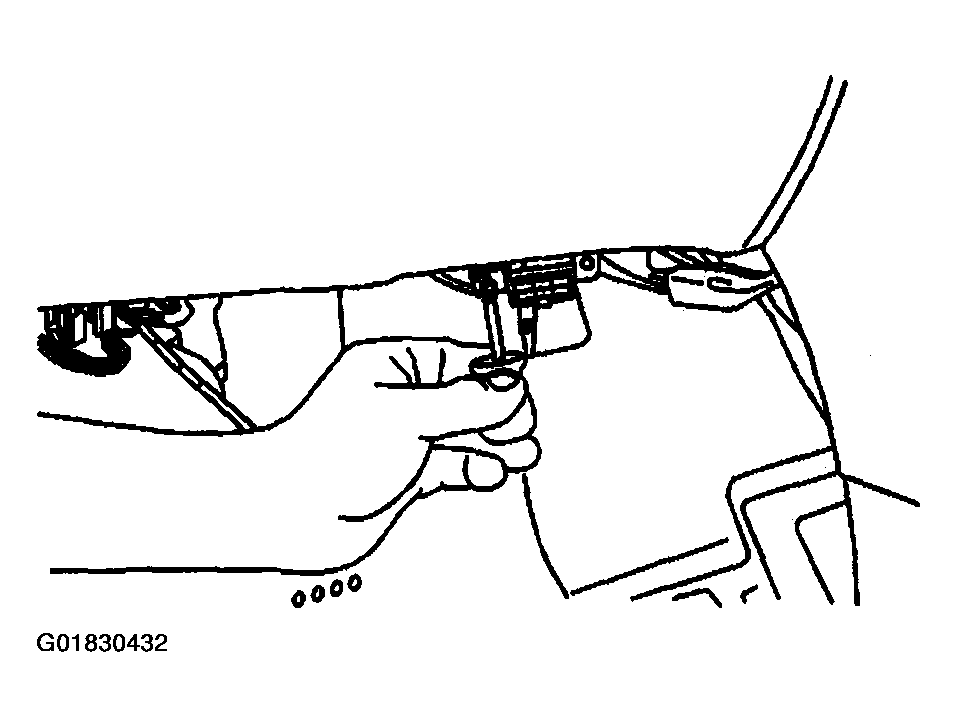

    Fig 1: Installing Steering Column Filler & Screws
    G01830432Courtesy of GENERAL MOTORS CORP.
