Data Link Communications Connector End Views

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

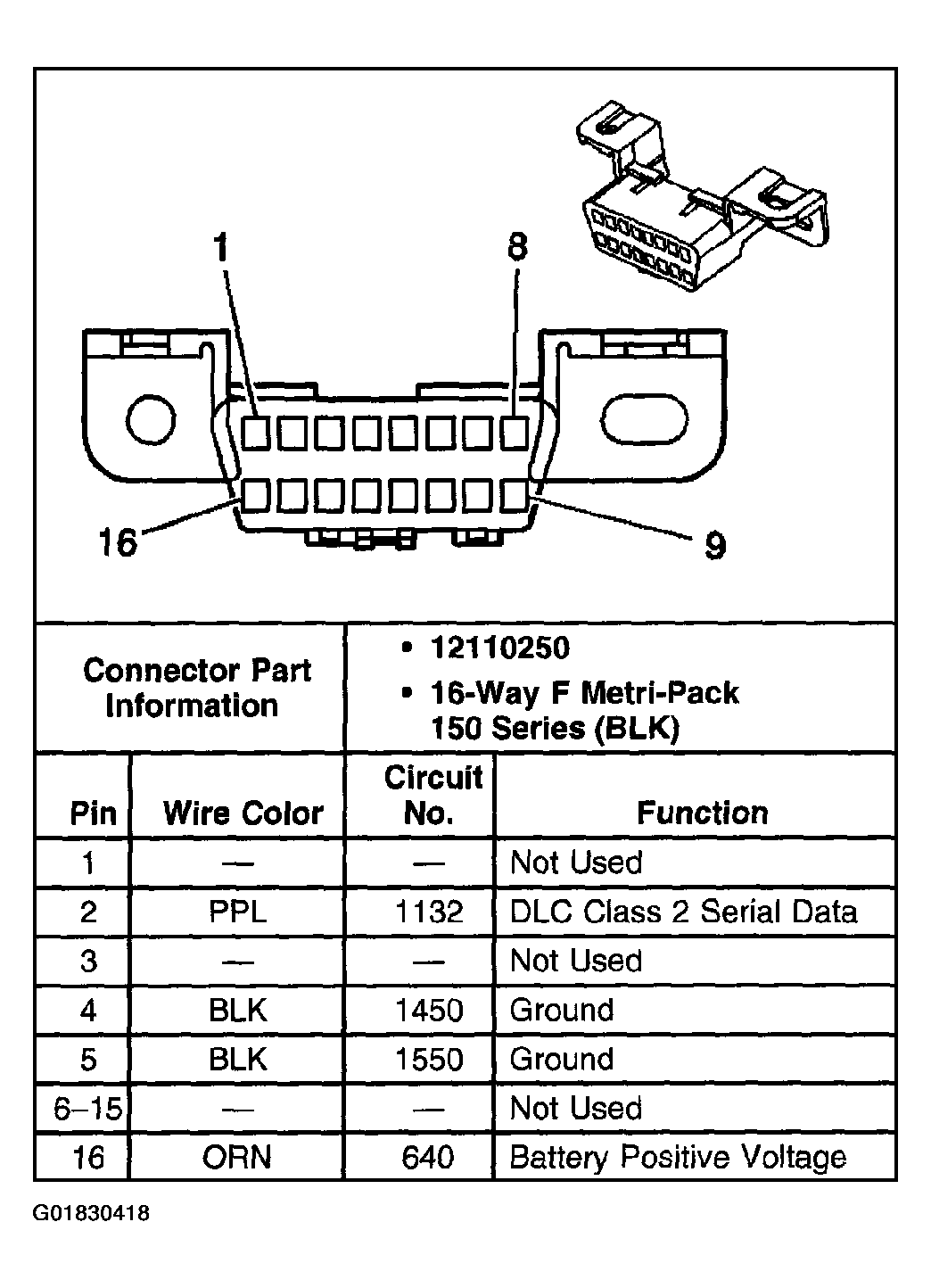

Fig 1: Data Link Connector End View (DLC)
G01830418Courtesy of GENERAL MOTORS CORP.

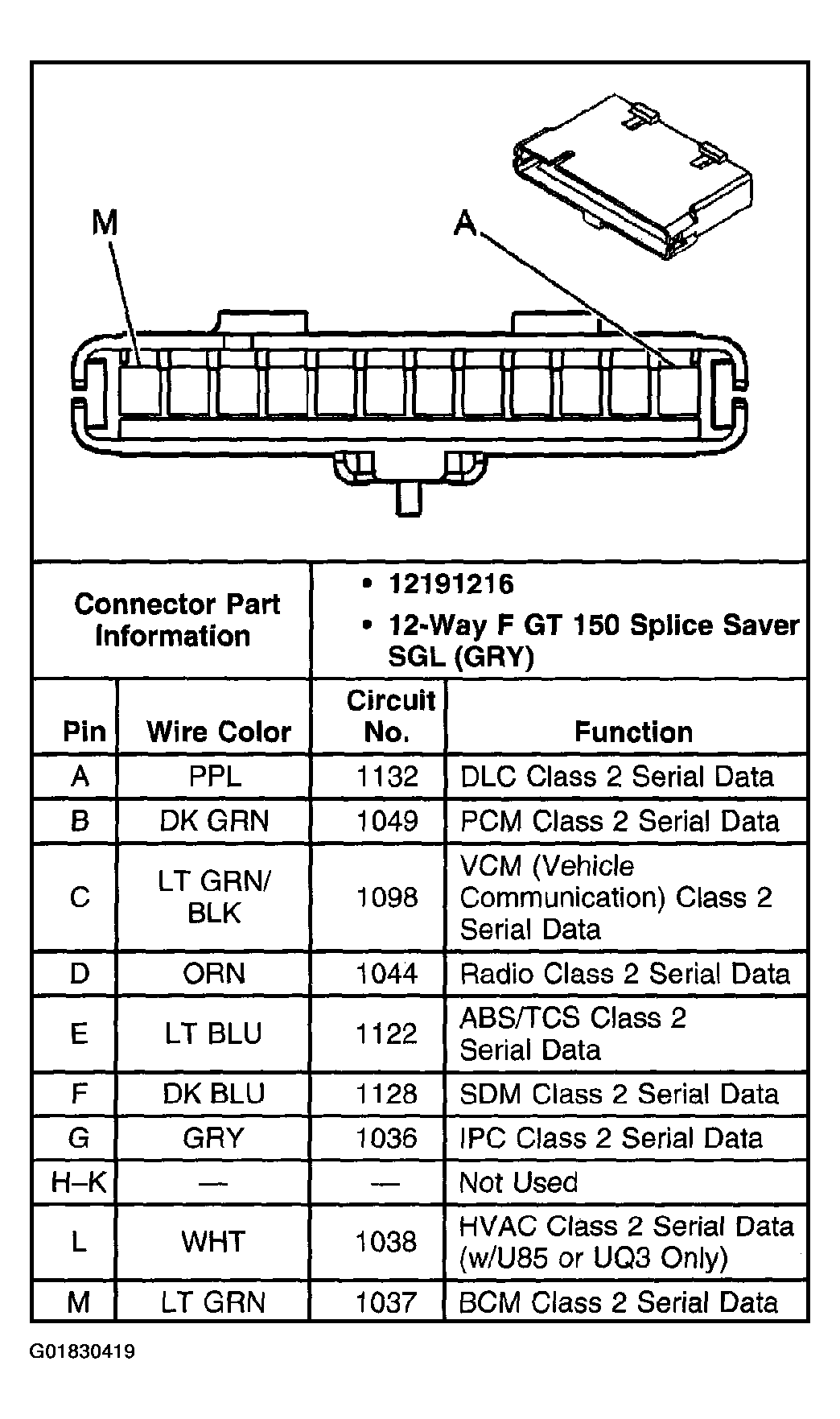

Fig 2: Splice Pack Connector End View
G01830419Courtesy of GENERAL MOTORS CORP.
