Data Link Communications Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

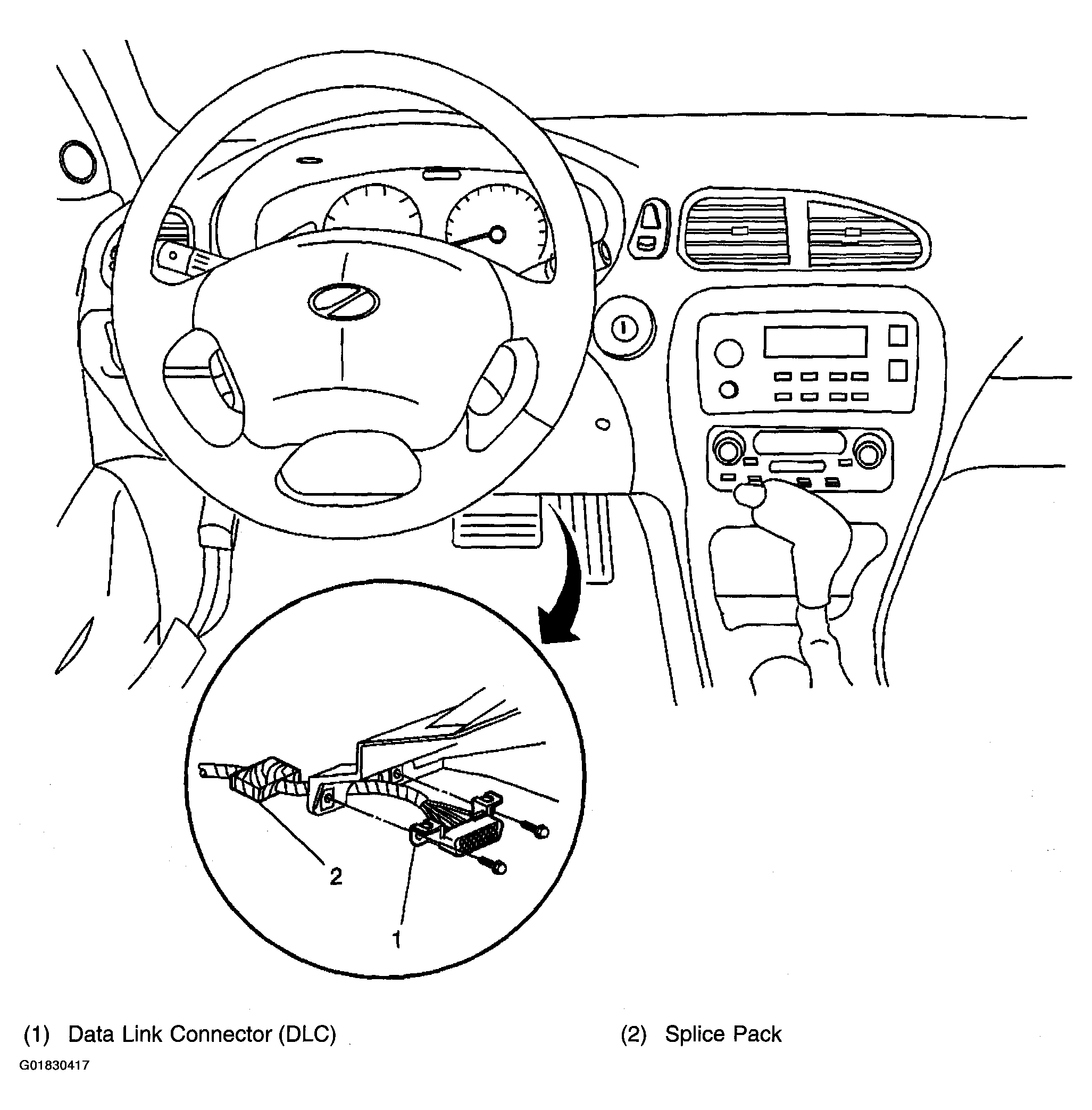

Fig 1: Below Instrument Panel, Right of Steering Column
G01830417Courtesy of GENERAL MOTORS CORP.
