ABS Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

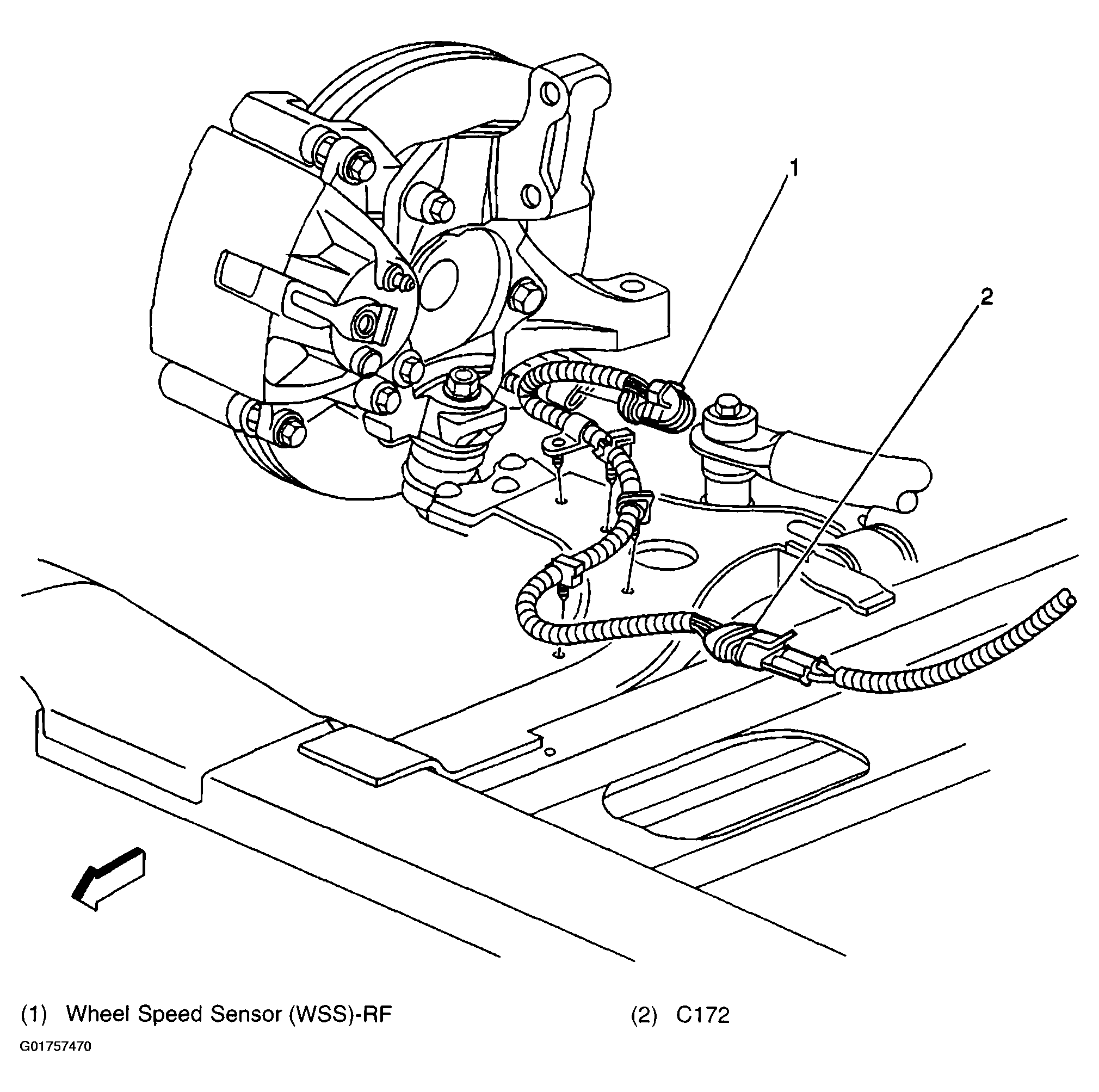

Fig 1: Right Front Suspension (Left Front Similar)

Courtesy of GENERAL MOTORS CORP.

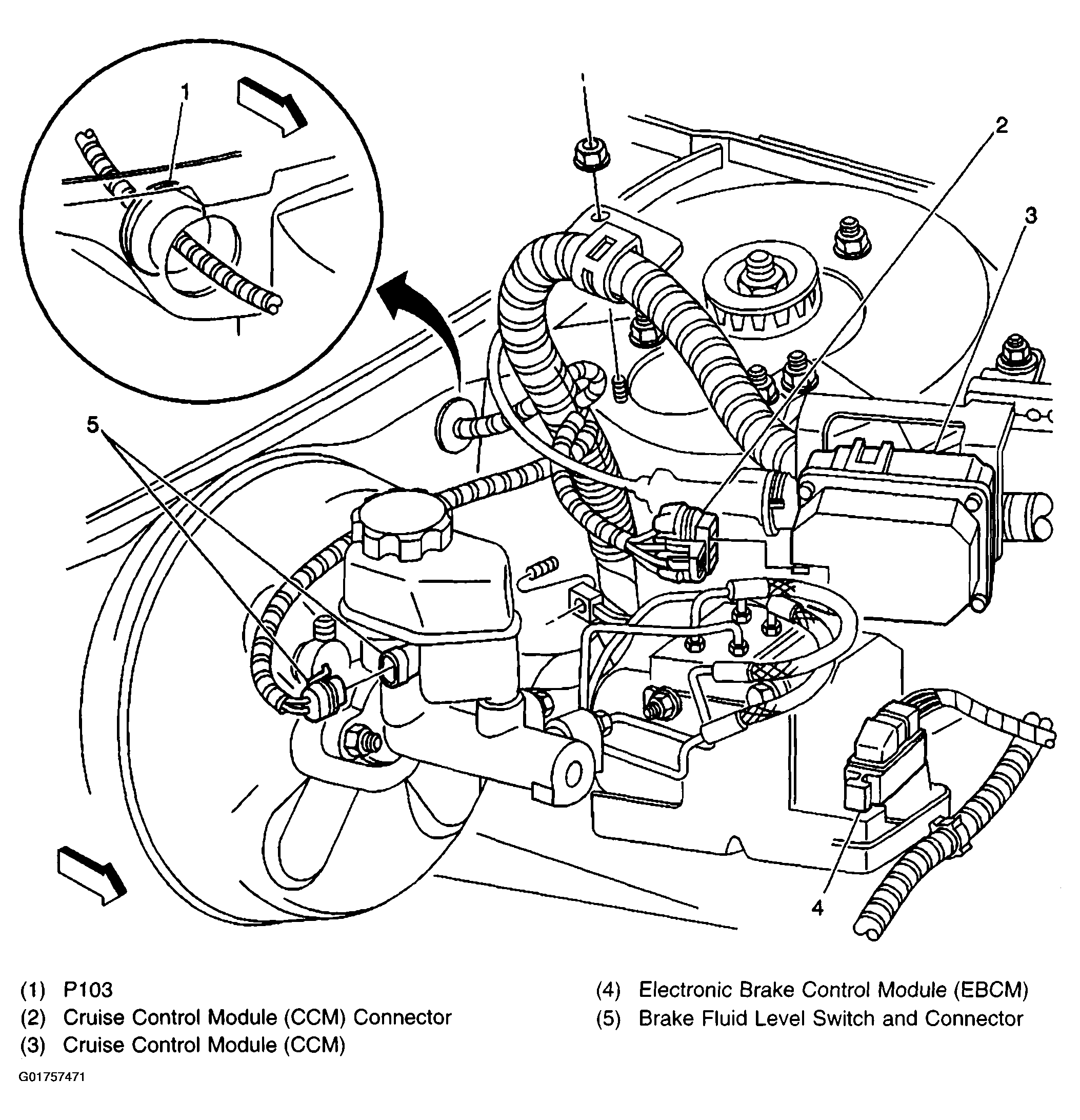

Fig 2: Upper Left Rear of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

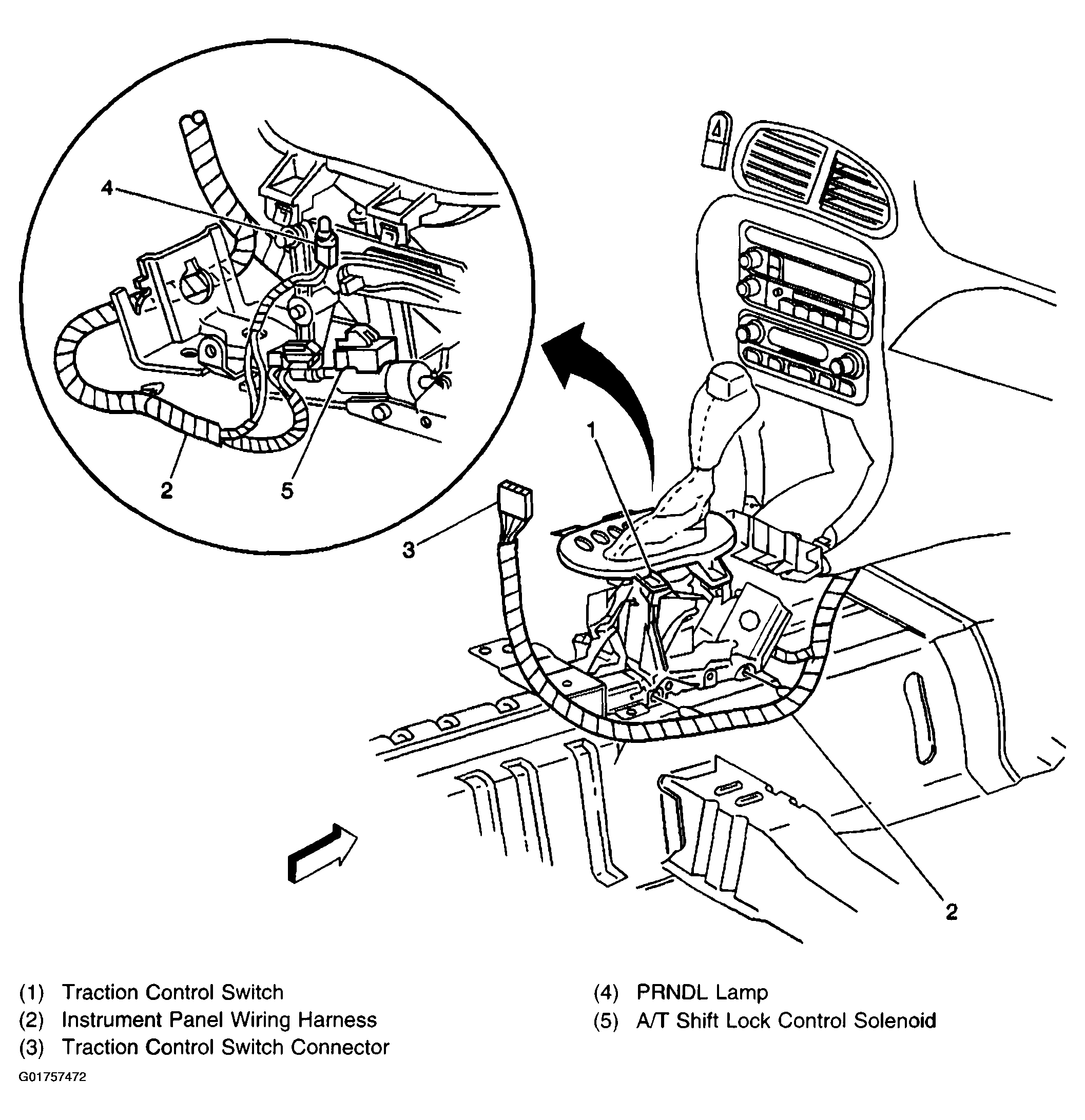

Fig 3: Front Center of Floor

Courtesy of GENERAL MOTORS CORP.

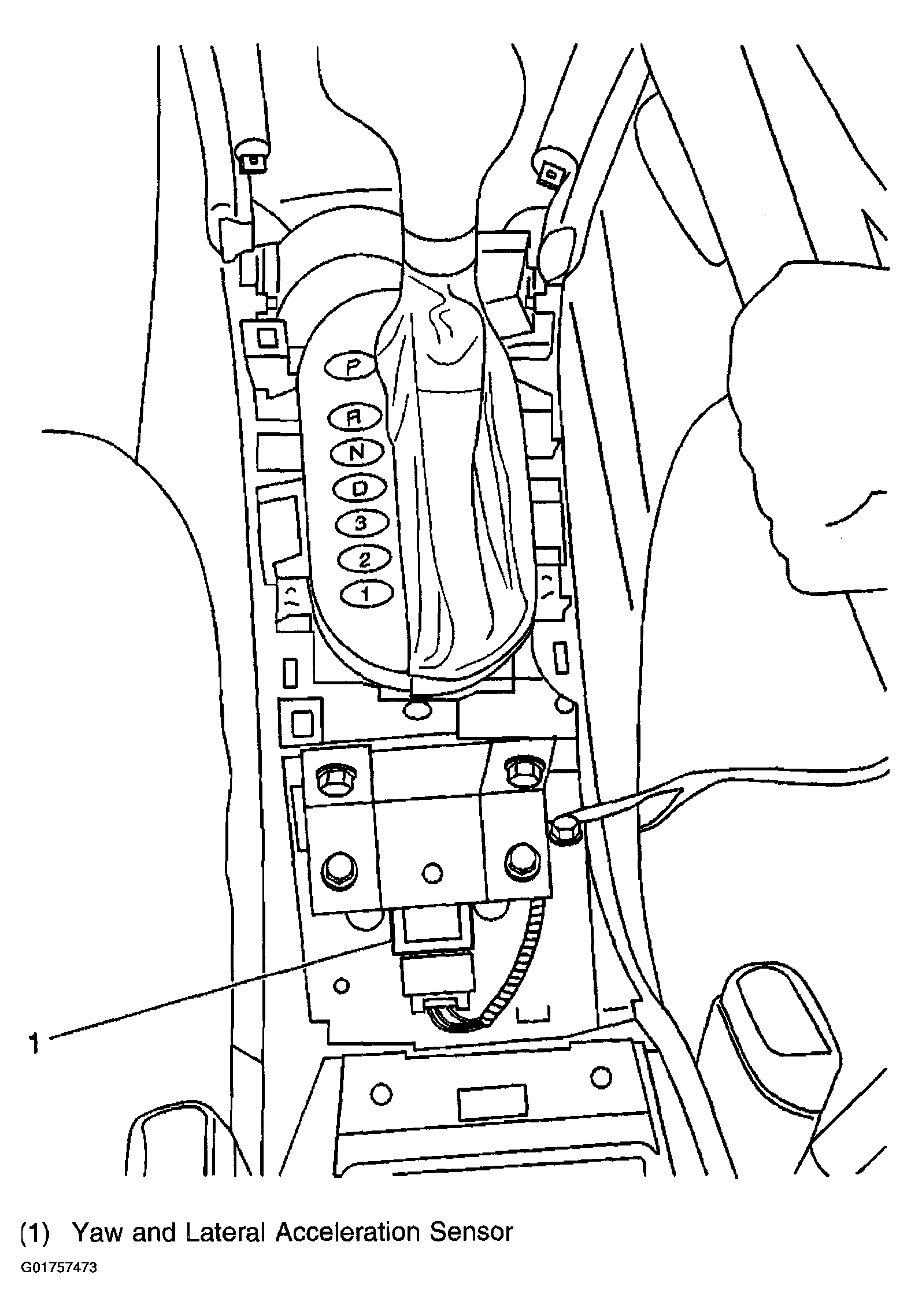

Fig 4: Inside Center Console

Courtesy of GENERAL MOTORS CORP.

Fig 5: Right Rear Suspension (Left Rear Similar)

Courtesy of GENERAL MOTORS CORP.
