Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery insulator to the battery.

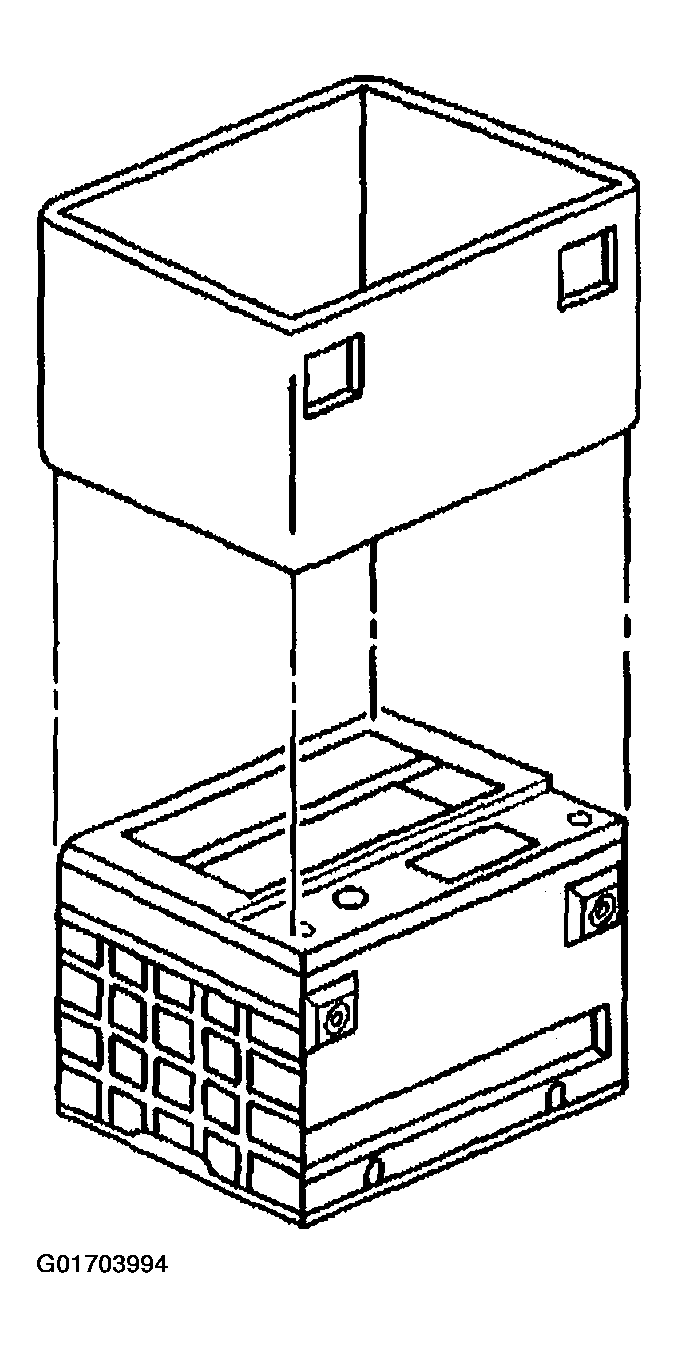

    Fig 1: Battery Insulator
    G01703994Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not tip the battery more than 40 degrees during installation.
  2. Install the battery (3).
  3. Install the battery hold down retainer (2).
    NOTE: Refer to FASTENER NOTICE .
  4. Install the battery hold down retainer bolt (1).

    Tighten

    Tighten the battery hold down retainer bolt to 18 N.m (13 lb ft).

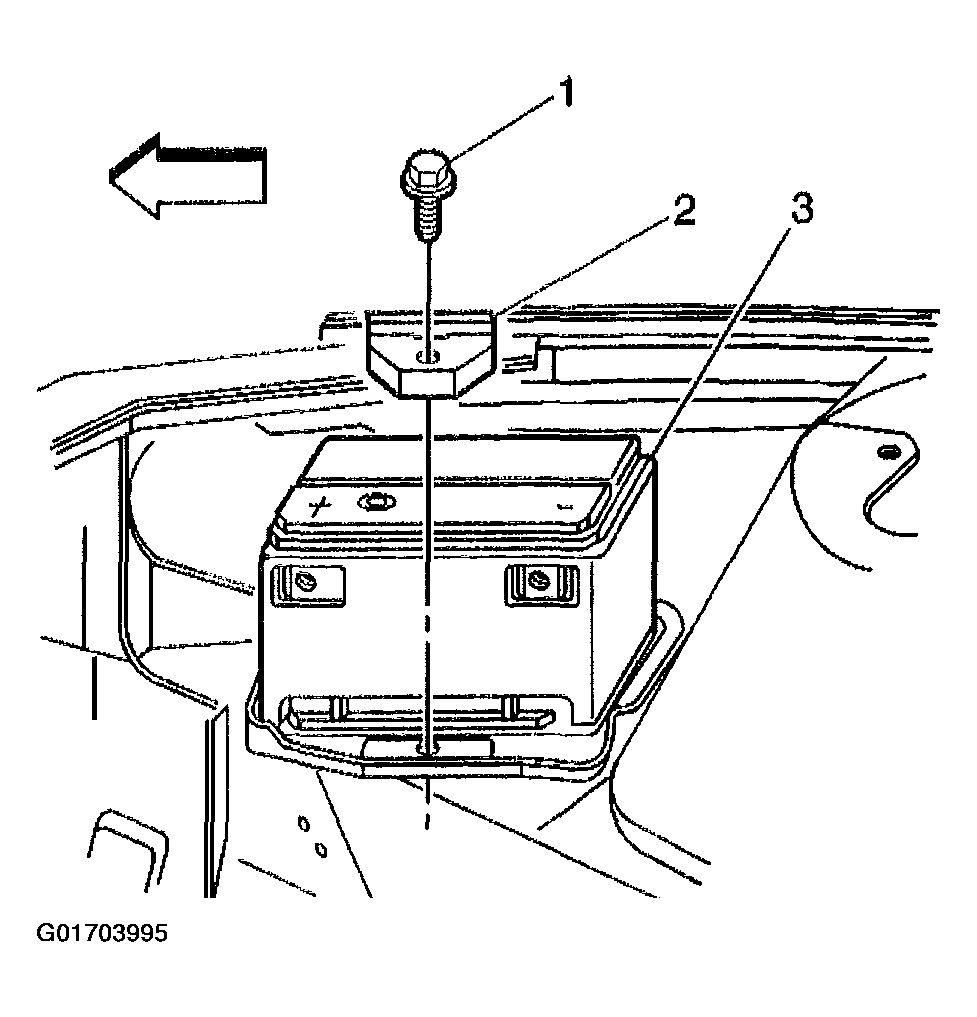

    Fig 2: Battery, Hold Down Retainer & Bolt
    G01703995Courtesy of GENERAL MOTORS CORP.
  5. Connect the positive battery cable to the battery.

    Tighten

    Tighten the positive battery cable bolt to 15 N.m (11 lb ft).

  6. Install the right front diagonal brace. Refer to BRACE REPLACEMENT -- SHEET METAL DIAGONAL .
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .

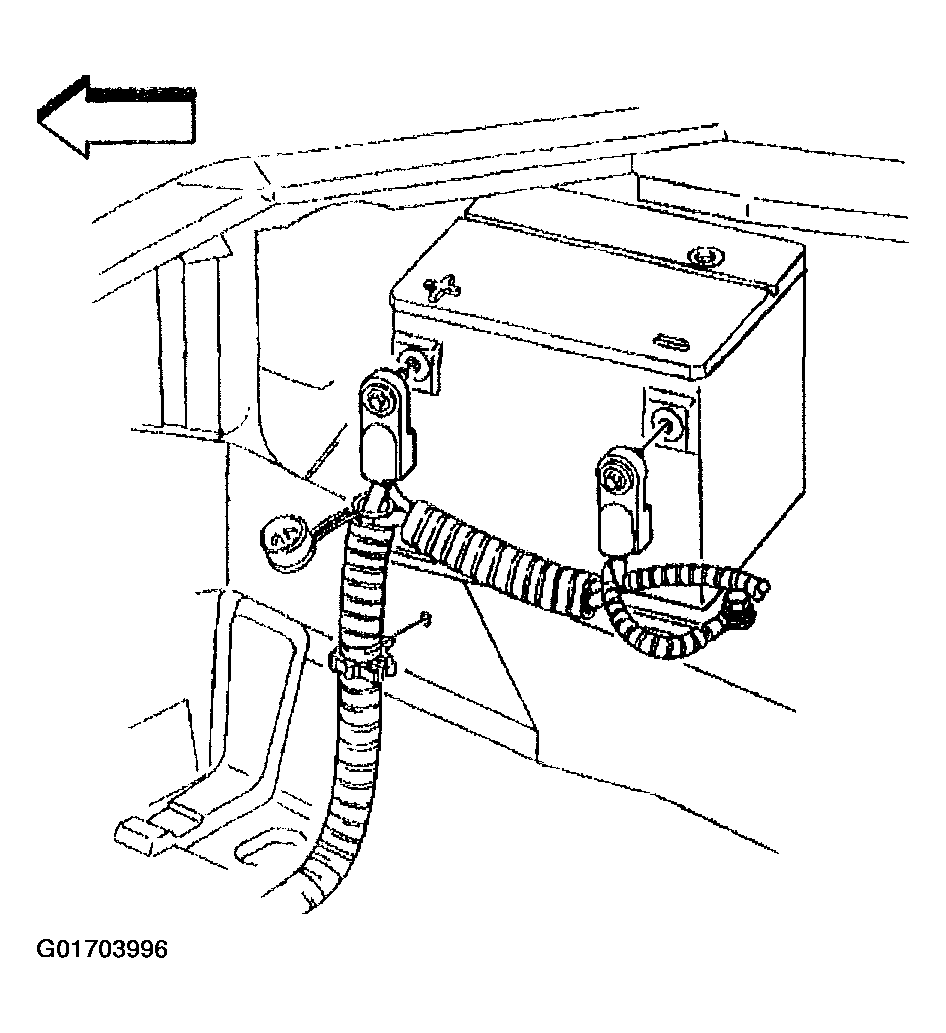

    Fig 3: Battery & Cables
    G01703996Courtesy of GENERAL MOTORS CORP.
