Checking and Adding Power Steering Fluid

NOTE: When adding fluid or making a complete fluid change, always use the proper fluid. Failure to use the proper fluid will cause hose and seal damage and fluid leaks. Refer to RECOMMENDED FLUID .

Always use the proper quantity of the following fluids:

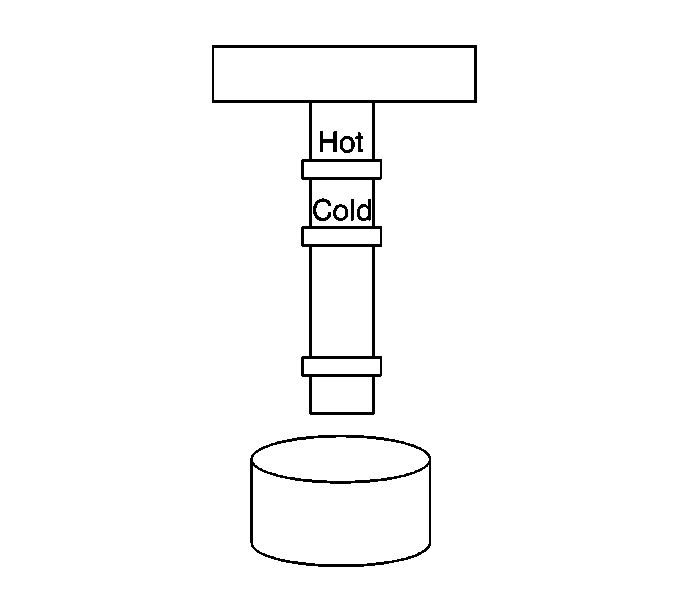

Fig 1: Identifying Power Steering Fluid Level Indicator Marks

Courtesy of GENERAL MOTORS CORPS.

.47 L (16 oz) of GM P/N 1052884
.95 L (32 oz) of GM P/N 1050017
Refer to RECOMMENDED FLUID .

There is a power steering fluid level indicator attached to the power steering fluid reservoir cap. The marks on the power steering fluid level indicator, indicate the power steering fluid level.

Power steering fluid that is warmed up has the following characteristics:
The fluid is hot to the touch. The temperature is approximately 66°C (150°F).
The fluid should be between the HOT and the COLD marks.
Fluid that is cool has the following characteristics:
The temperature is approximately 21°C (70°F).
Ensure the power steering fluid level is between the ADD and the COLD marks.
