Power Windows System Check

Perform actions listed in POWER WINDOWS SYSTEM CHECK table. See Fig 1 . If abnormal results exist, refer to appropriate symptom in system tests. See SYSTEM TESTS  .

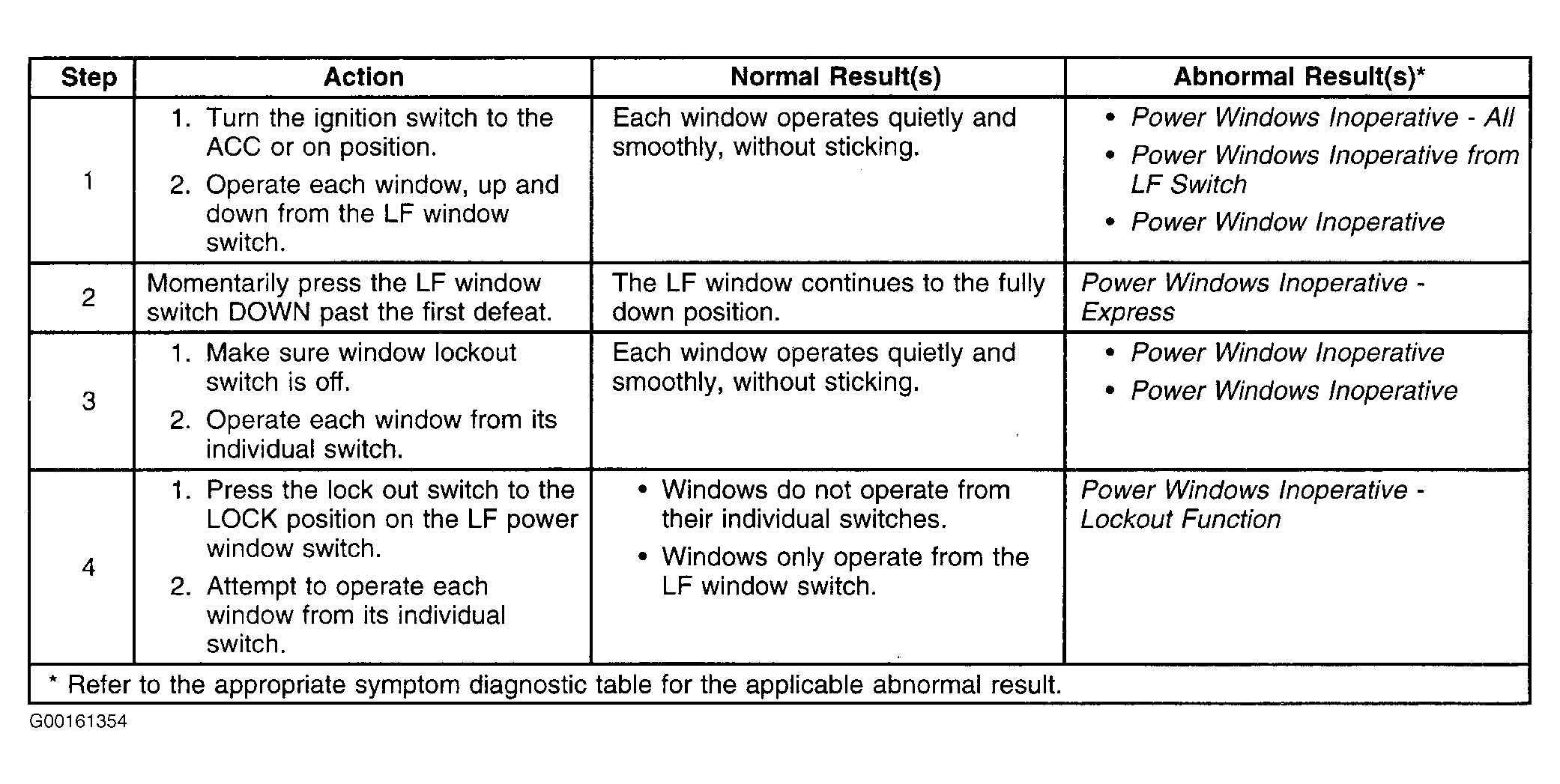

Fig 1: Power Windows System Check

Courtesy of GENERAL MOTORS CORP.
