Installation (Front)

  1. Install the water deflector to the door inner panel. See Fig 1 .
  2. Use a roller around the periphery of the deflector to ensure the proper seating.
  3. Install the front door radio speaker. See SPEAKER  .
  4. Install the trim panel. See DOOR TRIM PANEL  .

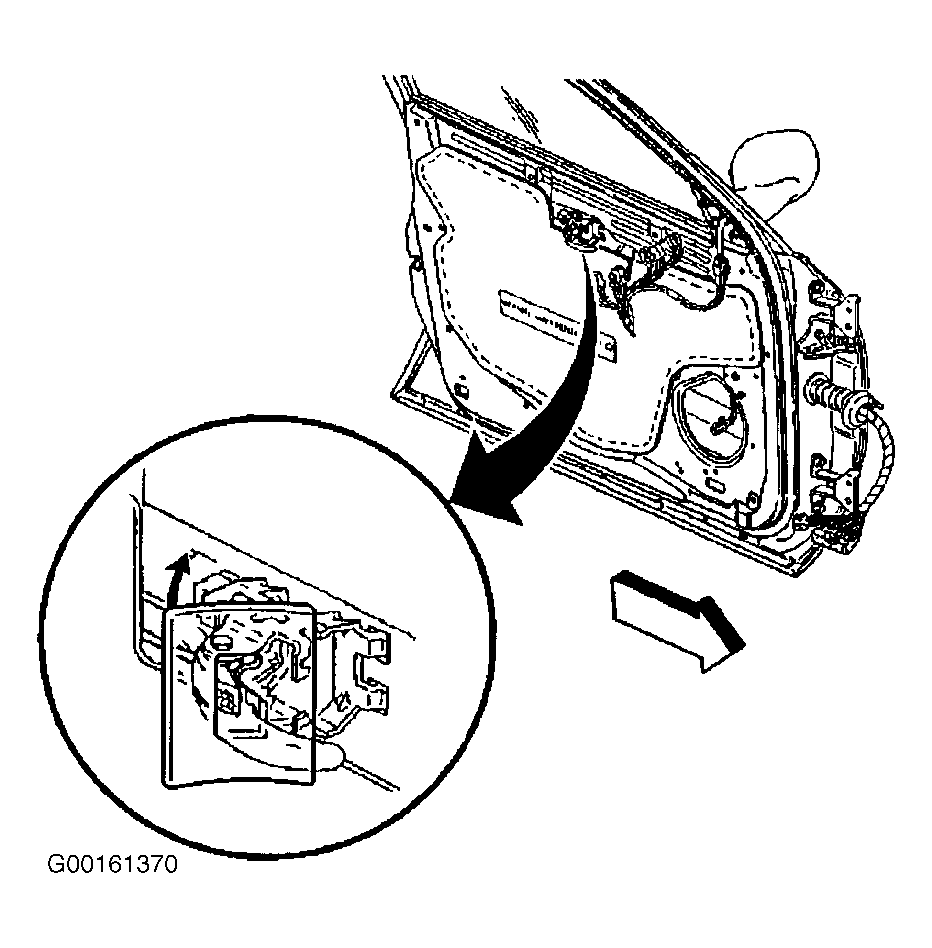

Fig 1: Removing Front Door Water Deflector
G00161370Courtesy of GENERAL MOTORS CORP.
