Removal & Installation: Speaker: Installation

1. Connect the electrical connector.
2. Install the front door speaker to the front door. See Fig 1 .
3. Install the screws to the front door speaker. Tighten the front door speaker screws to 18 INCH lbs. (2 N.m).
4. Install the front door inner trim panel. See DOOR TRIM PANEL  .

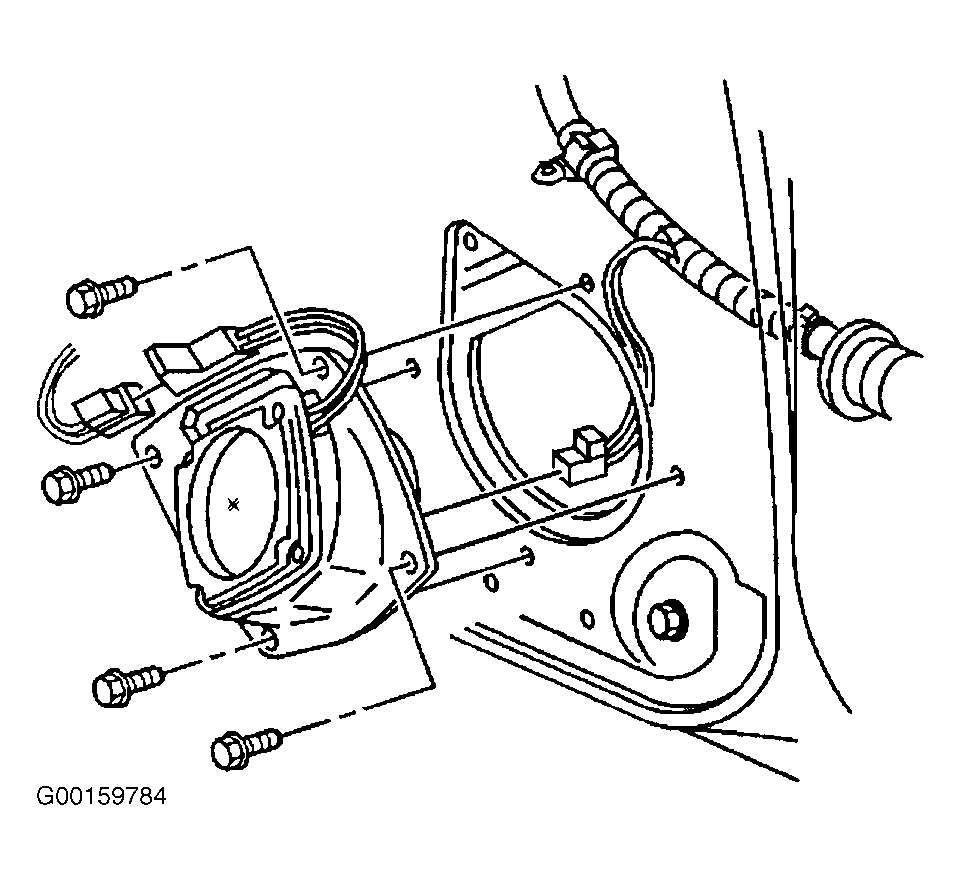

Fig 1: Removing Front Door Speaker

Courtesy of GENERAL MOTORS CORP.
