Test E: Rear Release Inoperative With Transmitter

To perform test, see Fig 1 .

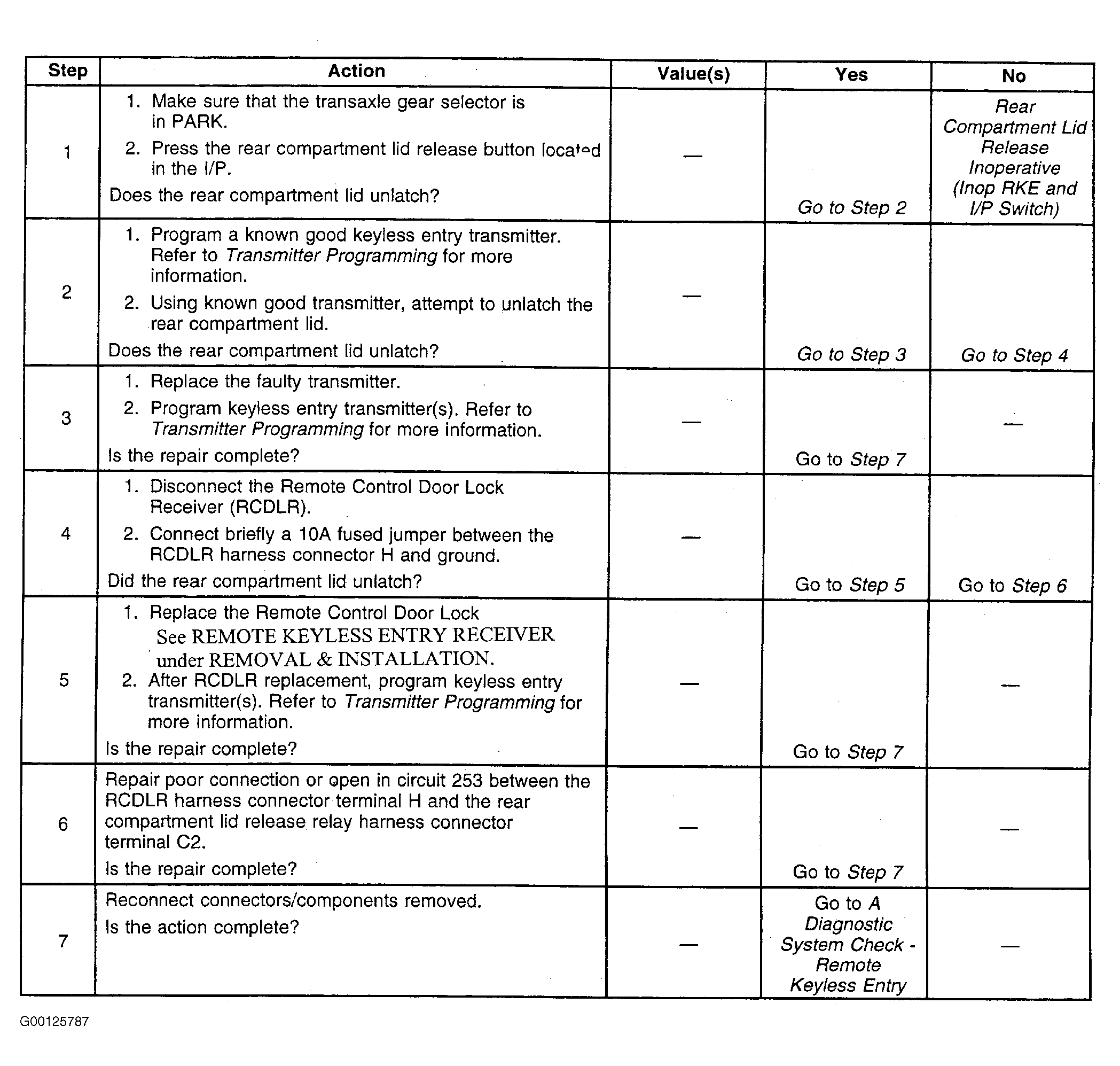

Fig 1: Rear Release Inoperative With Transmitter
G00125787Courtesy of GENERAL MOTORS CORP.
