Rear Compartment Lid Release System Check

To check rear compartment lid release system operation, perform rear compartment lid release diagnostic system check. See . If rear compartment lid release system does not operate as specified, diagnose by symptom. Perform appropriate test. See SYSTEM TESTS  .

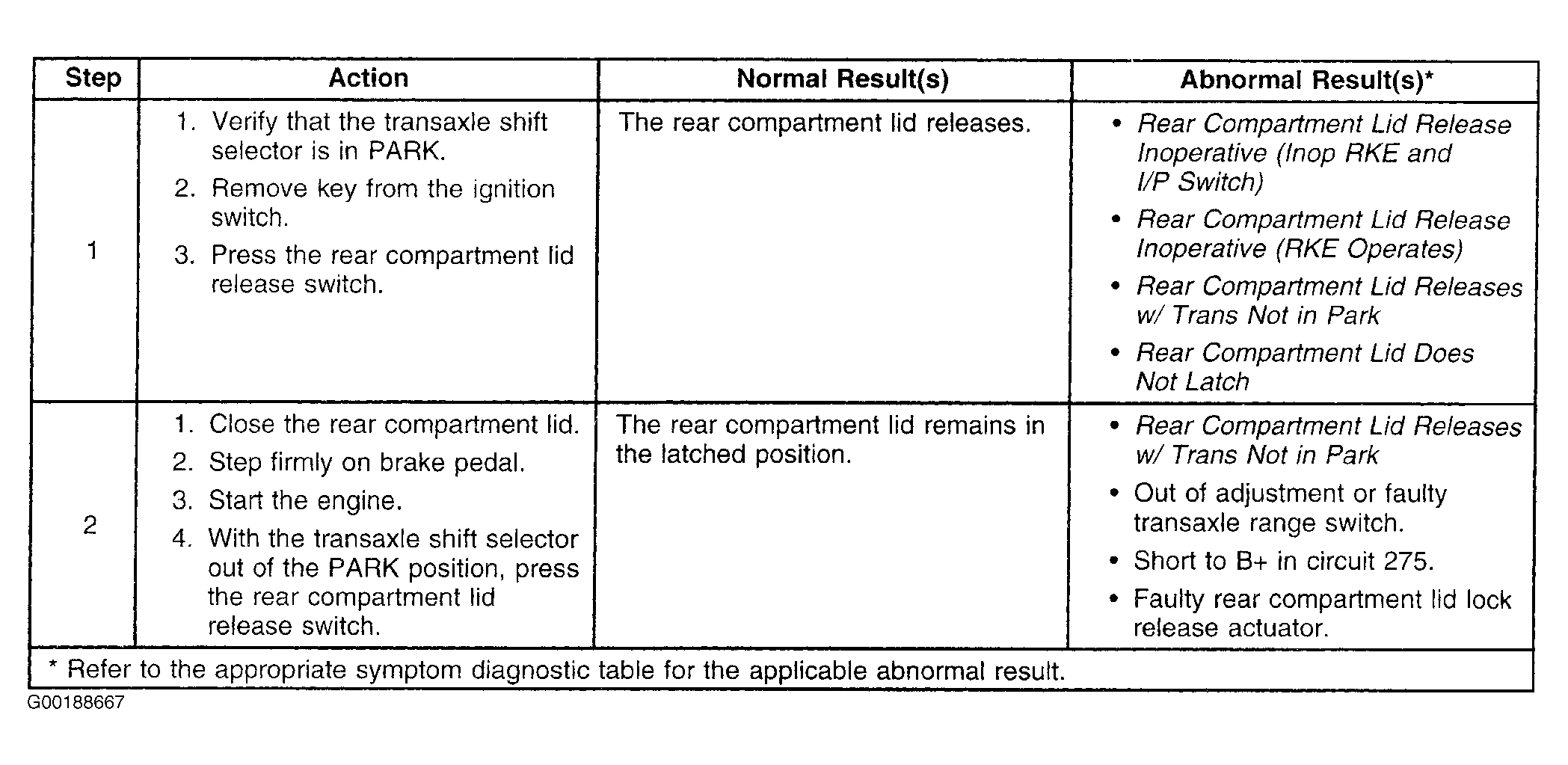

Fig 1: Checking Rear Compartment Lid Release System
G00188667Courtesy of GENERAL MOTORS CORP.
