Test K: Lock Function Inoperative (One Switch)

For test procedure, refer to illustration. See Fig 1 .

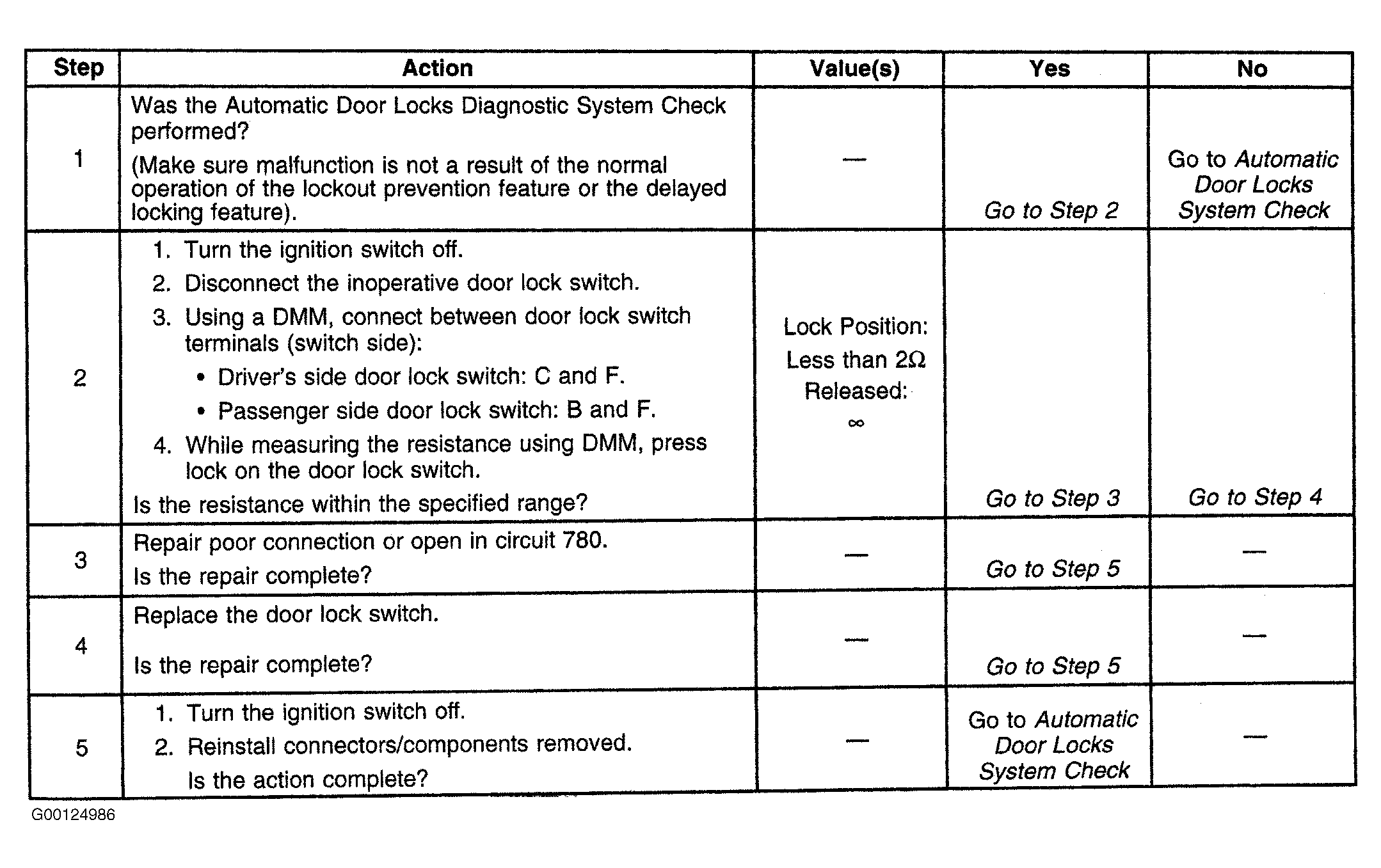

Fig 1: Test K: Lock Function Inoperative (One Switch)
G00124986Courtesy of GENERAL MOTORS CORP.
