Removal (Rear)

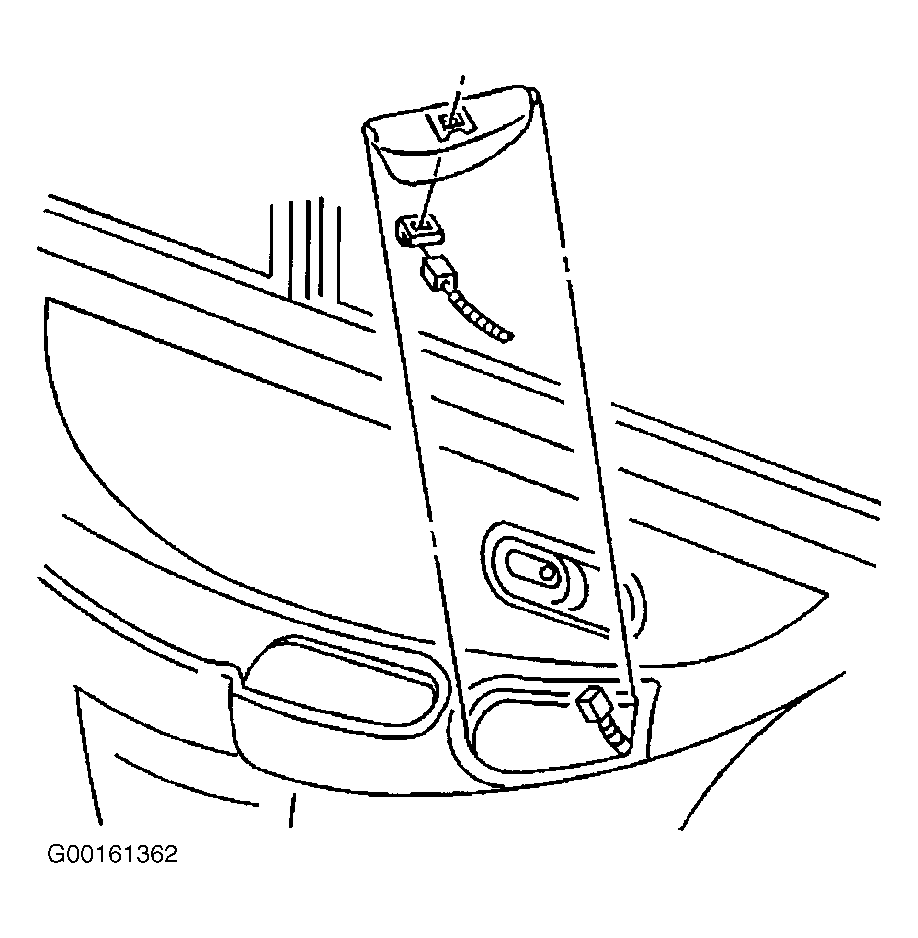

  1. Remove the power window/power door lock switch mounting plate using a small flat-blade tool. Insert the tool at the rear of the switch mounting plate releasing the switch plate retainer. See Figure .
  2. Lift the rear of the switch plate.
  3. Disconnect the electrical connectors.
  4. Remove the switch from the mounting plate.
