Installation (Front)

  1. Connect the electrical connectors.
  2. Install the switch to the mounting plate. Press the switch down until fully seated. See Fig 2 .
  3. Insert the front of the mounting plate into the trim panel. See Fig 1 .
  4. Press down on the rear of the mounting plate until the plate is fully seated.

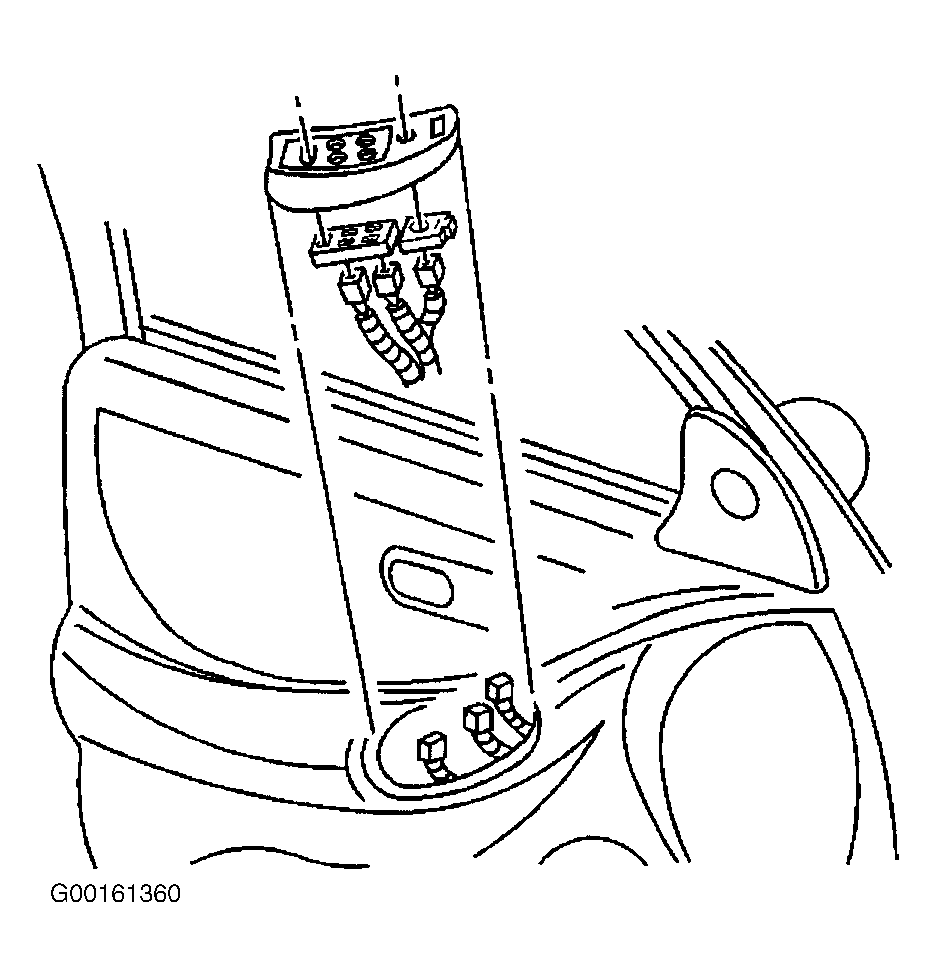

Fig 1: Removing Power Window Switch Plate From Door
G00161360Courtesy of GENERAL MOTORS CORP.

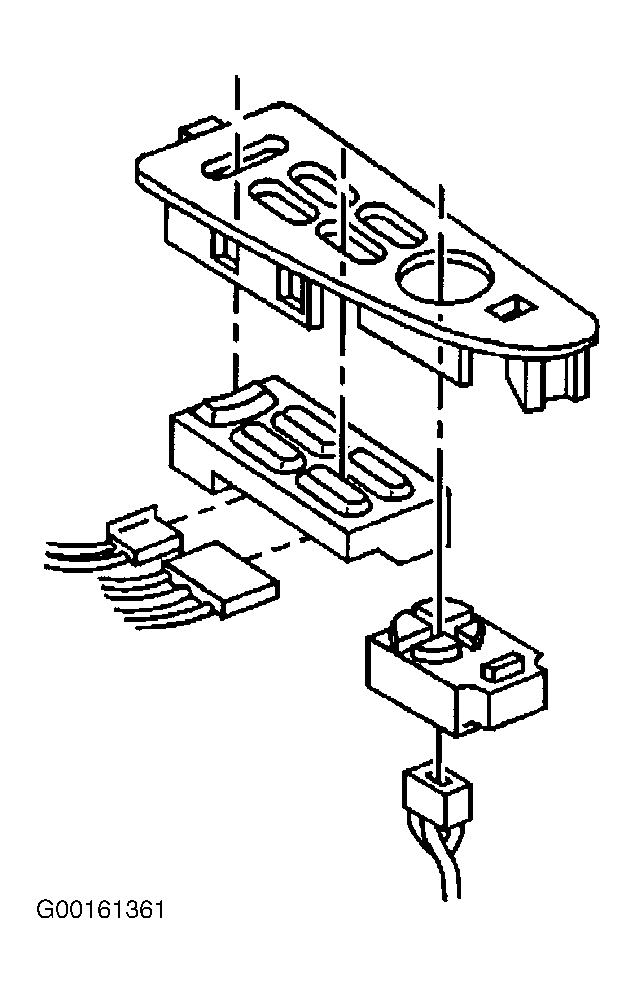

Fig 2: Removing Power Window Switch From Switch Plate
G00161361Courtesy of GENERAL MOTORS CORP.
