Water Deflector: Installation

  1. Install the water deflector. See Fig 1 .
  2. Align the hook pockets with the trim hook holes in the inner panel.
  3. Use a roller around periphery of the water deflector to ensure proper seating of the adhesive.
  4. Install the trim panel. See DOOR TRIM PANEL  .

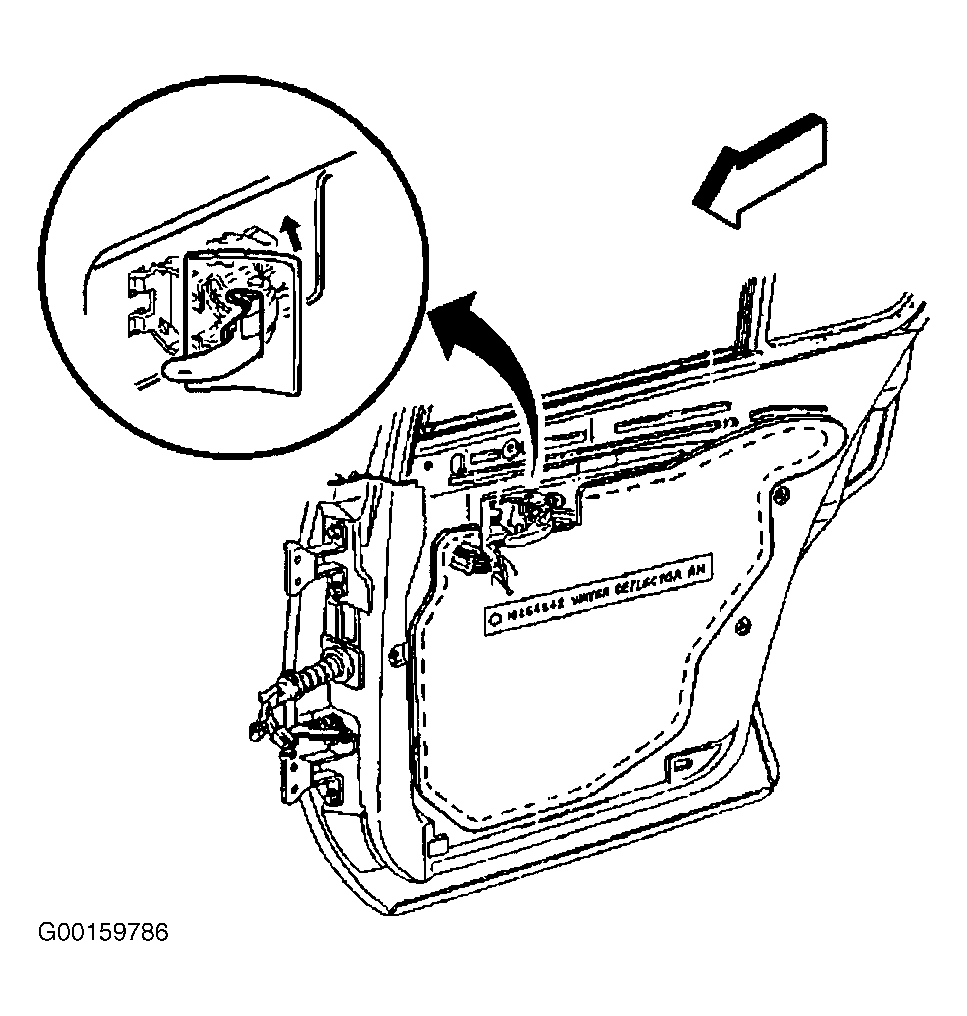

Fig 1: Removing Rear Door Panel Water Deflector
G00159786Courtesy of GENERAL MOTORS CORP.
