Wiring Diagrams

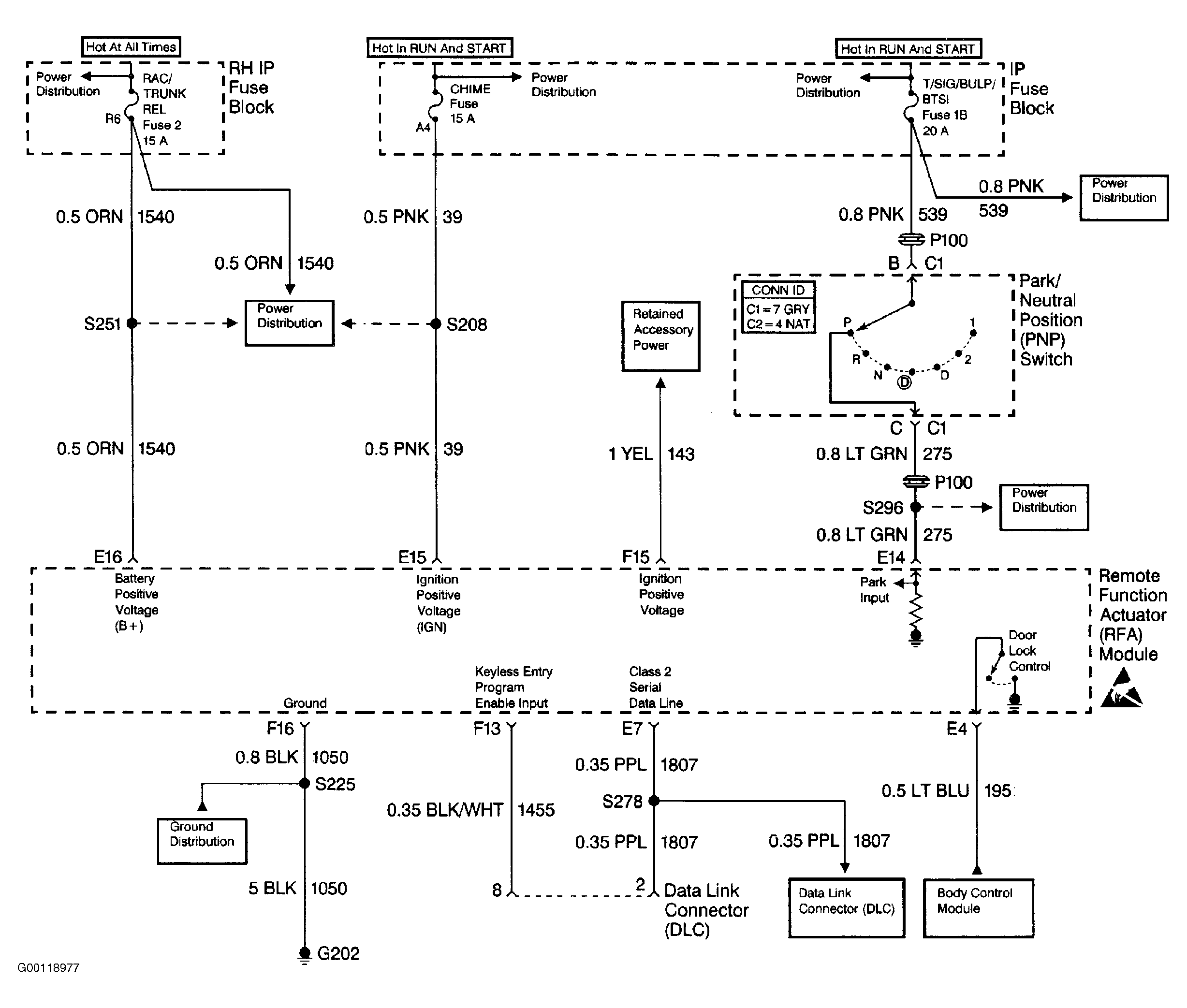

Fig 1: Remote Keyless Entry System Wiring Diagram (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

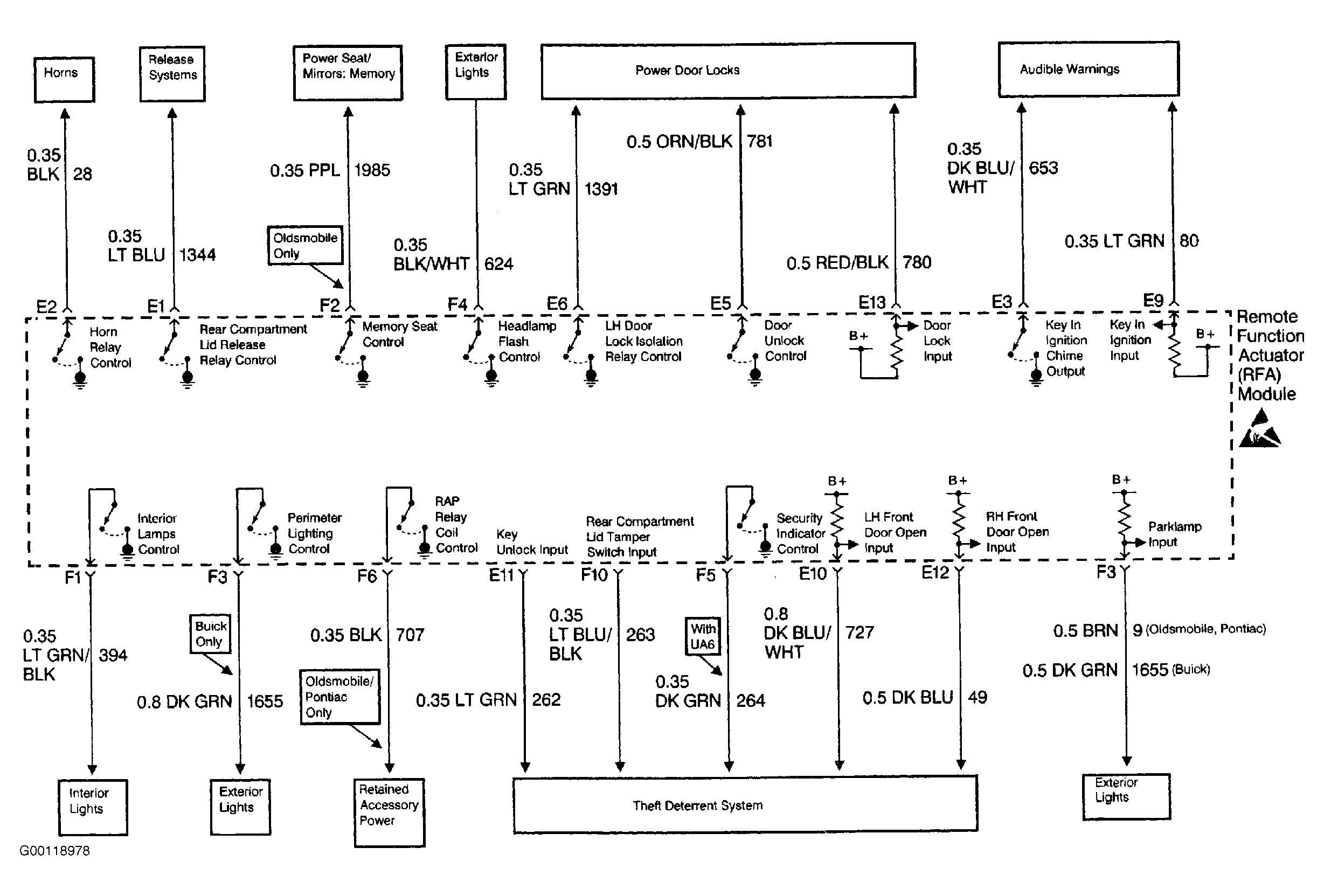

Fig 2: Remote Keyless Entry System Wiring Diagram (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
