Test D: Panic Mode Inoperative

For test procedure, refer to illustration. See Fig 1 .

NOTE: POWER DOOR LOCKS SYSTEM CHECK is located in POWER DOOR LOCKS article.

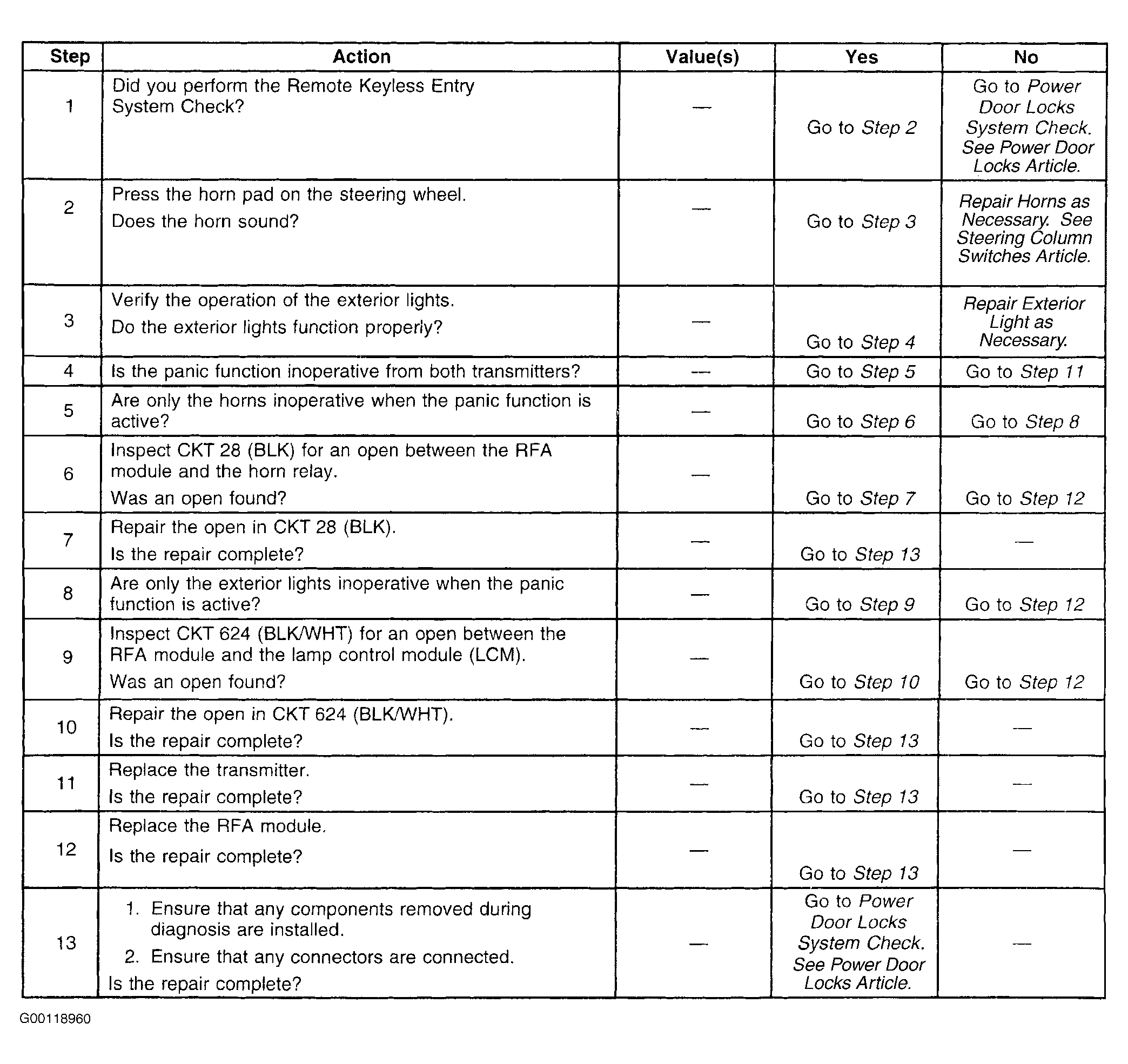

Fig 1: Test D: Panic Mode Inoperative

Courtesy of GENERAL MOTORS CORP.
