Test C: Only Panic Mode Operates With Transmitter

For test procedure, refer to illustration. See Fig 1 .

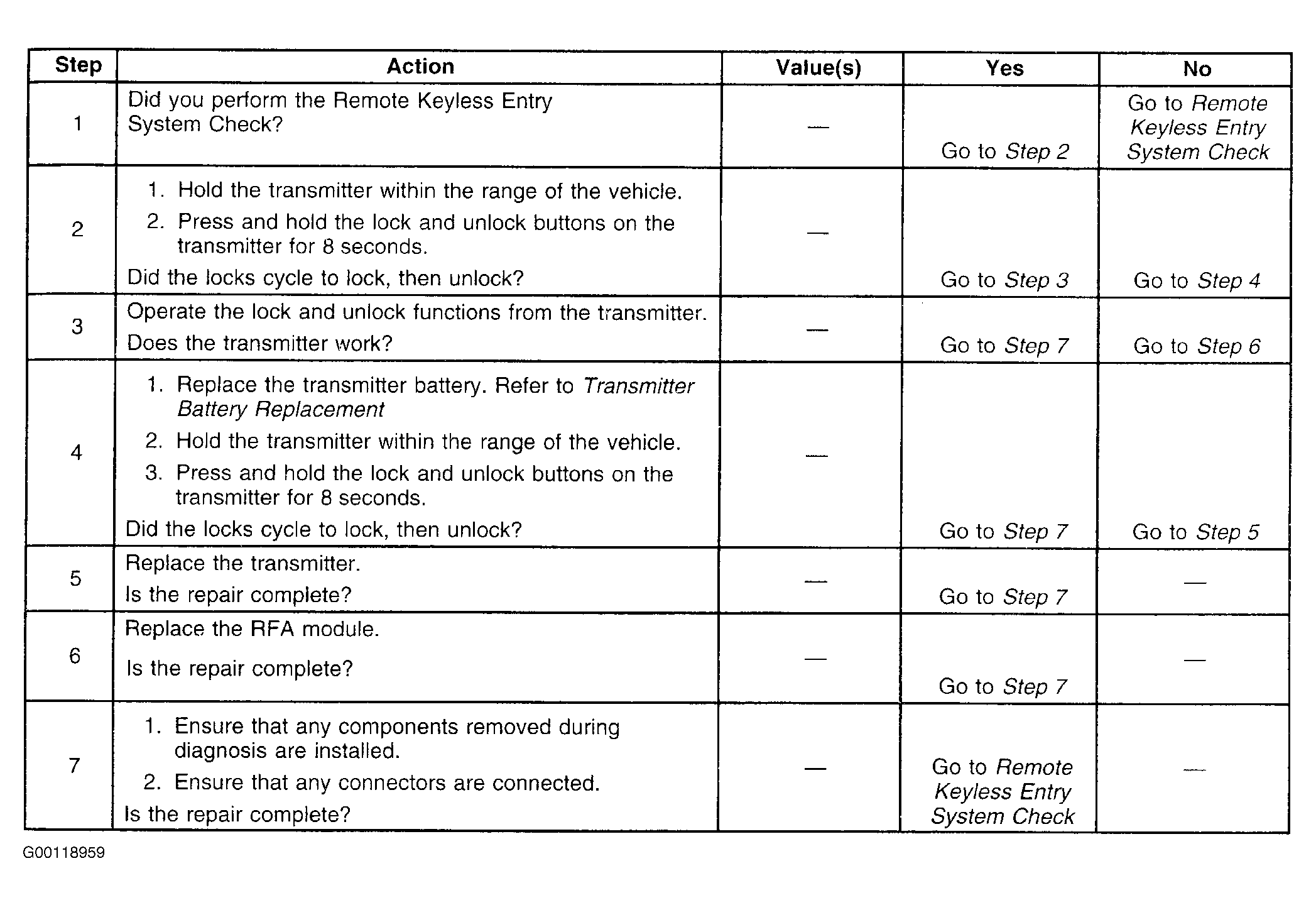

Fig 1: Test C: Only Panic Mode Operates With Transmitter
G00118959Courtesy of GENERAL MOTORS CORP.
