Transmitter Battery: Removal

  1. Insert a small coin between the 2 halves of the transmitter case at the slot provided near the key ring hole. See Fig 1 .
  2. Twist the coin in order to open the case.
  3. Open the transmitter case.
  4. Remove the battery. See Fig 2 .
Fig 1: Opening Transmitter Case
G00118972Courtesy of GENERAL MOTORS CORP.

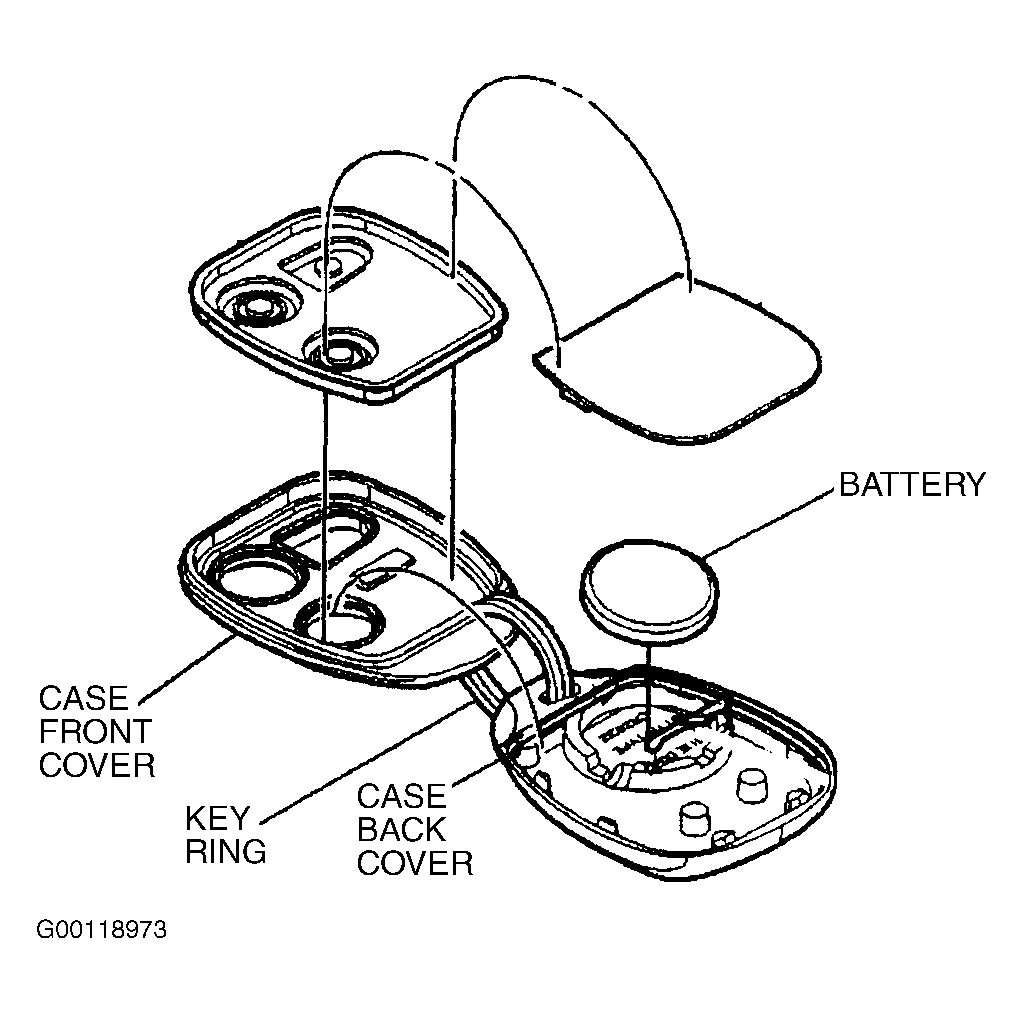

Fig 2: Removing Transmitter Battery
G00118973Courtesy of GENERAL MOTORS CORP.
