Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Fusible Link (2.4L VIN T) Near starter.
Left I/P Junction Block On left end of dash.
Power Seats Circuit Breaker On left I/P junction block.
Power Windows Circuit Breaker On right I/P junction block.

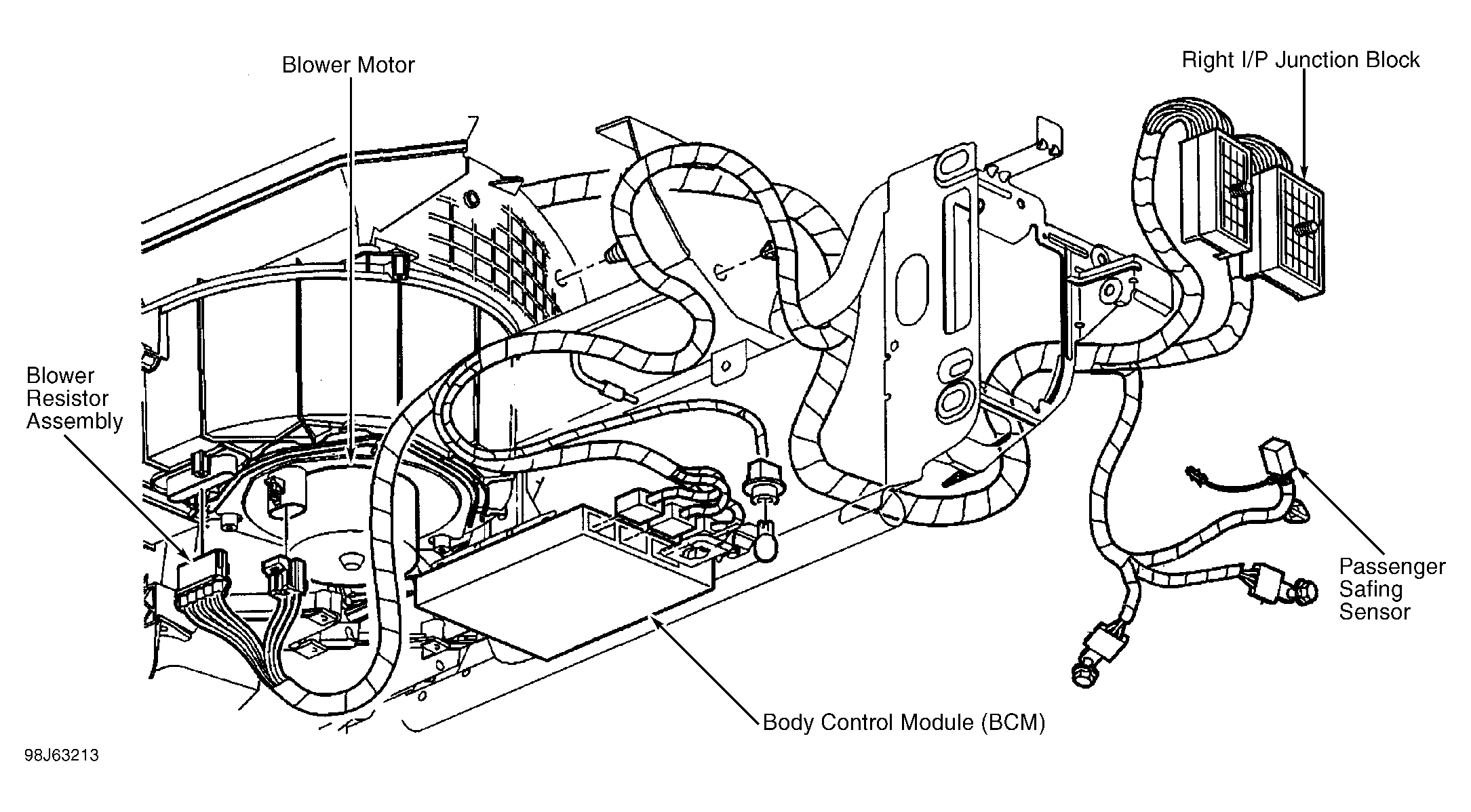

Right I/P Junction Block On right end of dash. See Figure.
Underhood Junction Block On left side of engine compartment.
