Installation Procedure

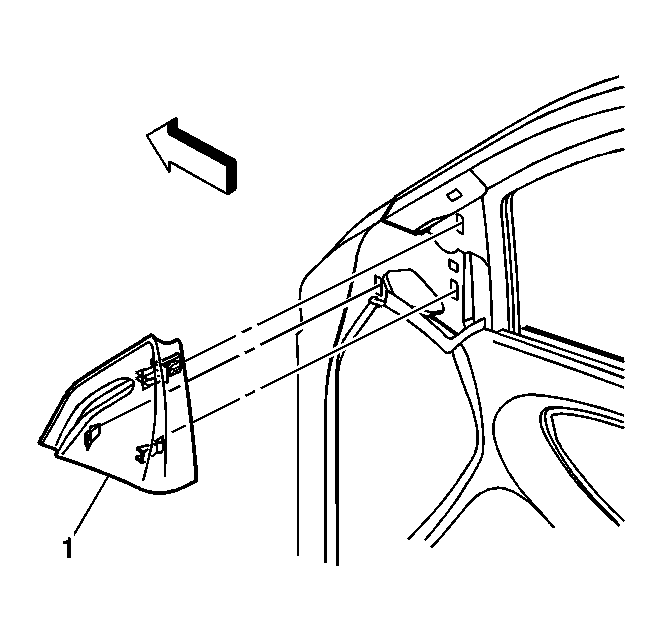

Fig 1: View of Front Door Upper Trim Panel

Courtesy of GENERAL MOTORS CORP.

Position the front door upper trim panel insert (1) to the front door.
Insert the front door upper trim panel tabs into the slots in the door.
Push inward until the front door upper trim panel tabs are fully seated to the door.
