Installation Procedure

Fig 1: Identifying Door Handle Bezel & Power Door Lock Switch

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector (1) to the power door lock switch (2).
Install the power door lock switch (2) to the door handle bezel (3).
Press the switch (2) into the bezel (3) until the retaining tabs are engaged.

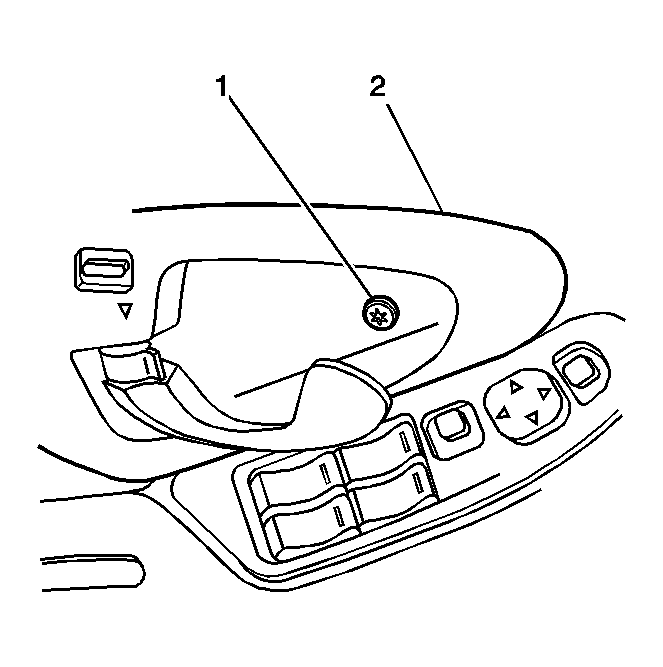

Fig 2: View of Door Handle Bezel

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the door handle bezel screw (1) to the door handle bezel (2).
Tighten: Tighten the screw to 2.3 N.m (20 lb in).
