Connector Identification

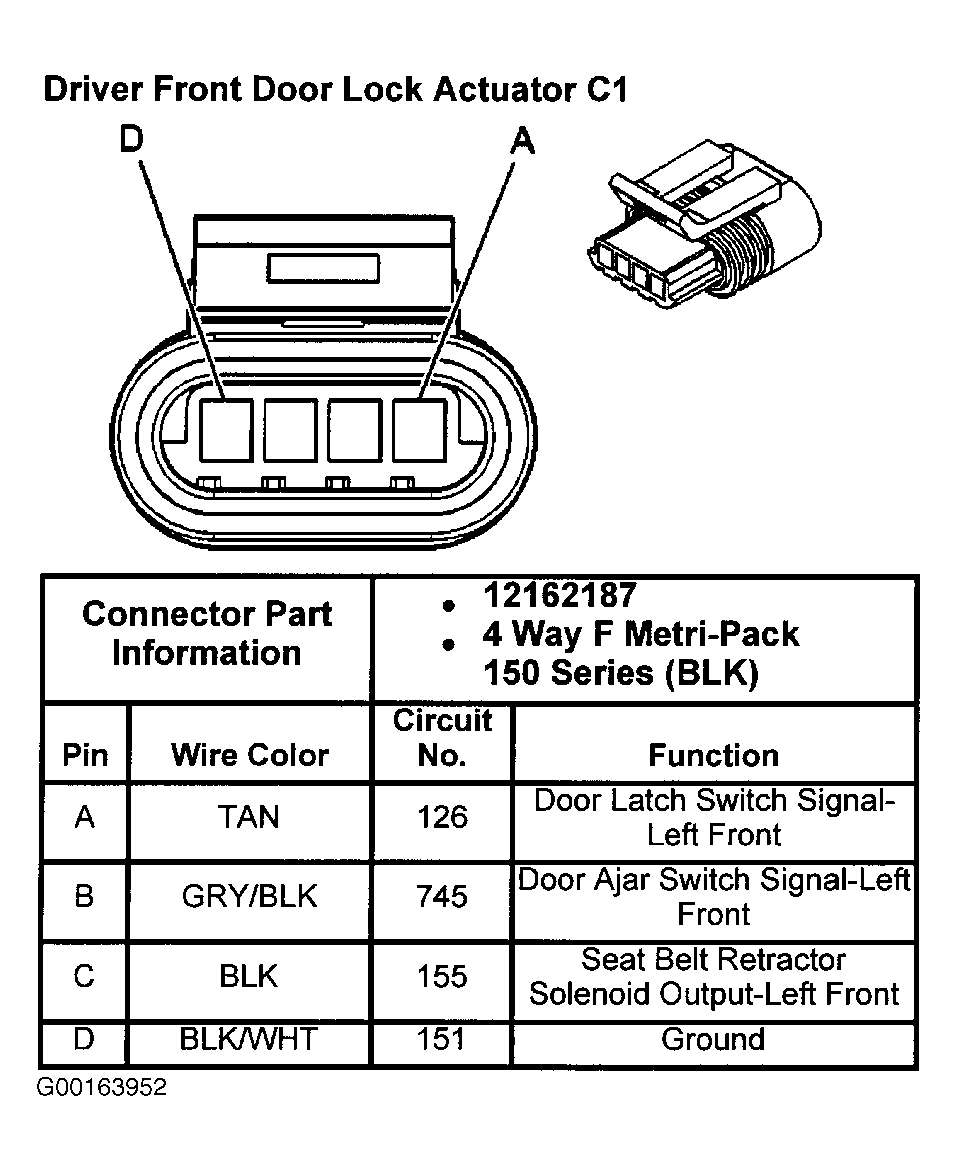

Fig 1: Identifying Driver's Side Front Door Lock Actuator C1 Connector Terminals
G00163952Courtesy of GENERAL MOTORS CORP.

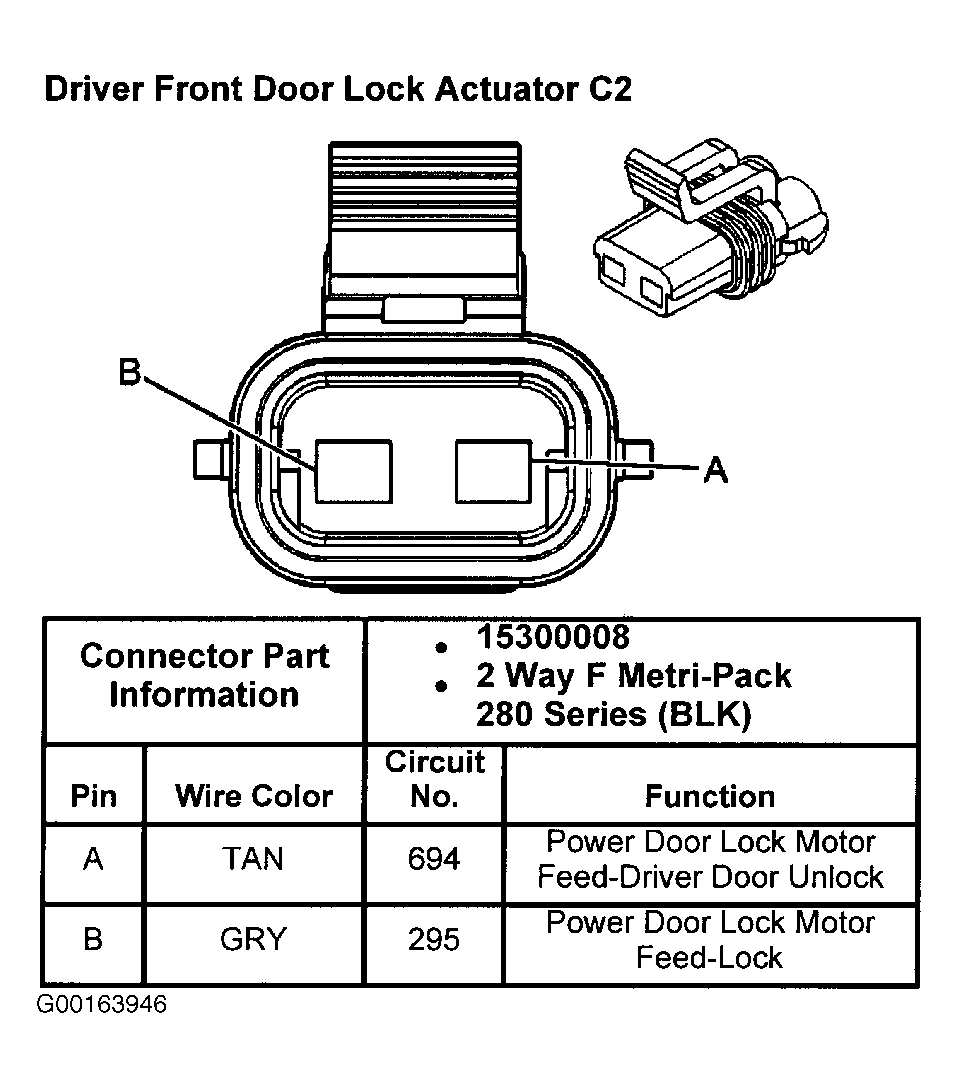

Fig 2: Identifying Driver's Side Front Door Lock Actuator C2 Connector Terminals
G00163946Courtesy of GENERAL MOTORS CORP.

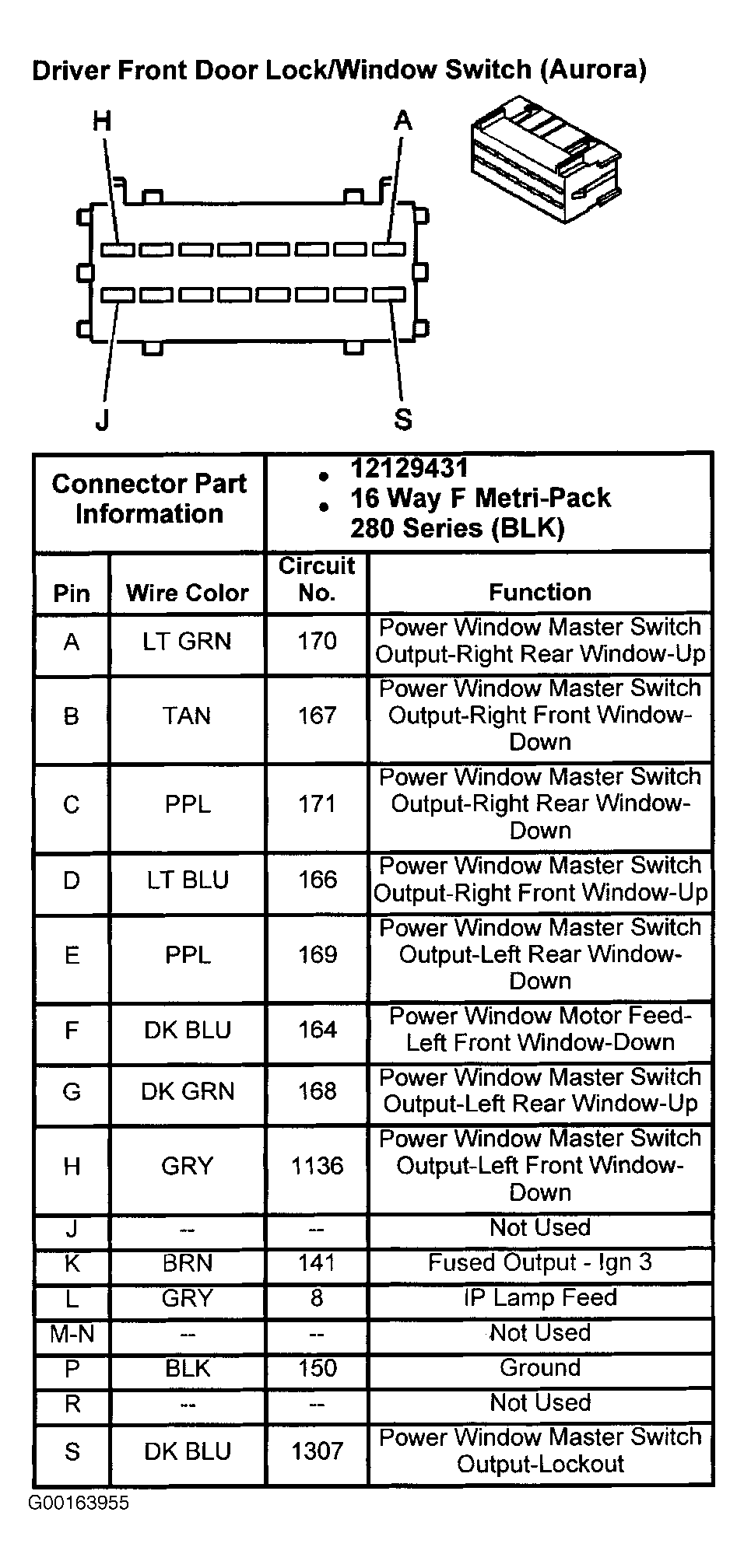

Fig 3: Identifying Driver's Side Front Door Lock/Window Switch Terminals (Aurora)
G00163955Courtesy of GENERAL MOTORS CORP.

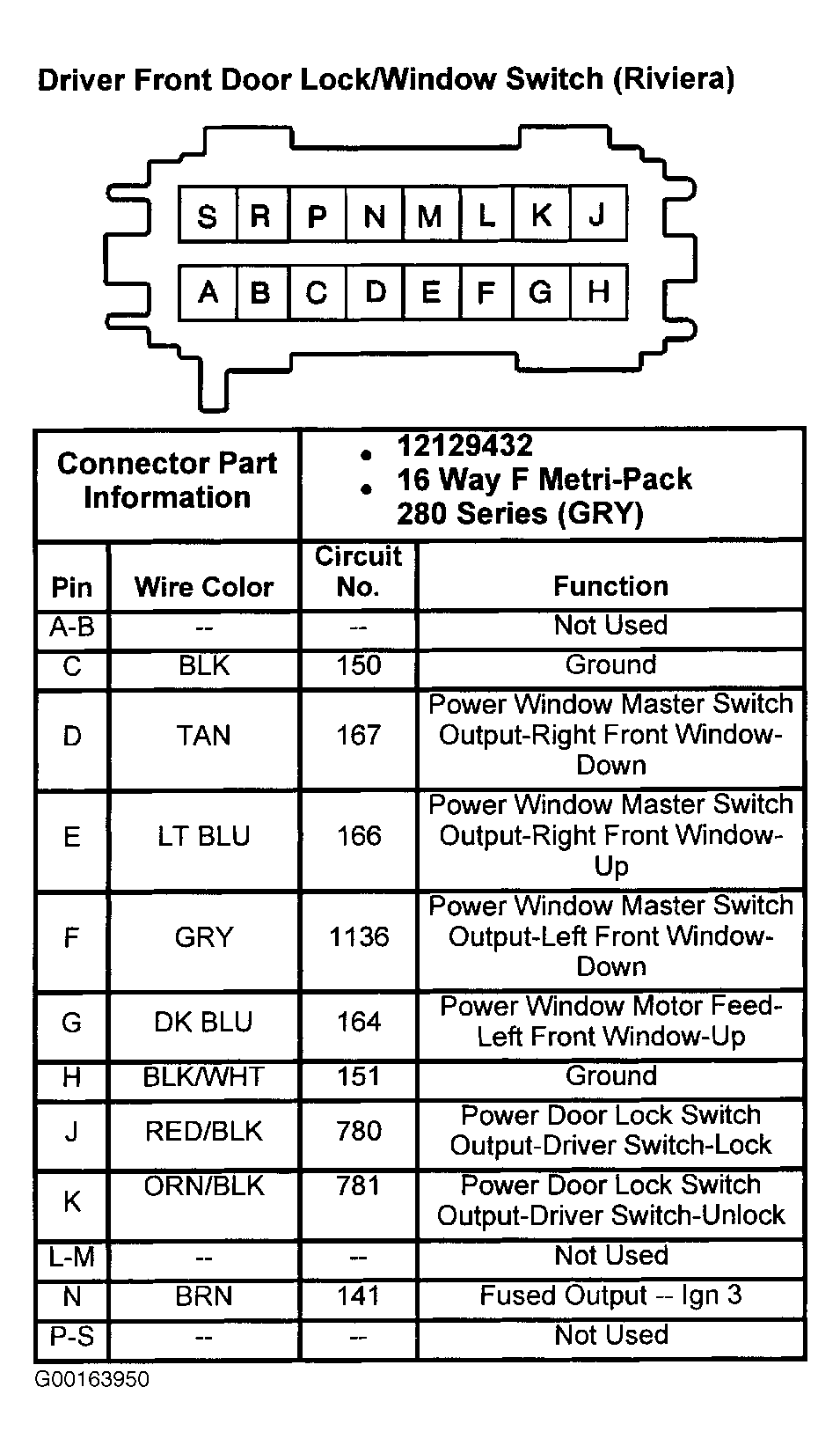

Fig 4: Identifying Driver's Side Front Door Lock/Window Switch (Riviera)
G00163950Courtesy of GENERAL MOTORS CORP.

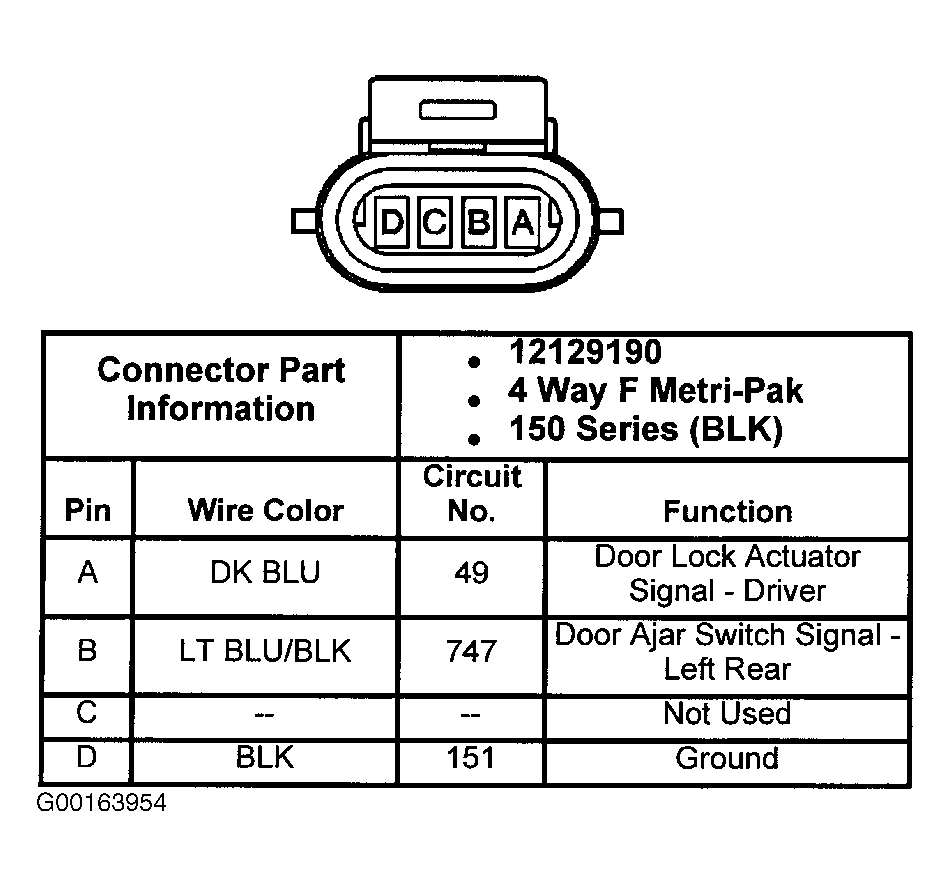

Fig 5: Identifying Driver's Side Rear Door Lock Actuator C1 Connector Terminals
G00163954Courtesy of GENERAL MOTORS CORP.

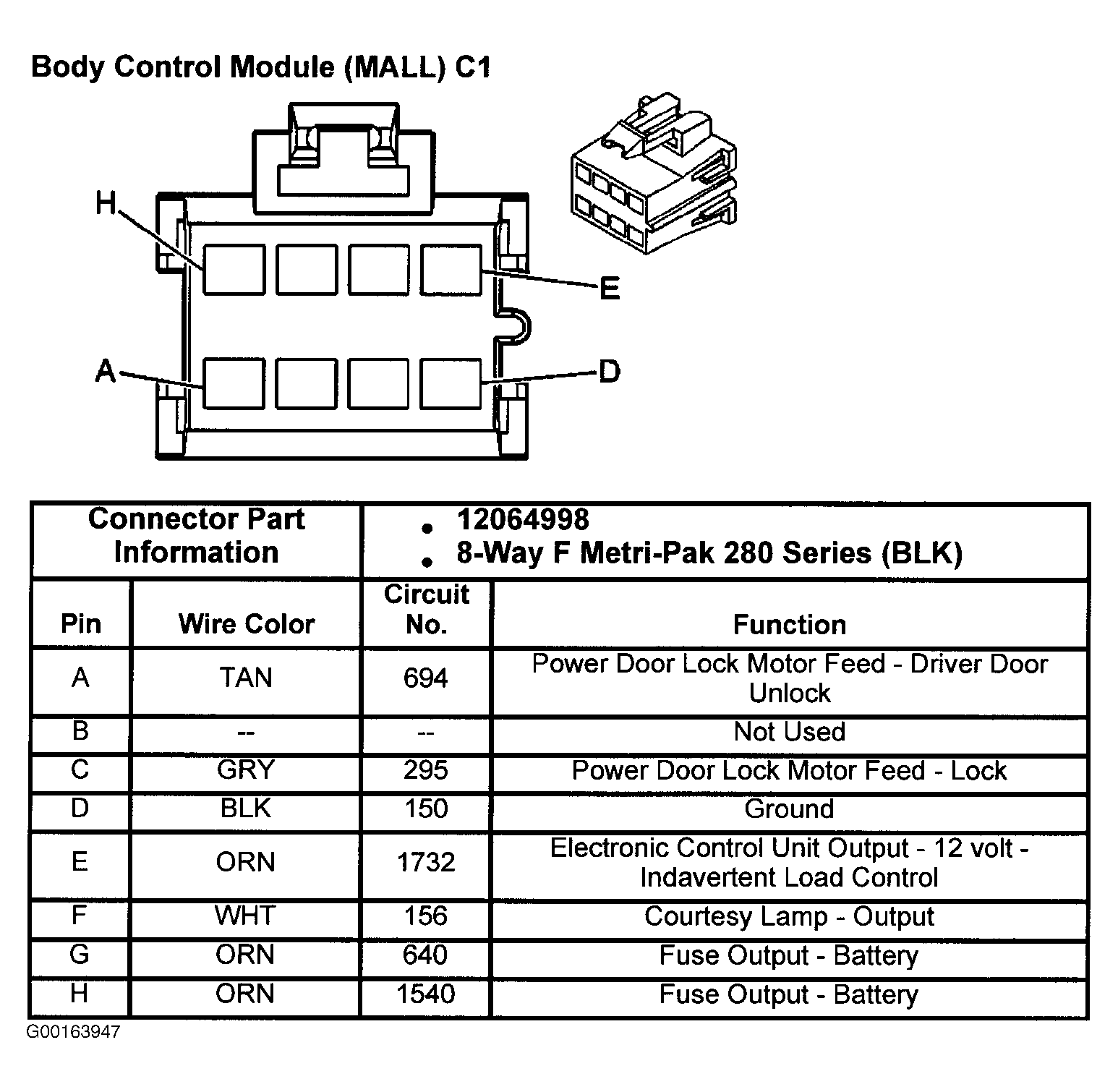

Fig 6: Identifying MALL C1 Connector Terminals
G00163947Courtesy of GENERAL MOTORS CORP.

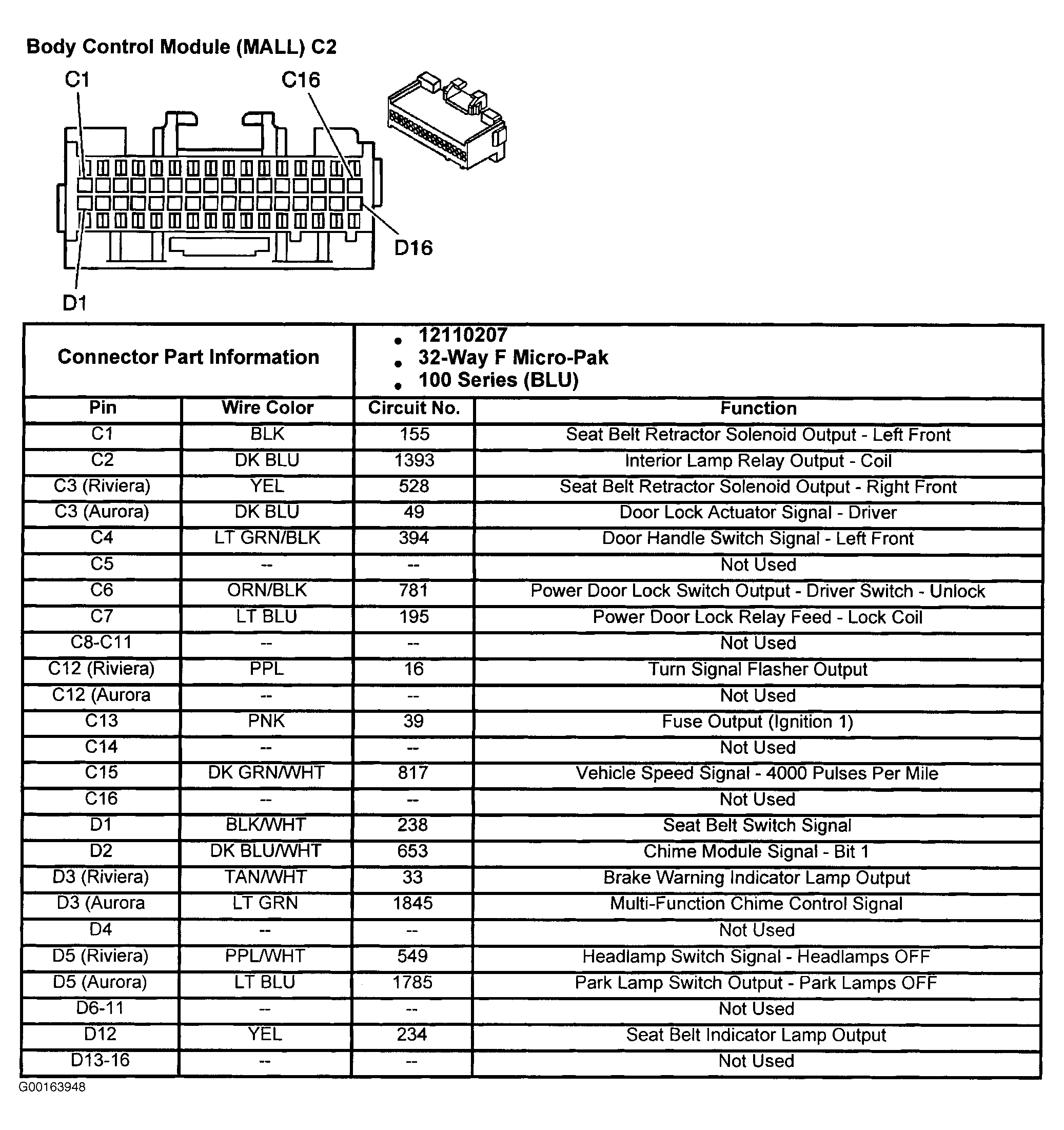

Fig 7: Identifying MALL C2 Connector Terminals
G00163948Courtesy of GENERAL MOTORS CORP.

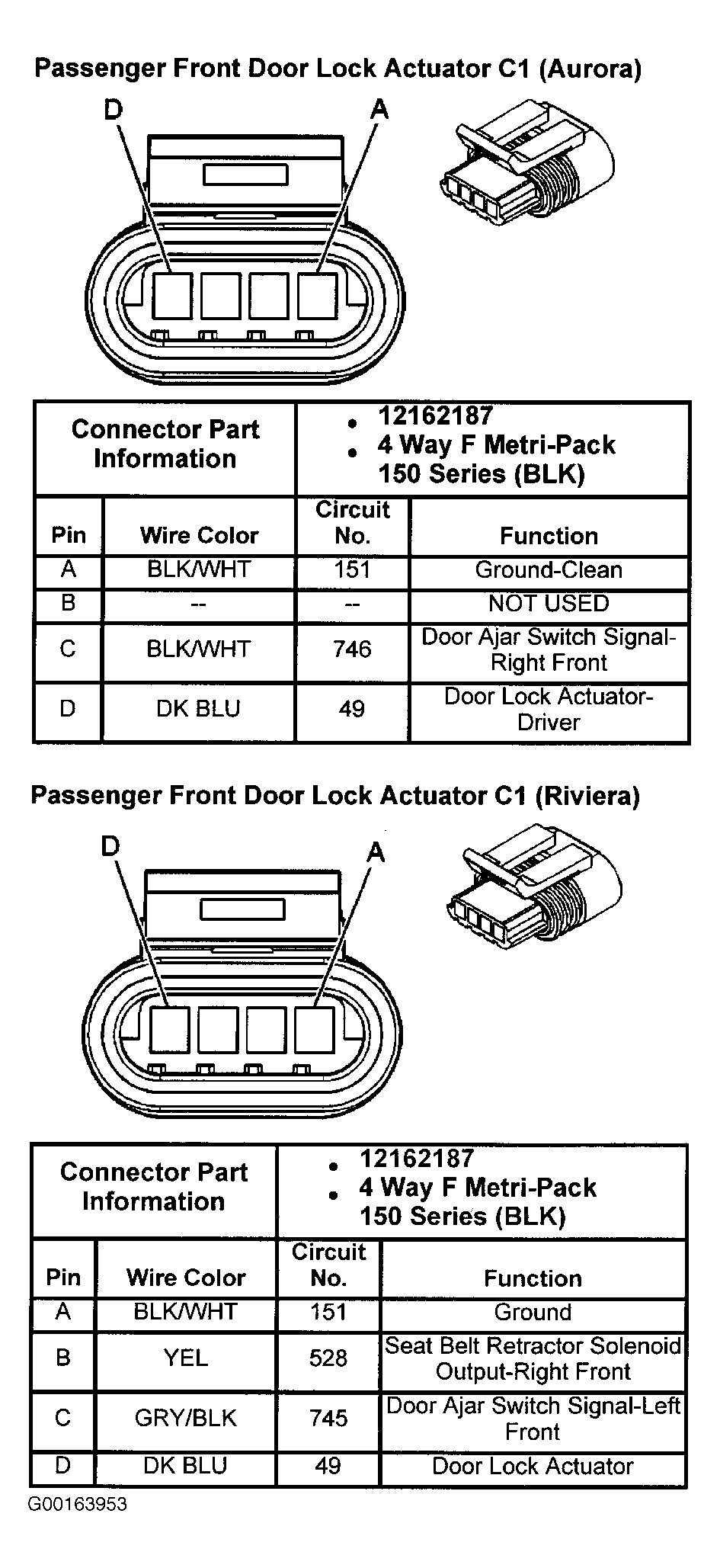

Fig 8: Identifying Passenger's Side Front Door Lock Actuator C1 Connector Terminals
G00163953Courtesy of GENERAL MOTORS CORP.

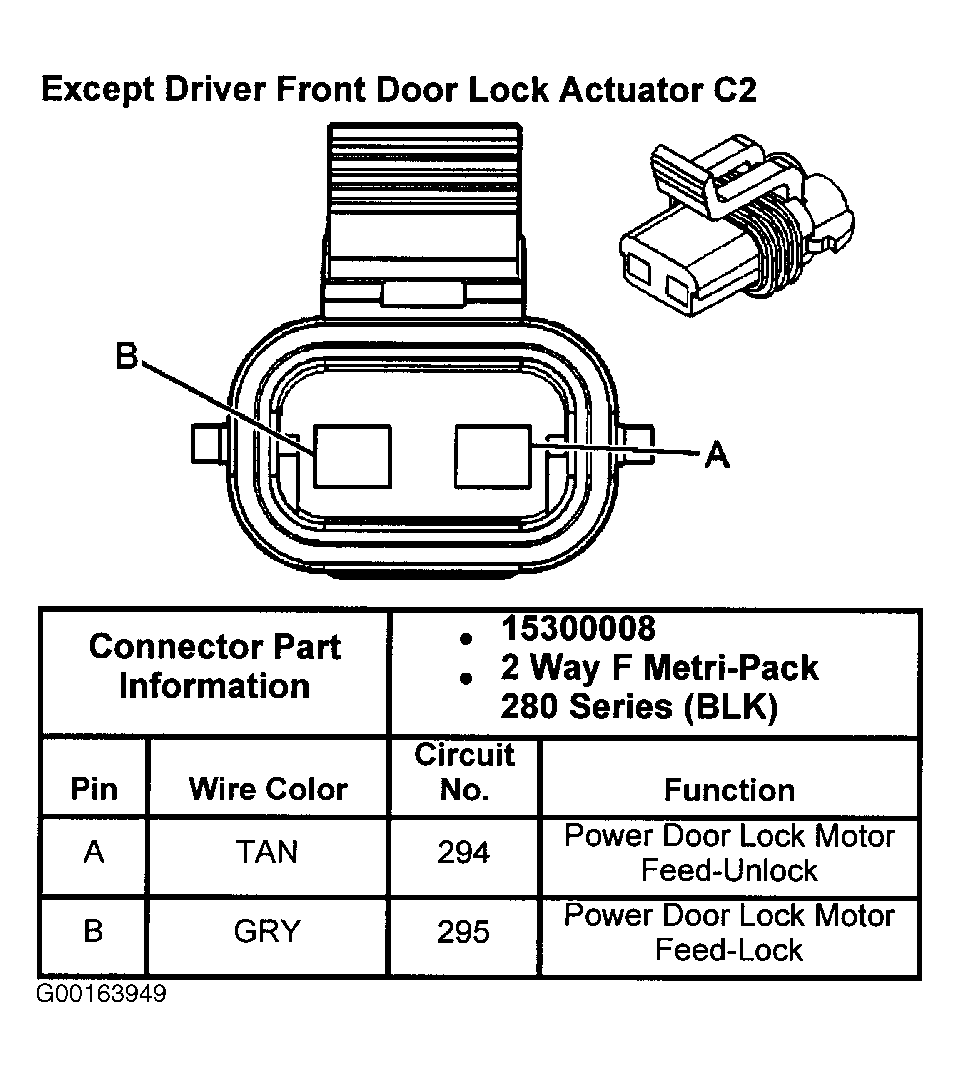

Fig 9: Identifying Lock Actuator C2 Connector Terminals
G00163949Courtesy of GENERAL MOTORS CORP.

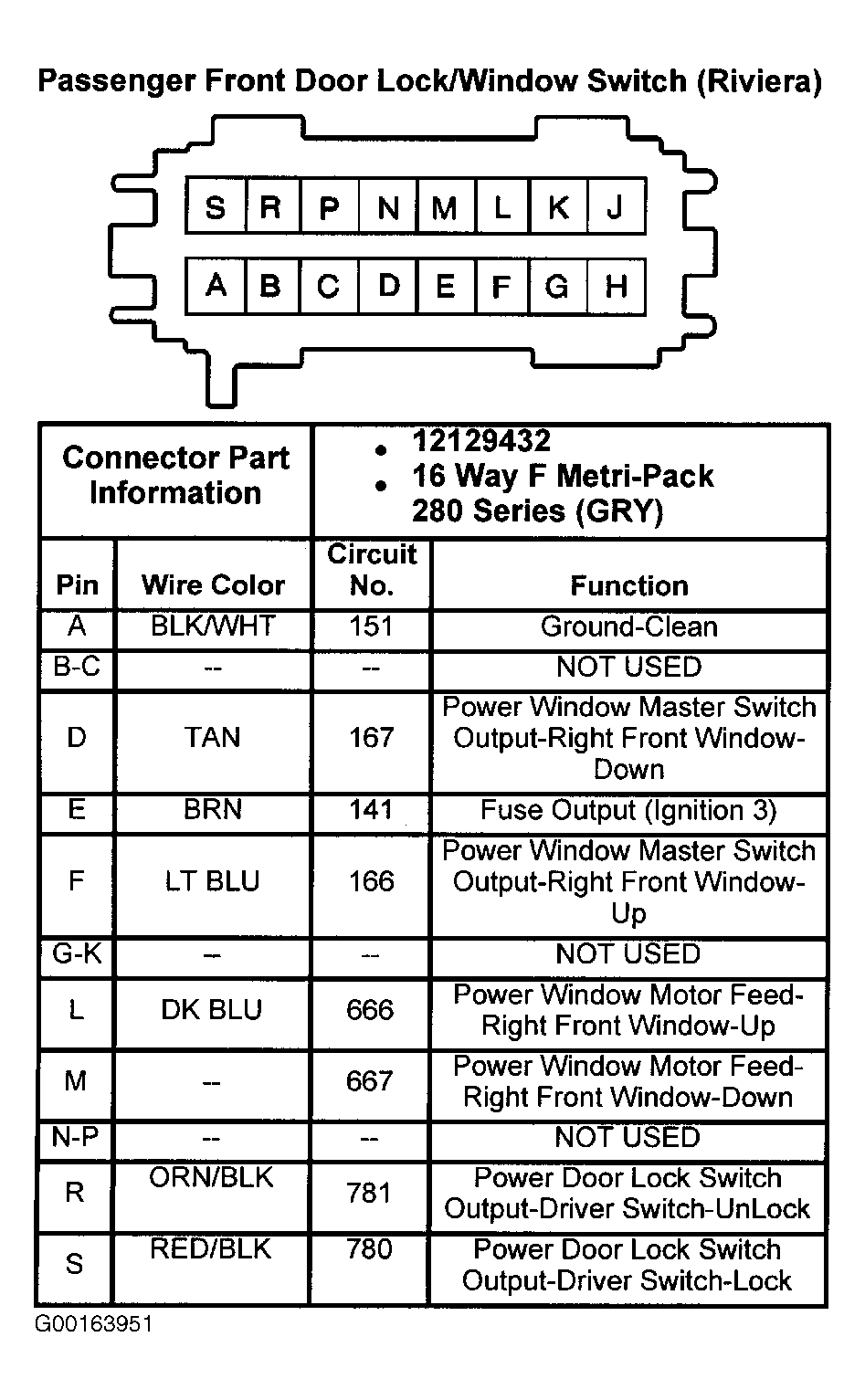

Fig 10: Identifying Passenger's Side Door Lock/Window Switch (Riviera)
G00163951Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying Remote Function Actuator (RFA) Module Connector Terminals
G00127264Courtesy of GENERAL MOTORS CORP.
