Component Locations

Component	Location

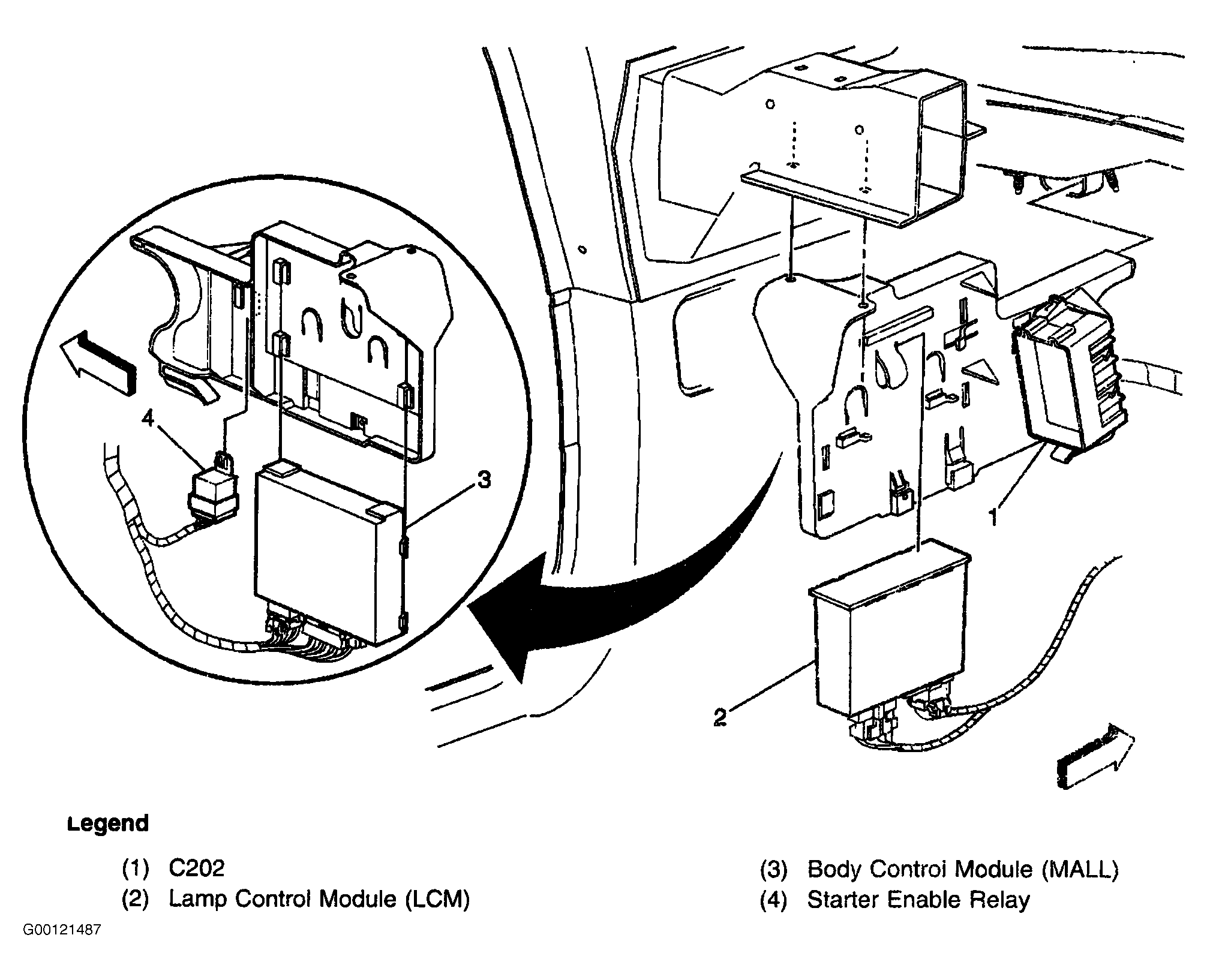

Body Control Module (MALL)	Under Passenger Side Of Instrument Panel, Near Rear Of Instrument Panel Compartment. See Fig 1 .
Data Link Connector (DLC)	Under Lower Left Edge Of Instrument Panel.

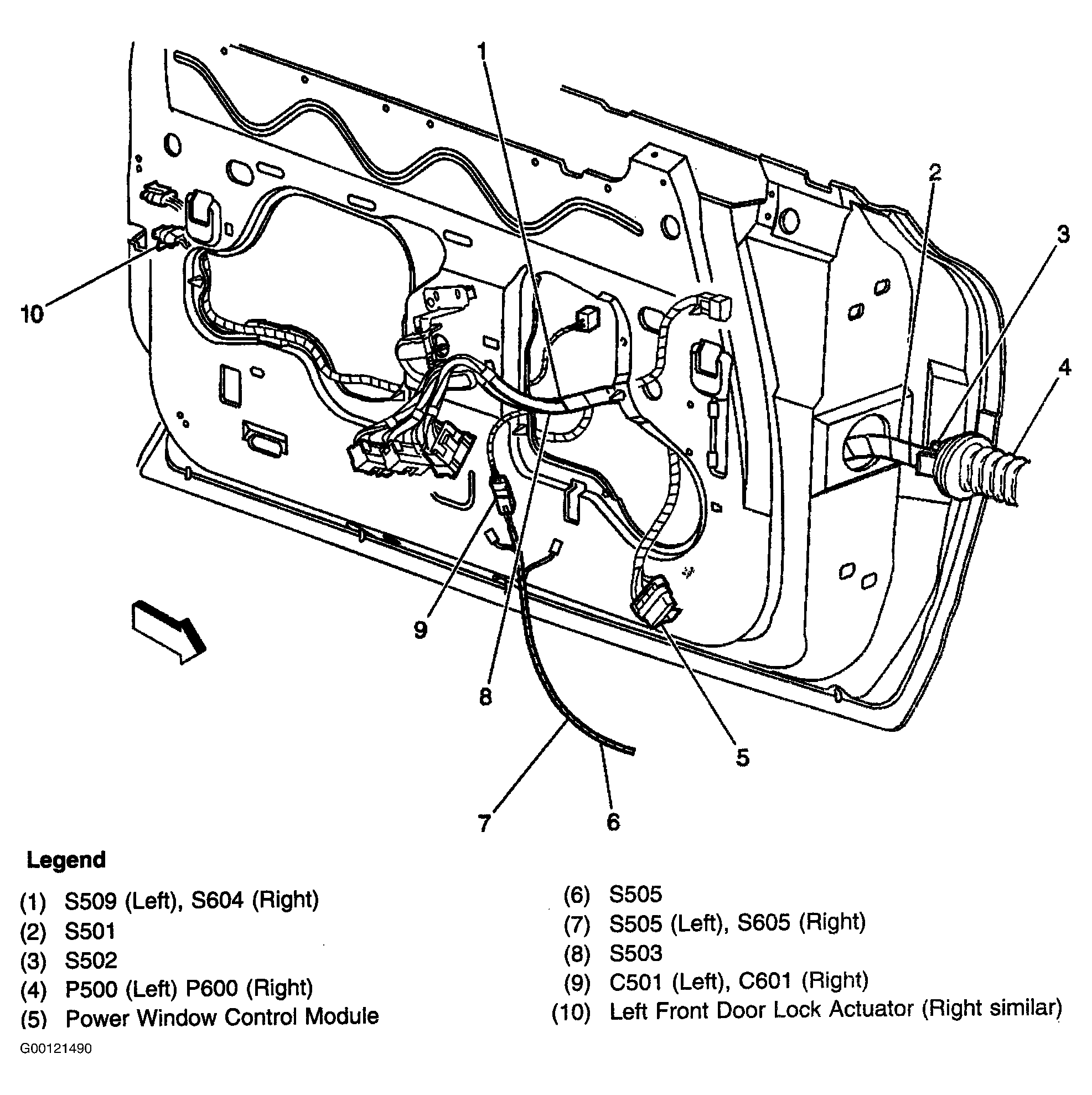

Driver Front Door Lock Actuator (Aurora)	In Rear Of Front Door, On Door Latch Assembly. See Fig 3 .

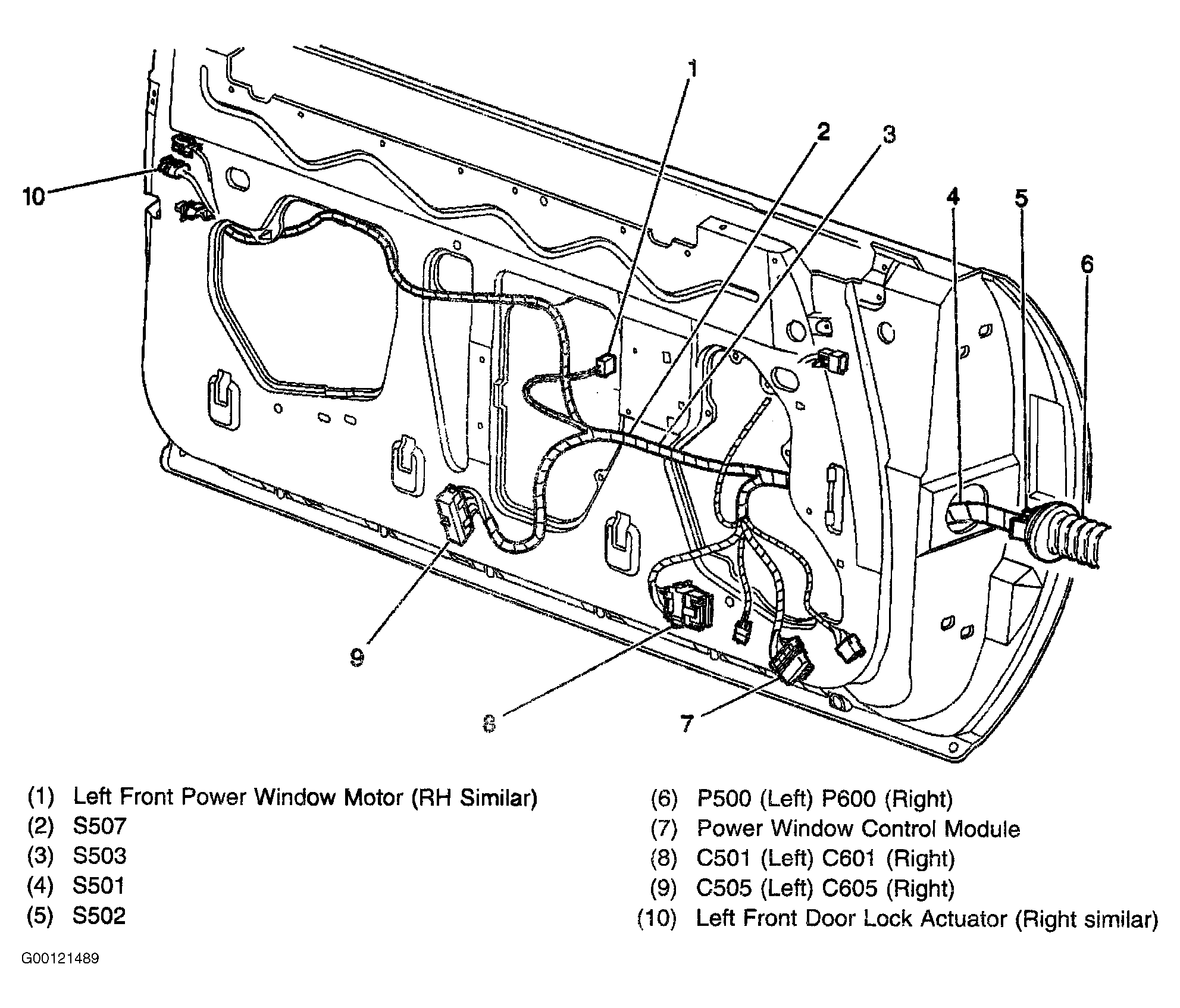

Driver Front Door Lock Actuator (Riviera)	In Rear Of Front Door, On Door Latch Assembly. See Fig 4 .

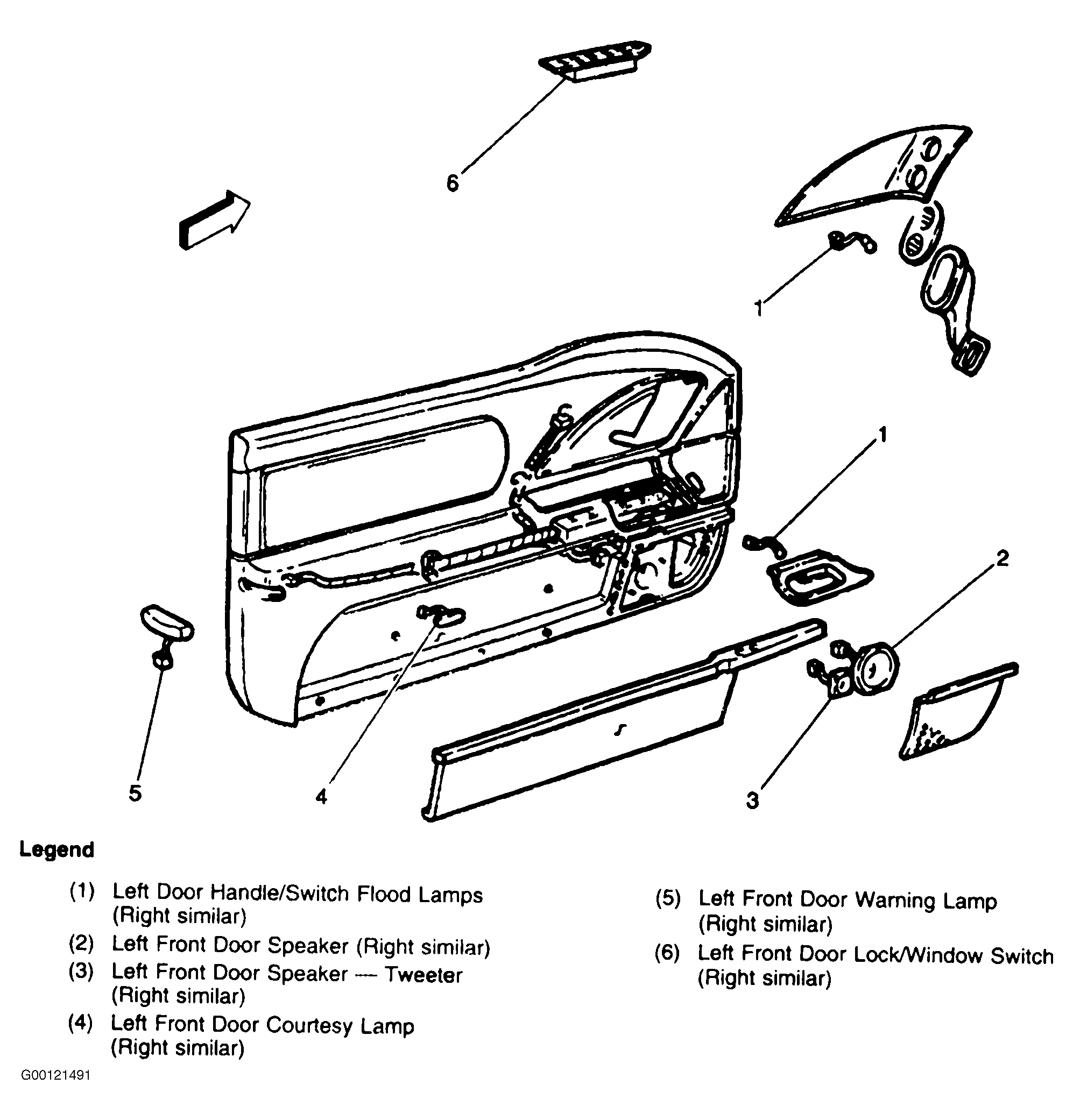

Driver Front Door Lock/Window Switch (Riviera)	On Driver Front Door Trim Panel, On Armrest. See Fig 5 .
Driver Rear Door Lock Actuator	On Rear Side Of Driver Rear Door, On Door Latch Assembly.

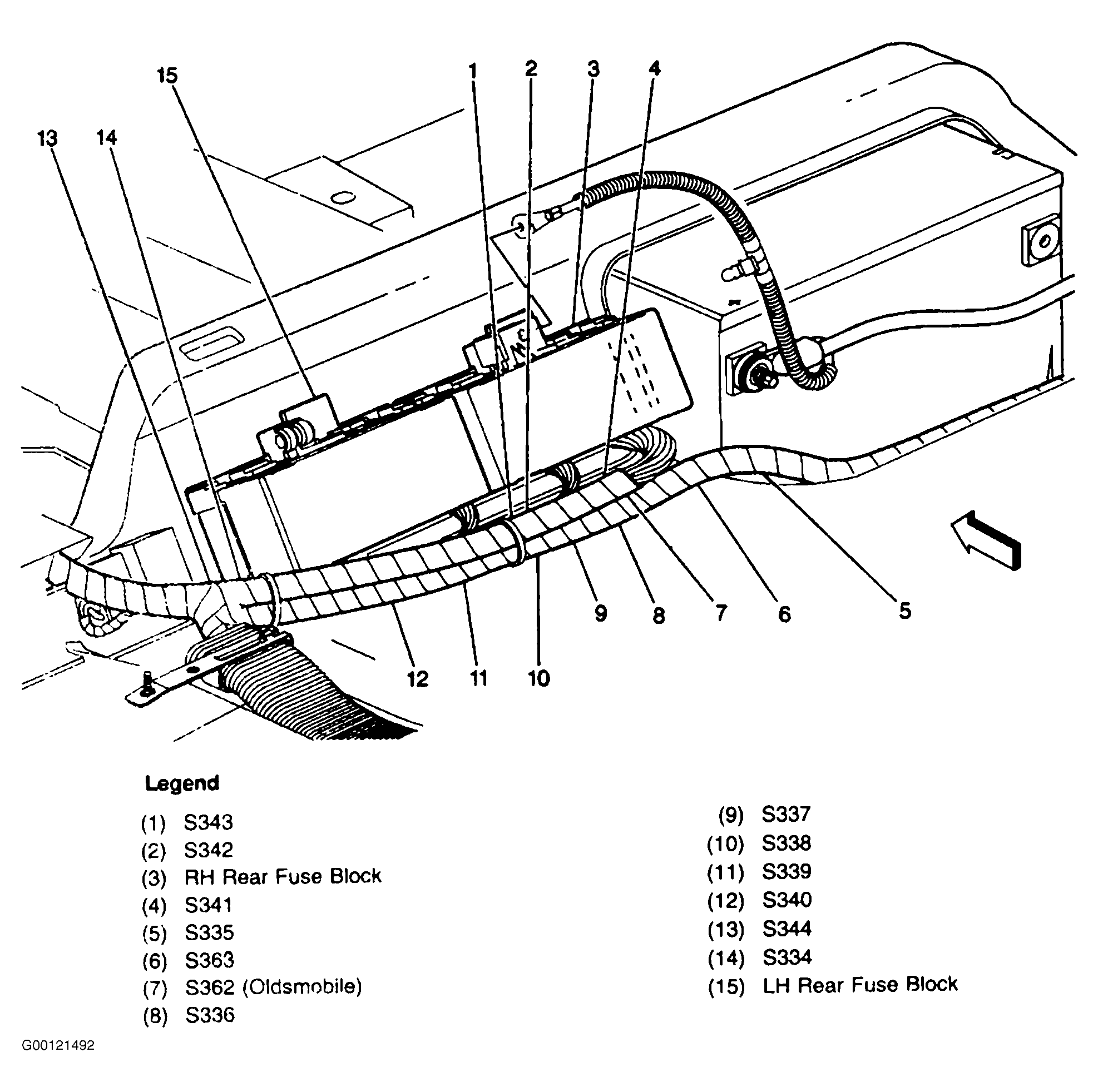

Driver Rear Fuse Block	On Driver Rear Side Of Passenger Compartment, Under Rear Seat Cushion. See Fig 6 .

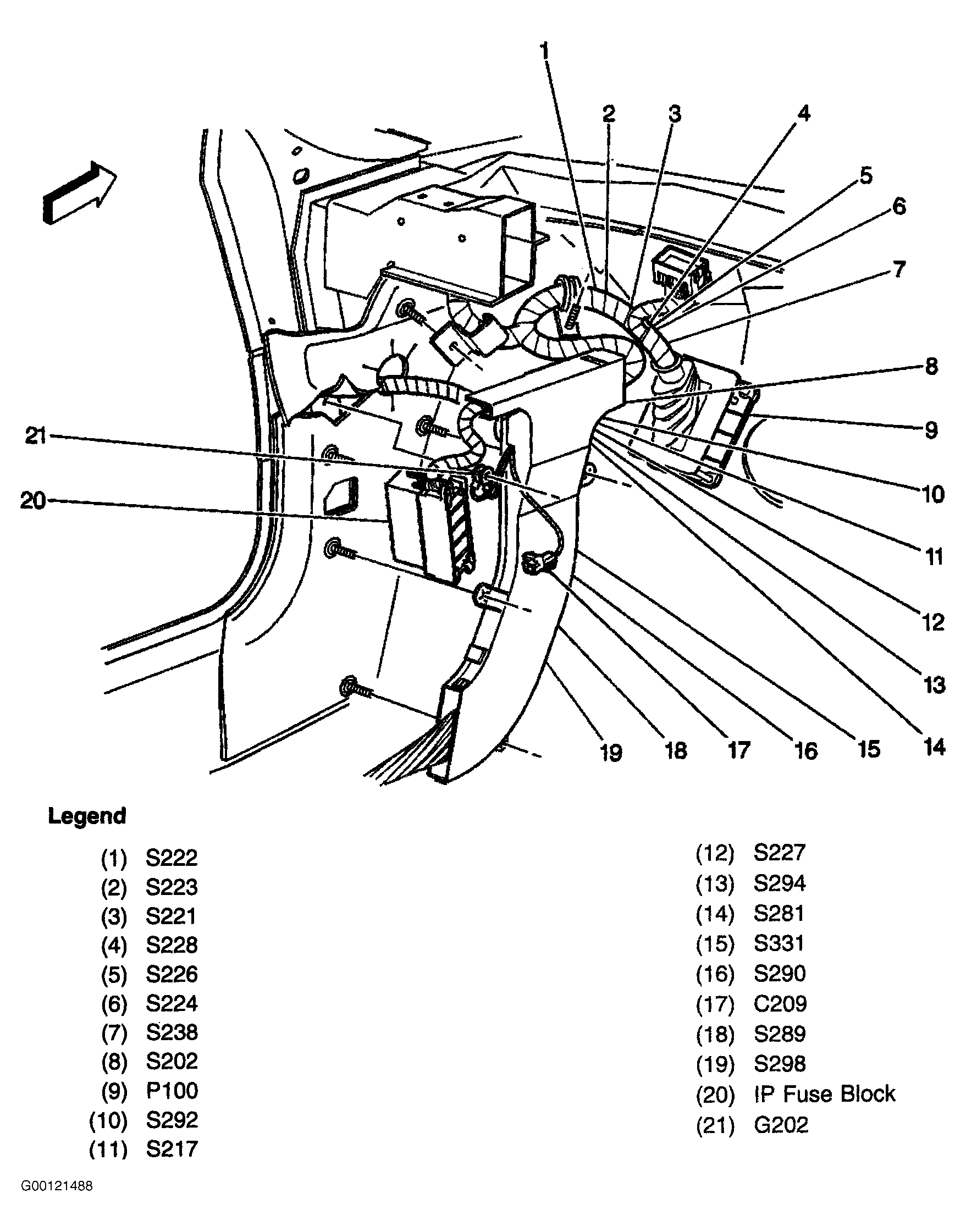

Instrument Panel Fuse Block	On Driver Front Side Of Passenger Compartment, Attached To Door Hinge Pillar. See Fig 2 .
Passenger Front Door Lock Actuator	In Rear Of Passenger Front Door, On Door Latch Assembly. See Fig 3 .
Passenger Front Door Lock/Window Switch (Riviera)	On Passenger Front Door Trim Panel, In Armrest. See Fig 5 .
Passenger Rear Door Lock Actuator	On Rear Of Passenger Rear Door, On Door Latch Assembly. See Fig 4 .
Passenger Rear Fuse Block	On Passenger Rear Side Of Passenger Compartment, Under Rear Seat Cushion. See Fig 6 .

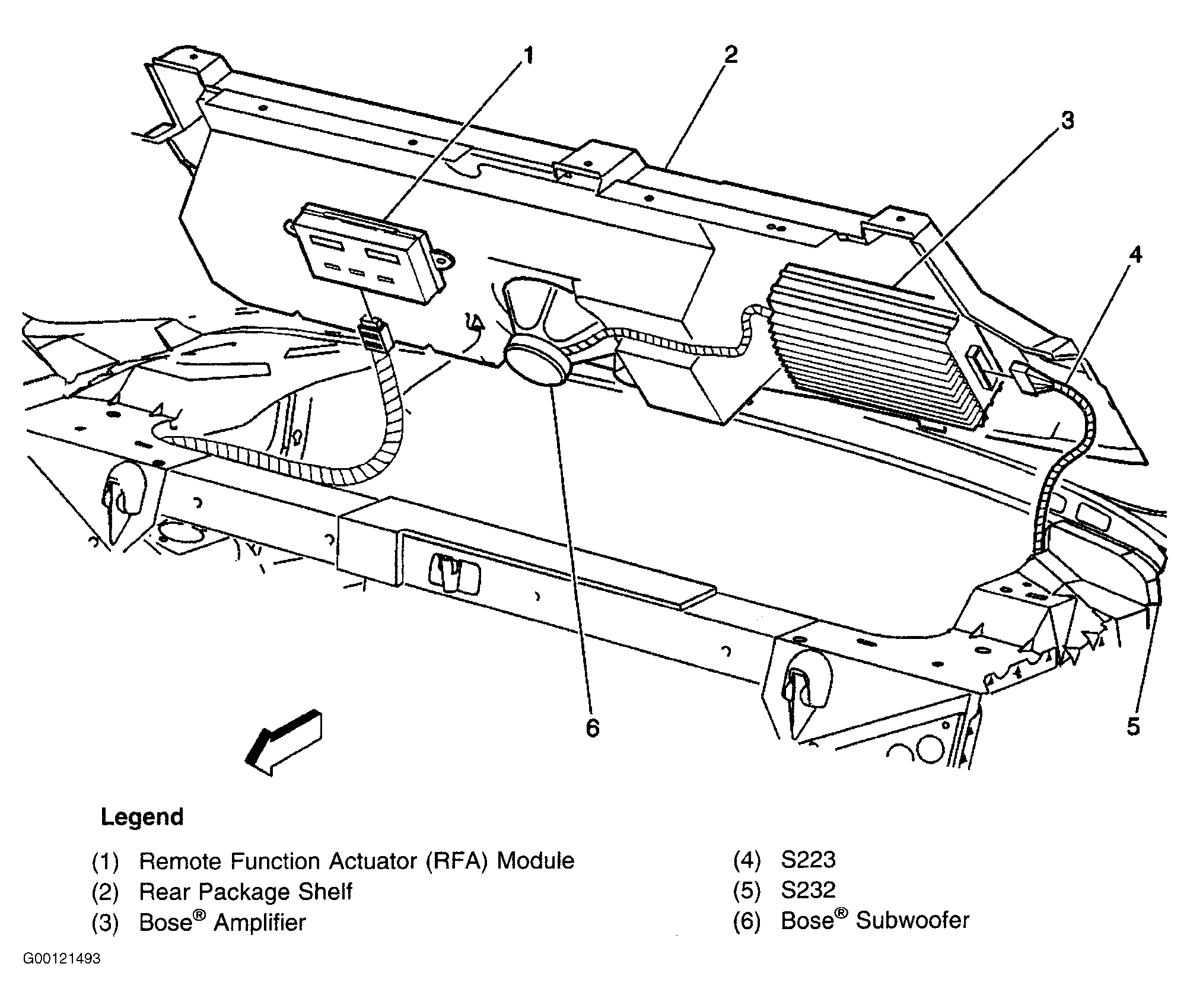

Remote Function Actuator (RFA) Module	On Passenger Rear Side Of Passenger Compartment, Under Rear Shelf Trim Panel. See Fig 7 .
C114 (7 Cavities - Aurora)	Body Harness To Park/Neutral Switch Harness, On Driver Center Side Of Engine Compartment.

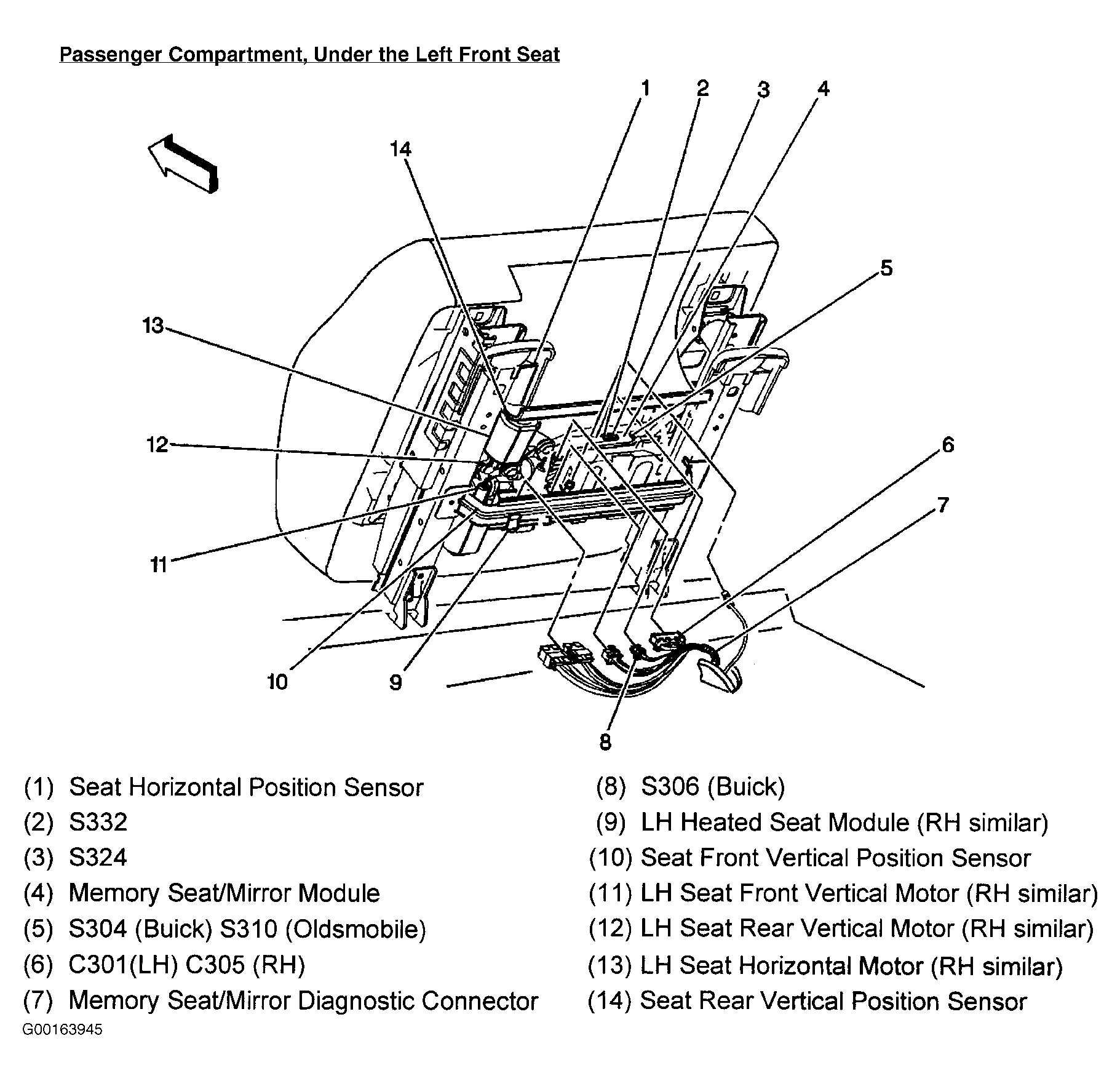

C301 (23 Cavities)	Body Harness To Driver Seat Harness, Under Driver Front Seat. See Fig 8 .
C501 (10 Cavities - Aurora)	Body Harness To Door Trim Harness, In Driver Front Door. See Fig 3 .
C501 (10 Cavities - Riviera)	Body Harness To Door Trim Harness, In Driver Front Door. See Fig 4 .
C601 (16 Cavities - Aurora)	Body Harness To Door Trim Harness, In Passenger Front Door. See Fig 3 .
C601 (16 Cavities - Riviera)	Body Harness To Door Trim Harness, In Passenger Front Door. See Fig 4 .

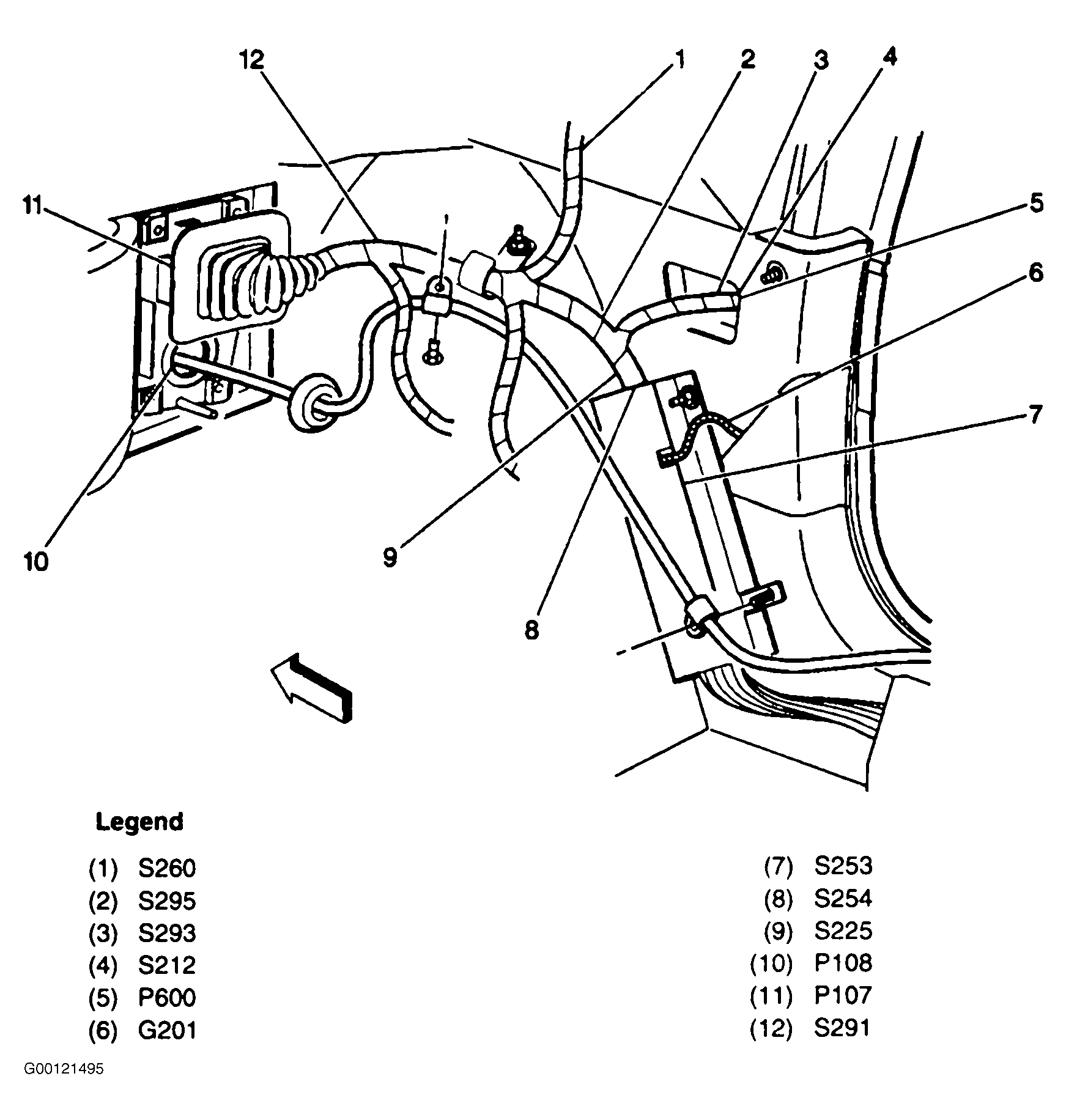

G201	On Passenger Front Side Of Passenger Compartment, Under Kick Panel Trim Plate. See Fig 9 .
G202	On Driver Front Side Of Passenger Compartment, Under Kick Panel Trim Plate. See Fig 2 .
P100	On Driver Rear Side Of Engine Compartment, Near Base Of Strut Tower. See Fig 2 .
P500	On Front Of Driver Front Door Jamb, Near Door Hinge. See Fig 4 .
P600	On Front Of Passenger Front Door Jamb, Near Door Hinge. See Fig 4 .

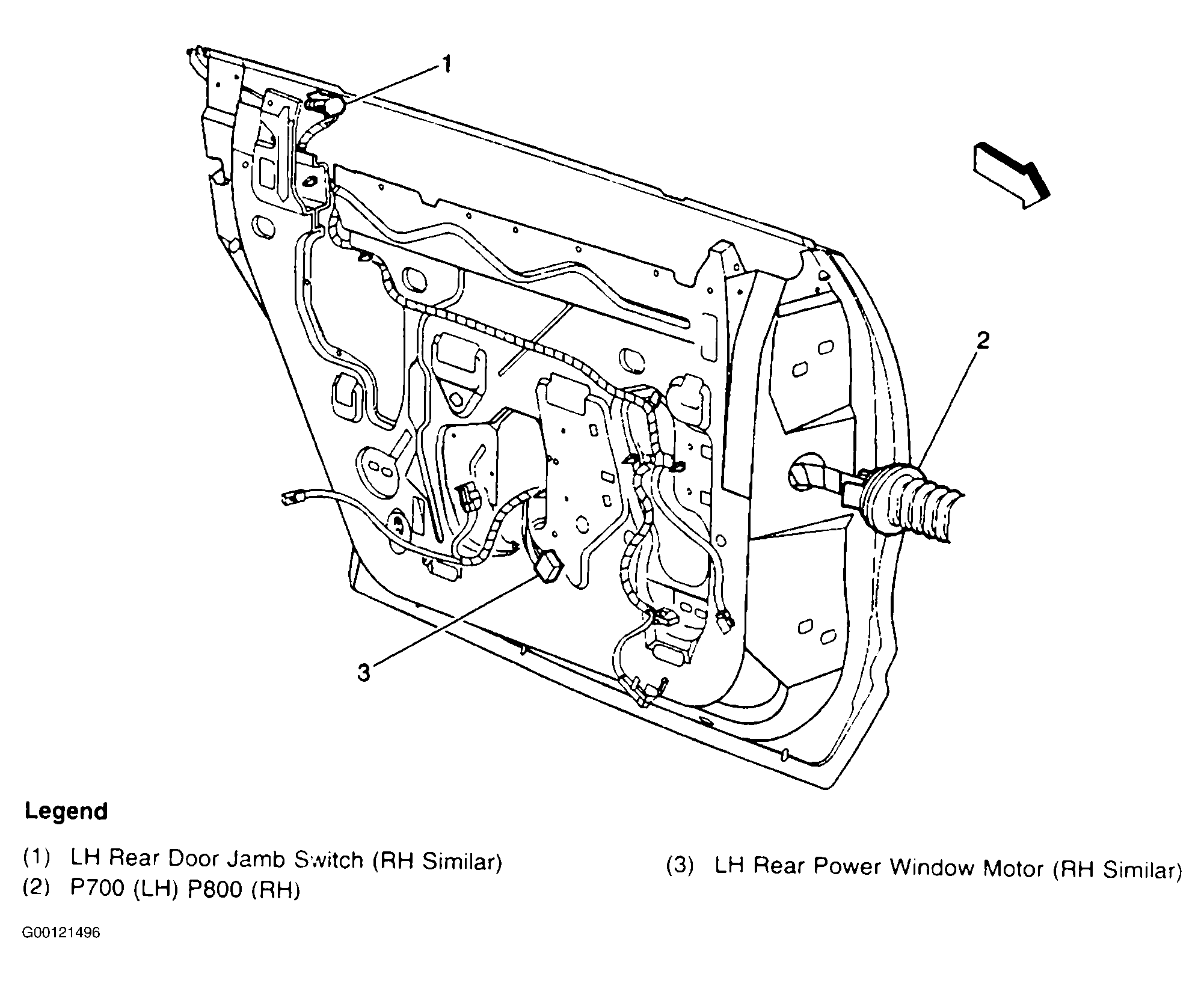

P700	On Front Of Driver Rear Door Jamb, Near Door Hinge. See Fig 10 .
P800	On Front Of Passenger Rear Door Jamb, Near Door Hinge. See Fig 10 .

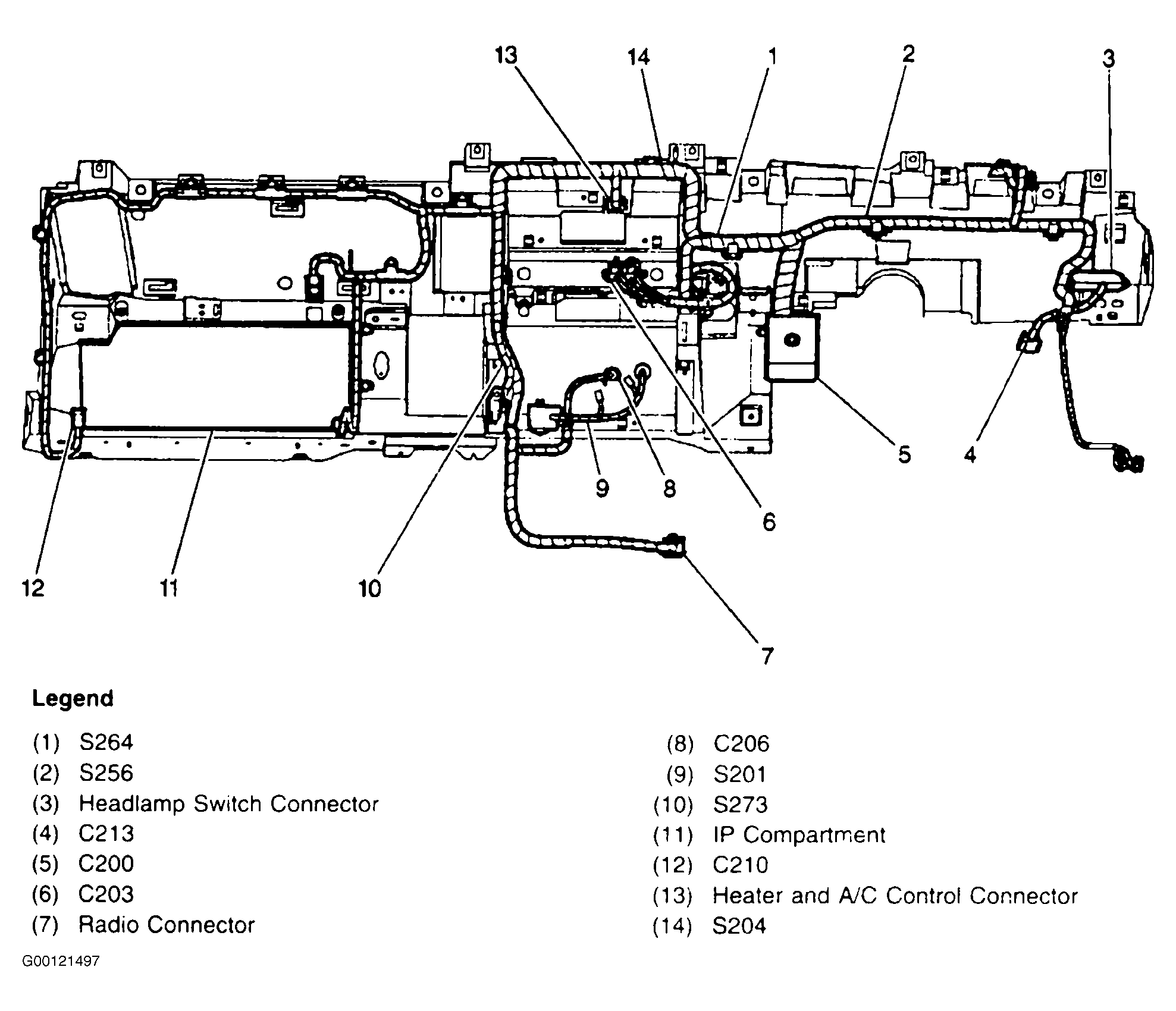

S204	In Instrument Panel Harness, Approximately 10" (23.5 cm) From Fuel Injector No. 5. See Fig 11 .
S211	In Body Harness, Approximately 14" (35.5 cm) From Turn Signal Flasher.
S212	In Body Harness, Approximately 2.7" (7 cm) From P600.
S258	In Body Harness, Approximately 14" (35 cm) From Park Brake Switch.
S290	In Body Harness, Approximately 28.7" (73 cm) From P100. See Fig 2 .
S298	In Body Harness, Approximately 32.4" (82.5 cm) From P100. See Fig 2 .

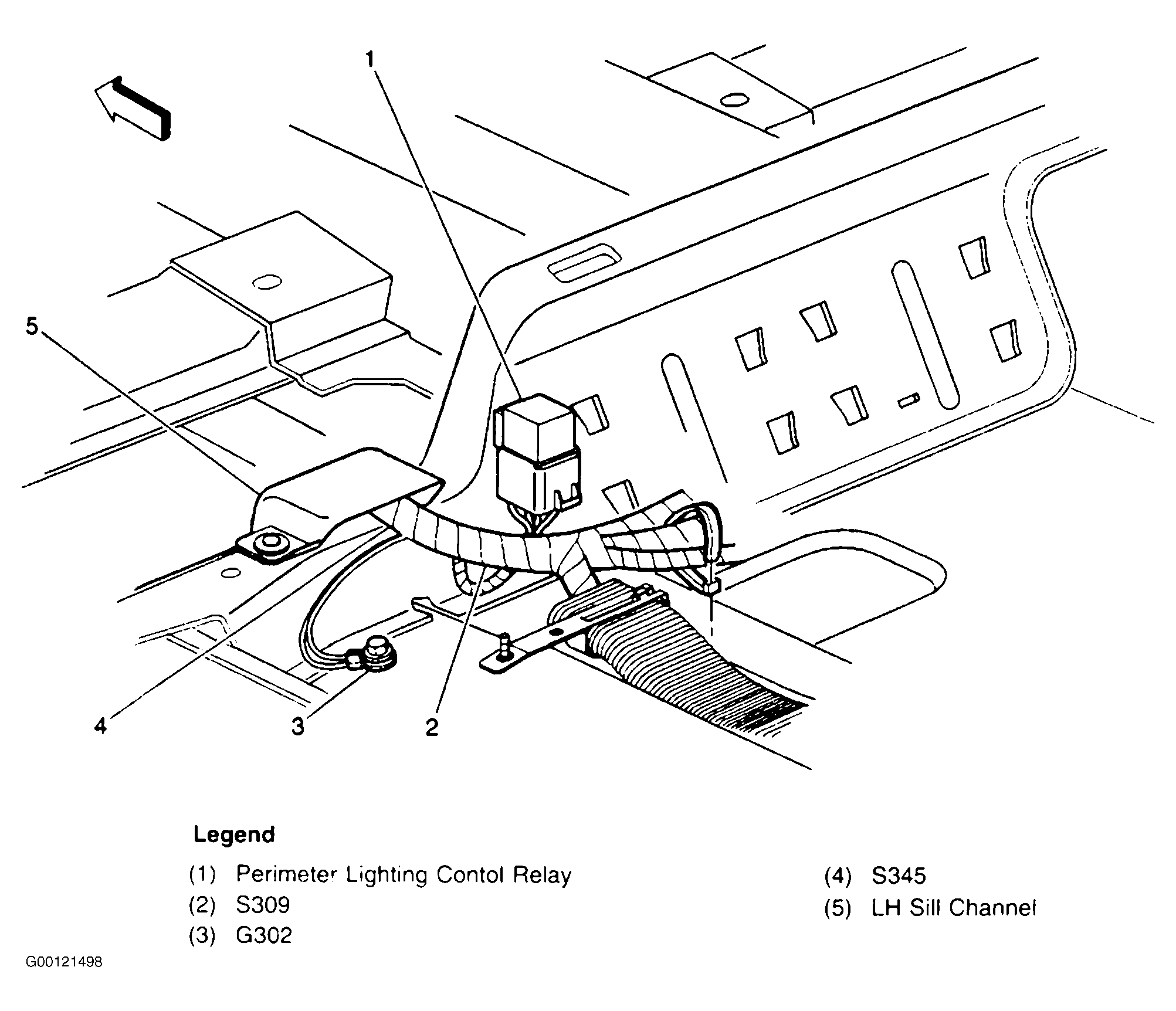

S309	In Body Harness, Approximately 7.4" (19 cm) From G302. See Fig 12 .
S323	In Body Harness, Approximately 21" (53.5 cm) From C301 Connector.
S331	In Body Harness, Approximately 17" (43.5 cm) From G202. See Fig 2 .
S335	In Body Harness, Approximately 31.1" (79 cm) From G302. See Fig 6 .
S339	In Body Harness, Approximately 17.7" (45 cm) From G302. SeeFig 6 .
S340	In Body Harness, Approximately 14.7" (37.5 cm) From G302. See Fig 6 .
S345	In Body Harness, Approximately 7.4" (19 cm) From G302. See Fig 12 .
S350	In Body Harness, Approximately 17.7" (45 cm) From G302.
S354	In Body Harness, Approximately 54.5" (138.5 cm) From P800.

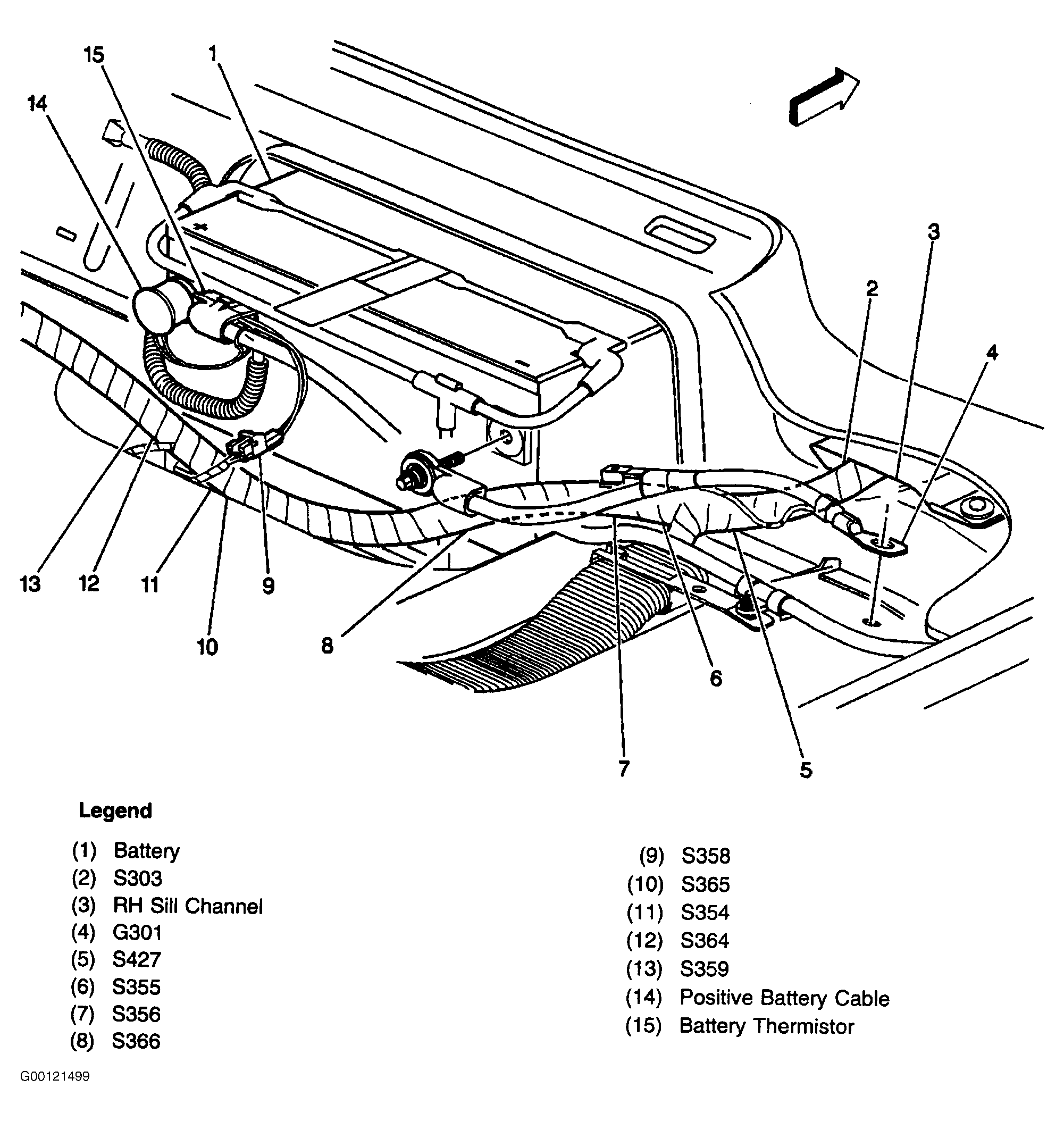

S355	In Body Harness, Approximately 43.3" (110 cm) From P800. See Fig 13 .
S359	In Body Harness, Approximately 57" (145 cm) From P800.
S364	In Body Harness, Approximately 56" (142 cm) From P800. See Fig 13 .

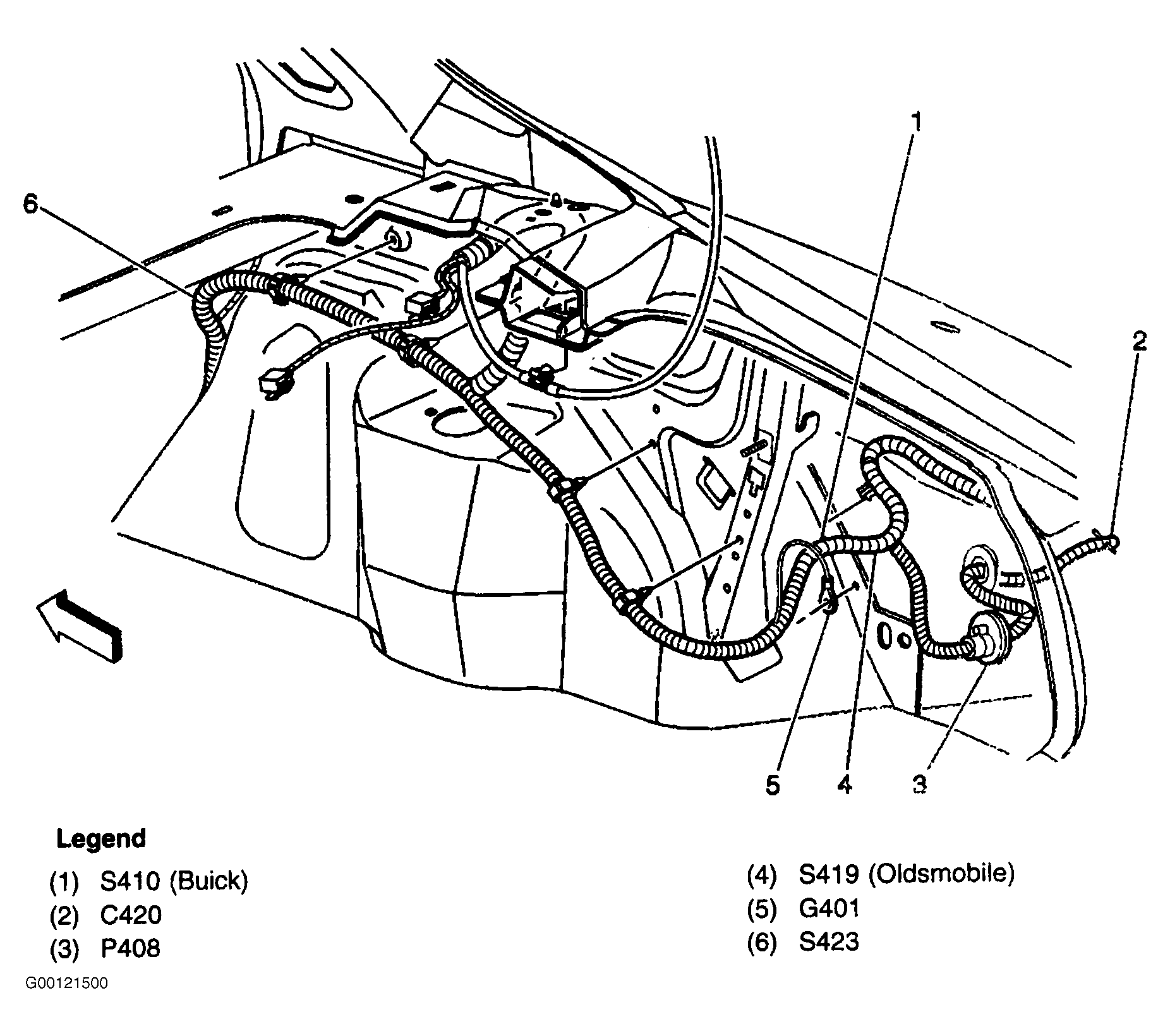

S423	In Body Harness, Approximately 17" (43.5 cm) From High Mounted Stop Lamp. See Fig 14 .
S501 (Aurora)	In Body Harness, Approximately 14.7" (37.5 cm) From P500. See Fig 3 .
S501 (Riviera)	In Body Harness, Approximately 16.5" (42 cm) From P500. See Fig 4 .
S502 (Aurora)	In Body Harness, Approximately 12" (30.5 cm) From P500. See Fig 3 .
S502 (Riviera)	In Body Harness, Approximately 13.7" (35 cm) From P500. See Fig 4 .
S503 (Aurora)	In Body Harness, Approximately 23.2" (59 cm) From P500. See Fig 3 .
S503 (Riviera)	In Body Harness, Approximately 22.2" (56.5 cm) From P500. See Fig 4 .
