Home >> Oldsmobile >> 1999 >> Aurora >> Repair and Diagnosis >> Accessories & Equipment >> Anti-Theft Systems >> Remote Keyless Entry Systems >> Connector Identification

Connector Identification

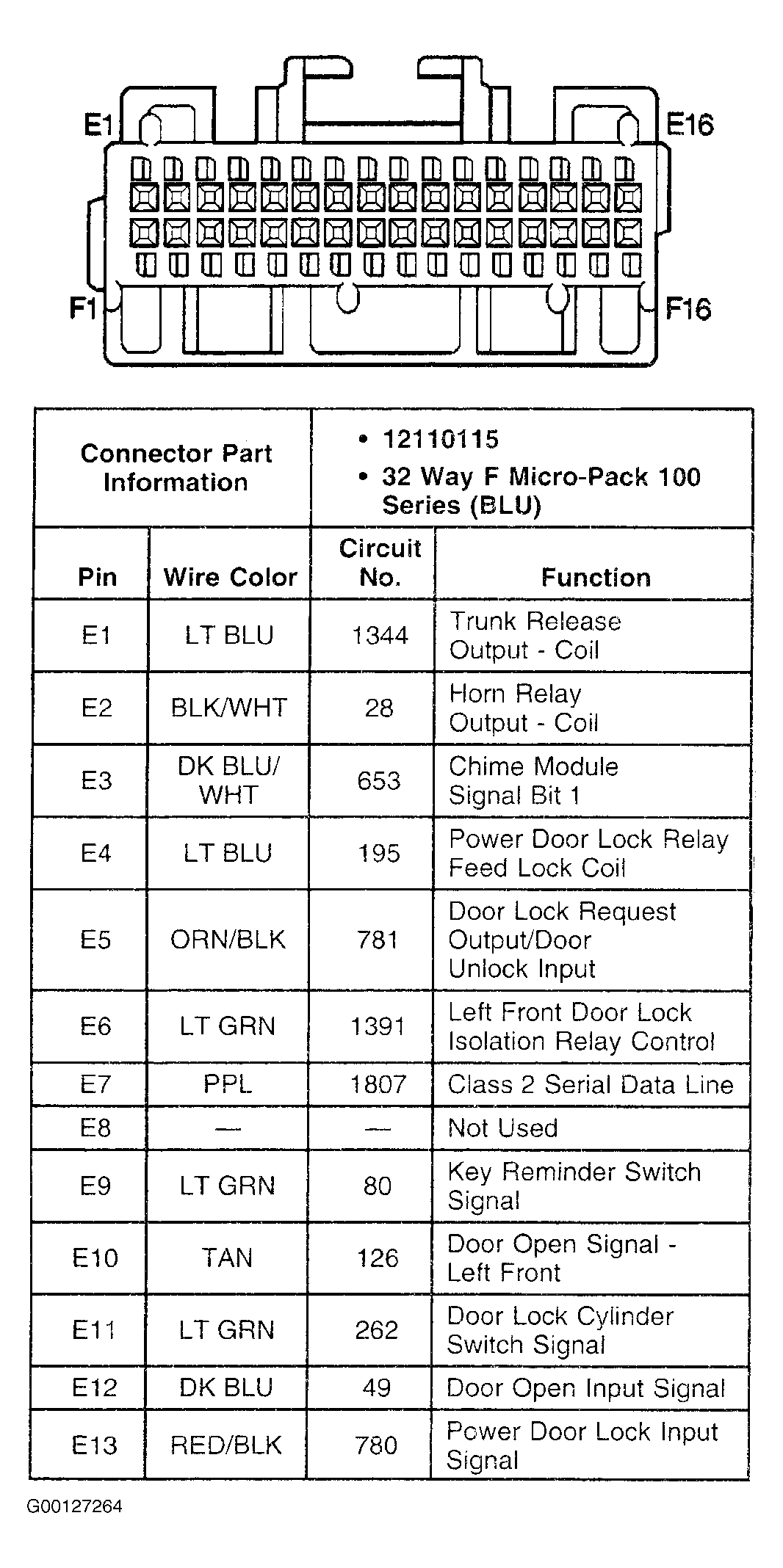

Fig 1: Identifying Remote Function Actuator (RFA) Module Connector Terminals

G00127264

Courtesy of GENERAL MOTORS CORP.
