Diagnostic Chart Step References

NOTE: Following step references refer to test step numbers on diagnostic chart. See Fig 1 . For circuit number and wire color identification, see WIRING DIAGRAMS  .

  1. 2

    If air bag modules have not deployed, DTC B1053 may have set falsely.

  2. 3

    If DTC B1053 has set with no signs of frontal impact, diagnostic trouble code has set falsely.

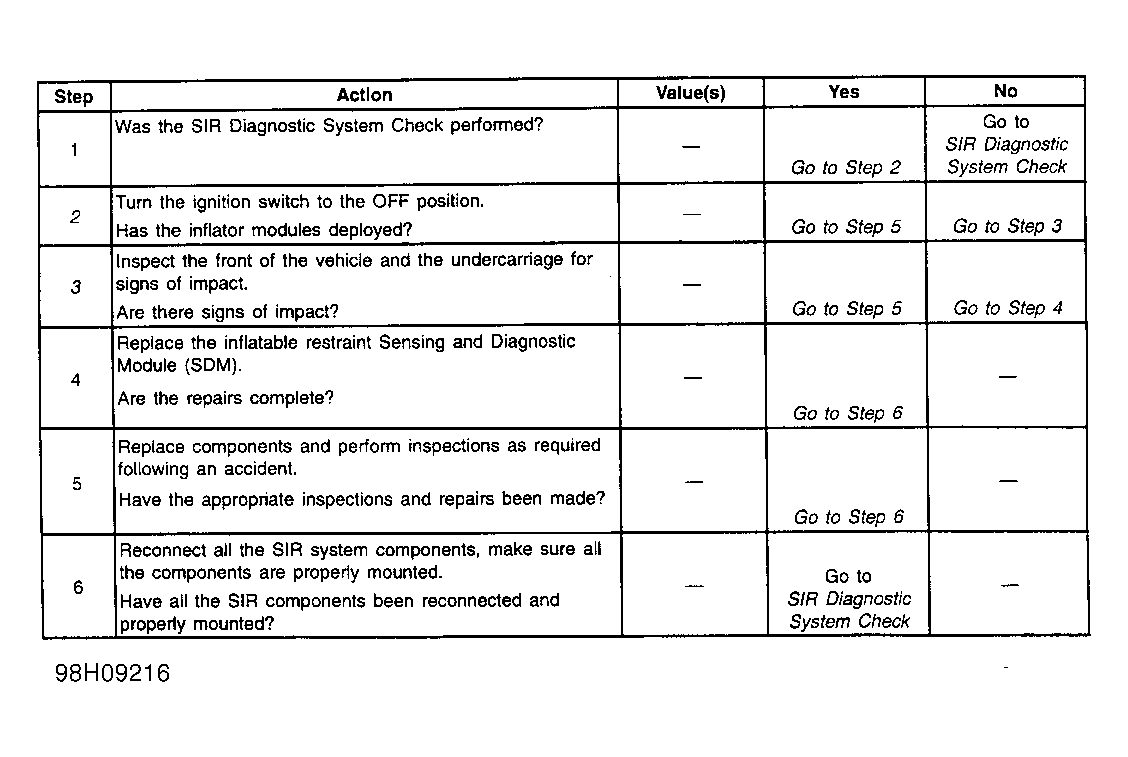

    Fig 1: DTC B1053: Deployment Commanded With Loop Faults Present
    G98H09216Courtesy of GENERAL MOTORS CORP.
