Component Identification

To identify front suspension components, see Fig 1 .

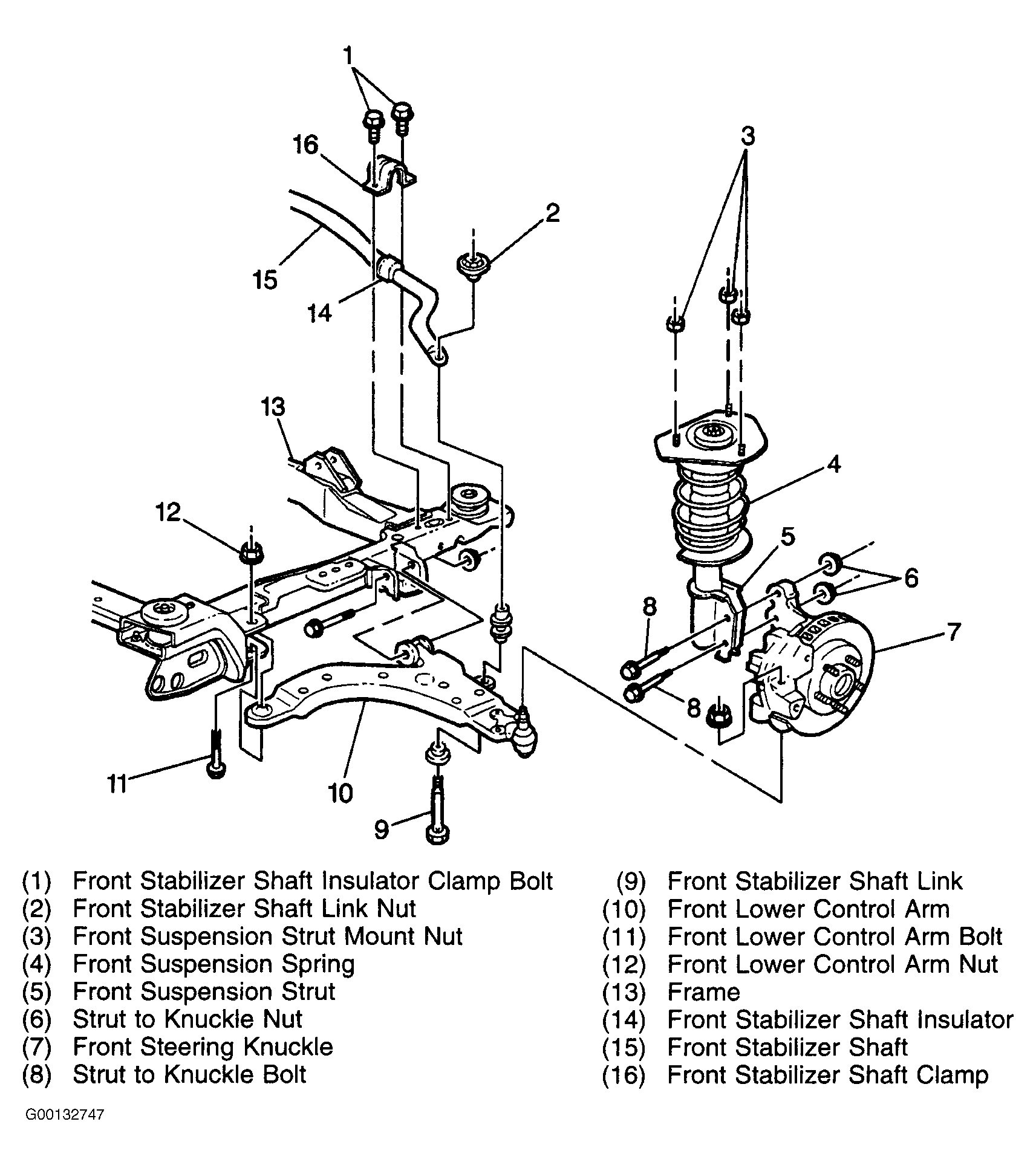

Fig 1: Exploded View Of Front Suspension Components

G00132747

Courtesy of GENERAL MOTORS CORP.
