Control Valve Assembly: Disassembly

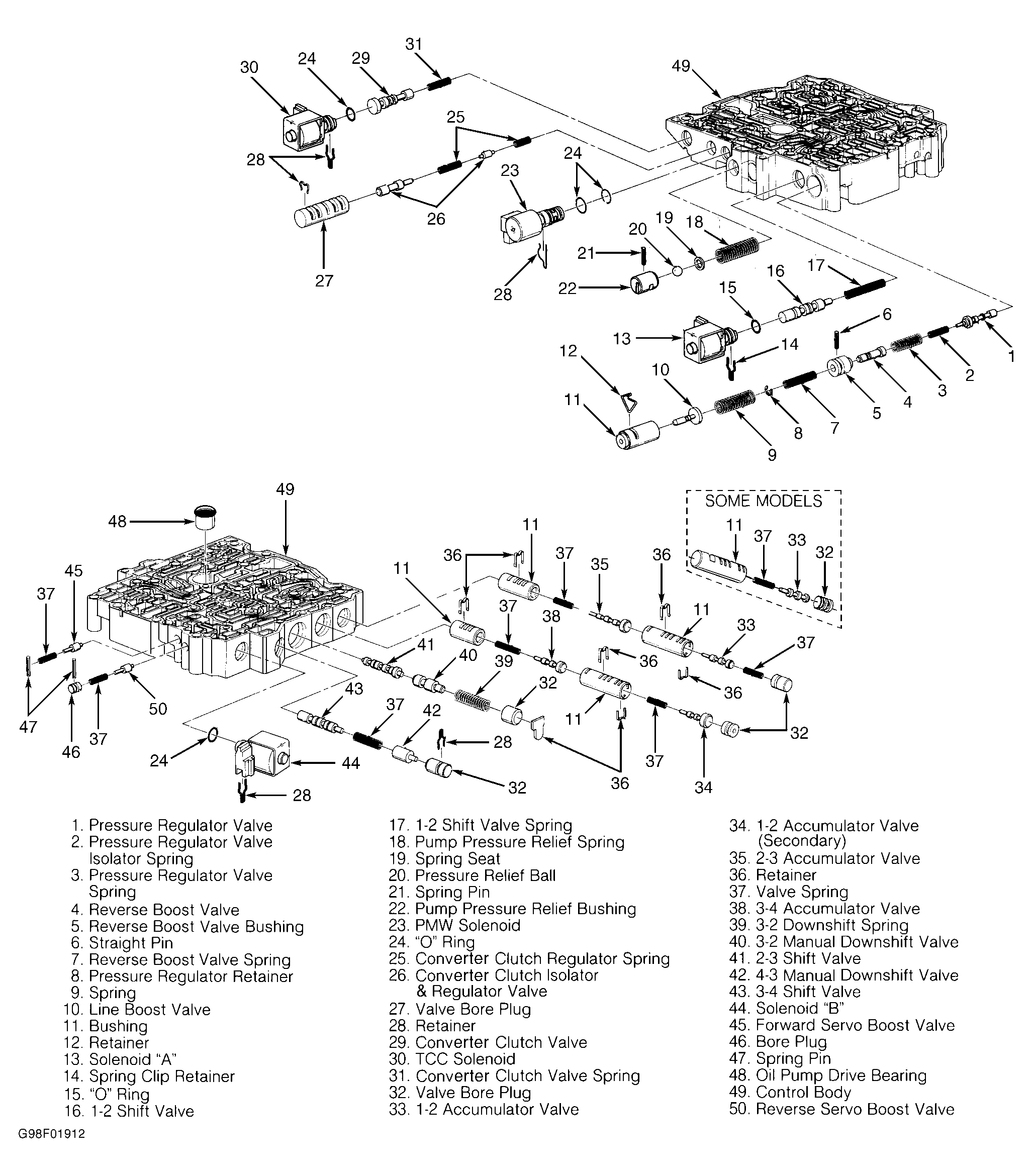

Thoroughly clean and air dry control valve assembly. Remove each valve train, beginning with upper left hand corner. Cover bores when removing roll pins, because some valves are under spring pressure. Remove blind hole roll pins with a modified drill bit. Lay valves, springs and bushings on a clean surface in the order removed. See Figure .
