Component Locations

PASS-KEY II(R) & UTD SYSTEM COMPONENT LOCATIONS

Component	Location
PASS-Key II(R) Decoder Module	Behind Top Right Side Of Dash
Powertrain Control Module (PCM)	In Left Front Of Engine Compartment
Remote Function Actuator (RFA) Module	Behind Right Side Of Dash
Starter Enable Relay	Behind Left Side Of Dash, Above Instrument Panel Fuse Block

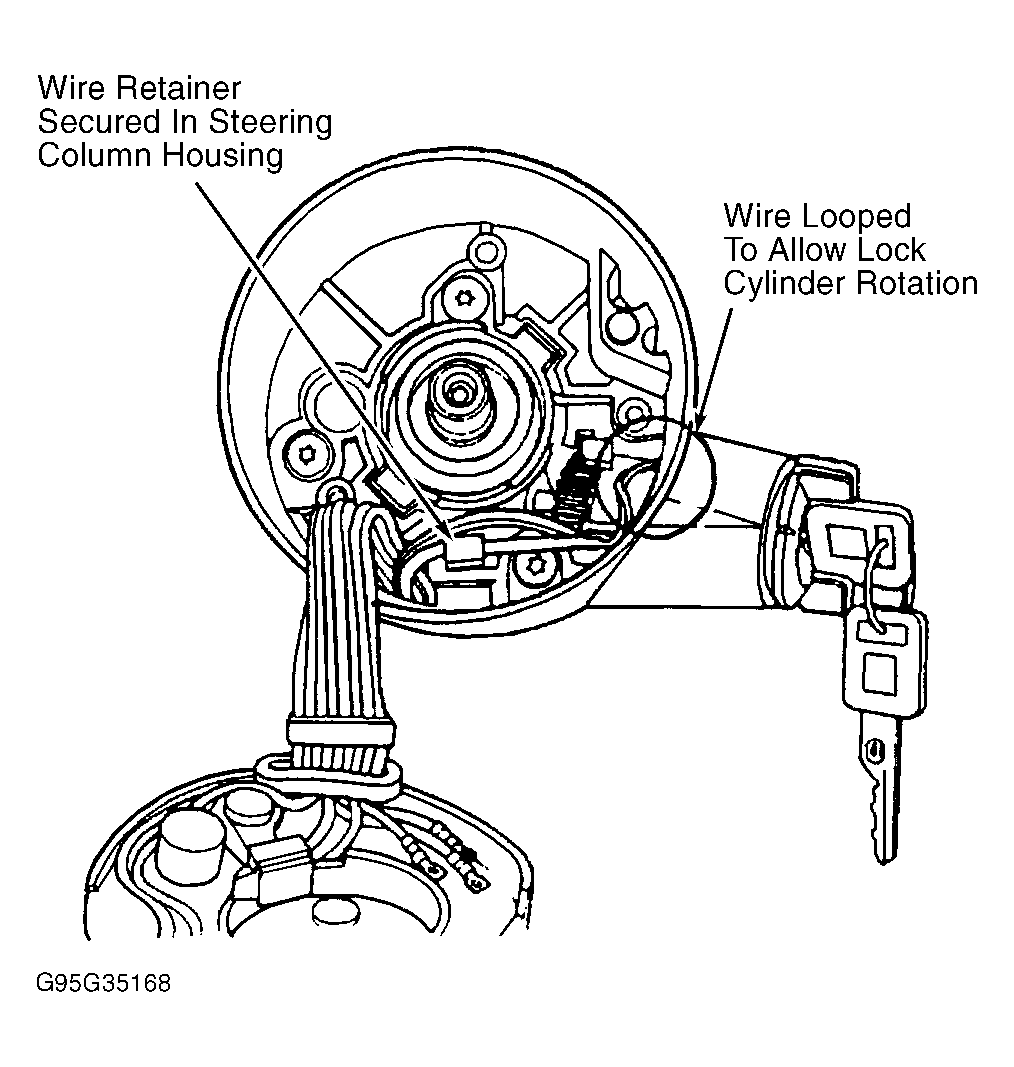

Fig 1: Ignition Key Lock Cylinder Wiring Routing Turn Signal Switch Installed

Courtesy of GENERAL MOTORS CORP.

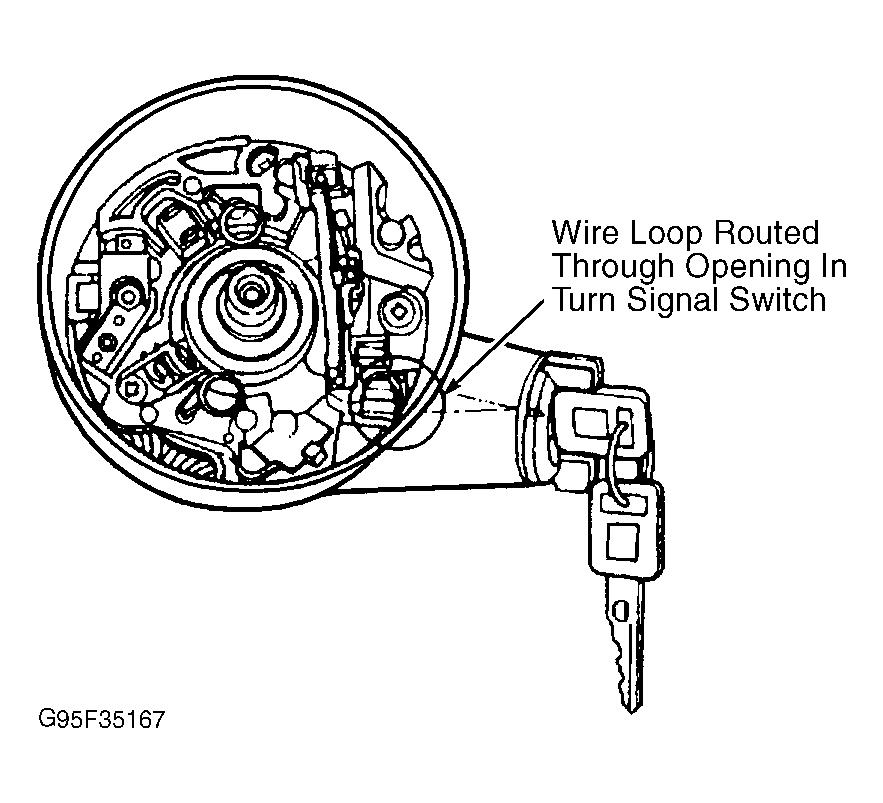

Fig 2: Ignition Key Lock Cylinder Wiring Routing Turn Signal Switch Removed

Courtesy of GENERAL MOTORS CORP.
