UNDERHOOD Junction Block

NOTE: Underhood junction block is located on driver's side of engine compartment. See Fig 1 .

Fig 1: Locating Underhood Junction Block

Courtesy of GENERAL MOTORS CORP.

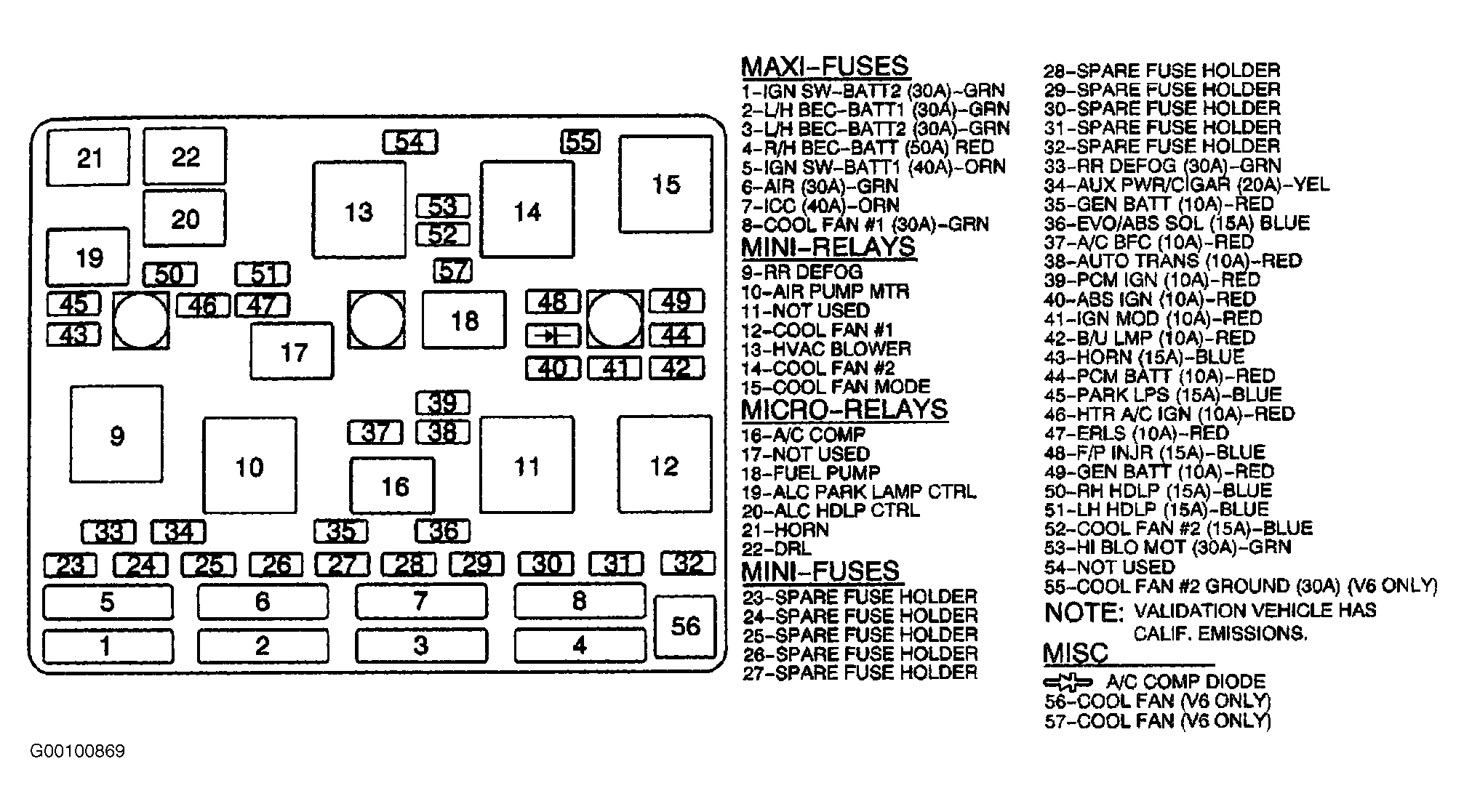

Fig 2: Identifying Underhood Junction Block Components

Courtesy of GENERAL MOTORS CORP.

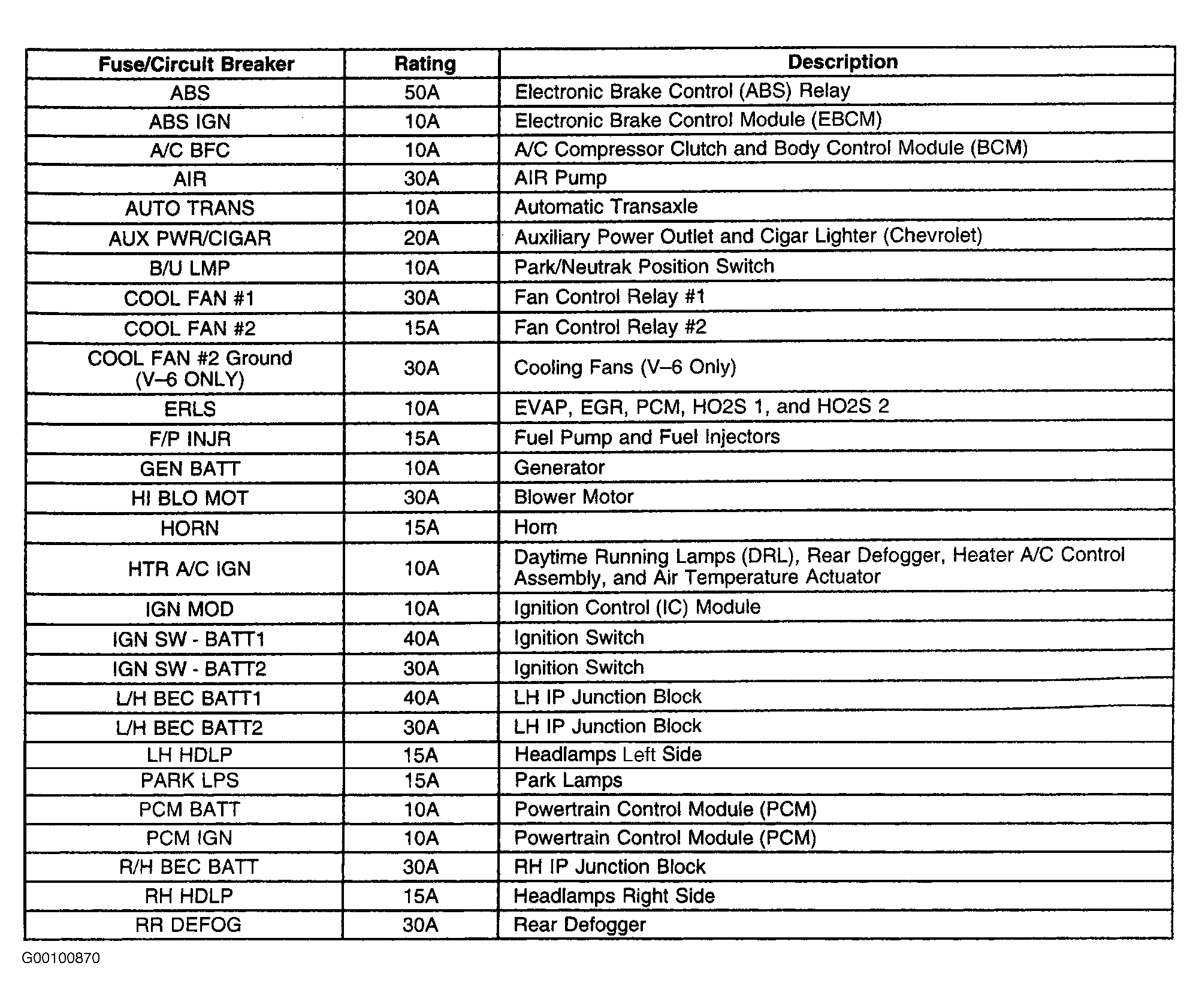

Fig 3: Underhood Junction Block Fuses Legend

Courtesy of GENERAL MOTORS CORP.
