Trouble Shooting

  1. Check POWER MIRROR Fuse by visual inspection.

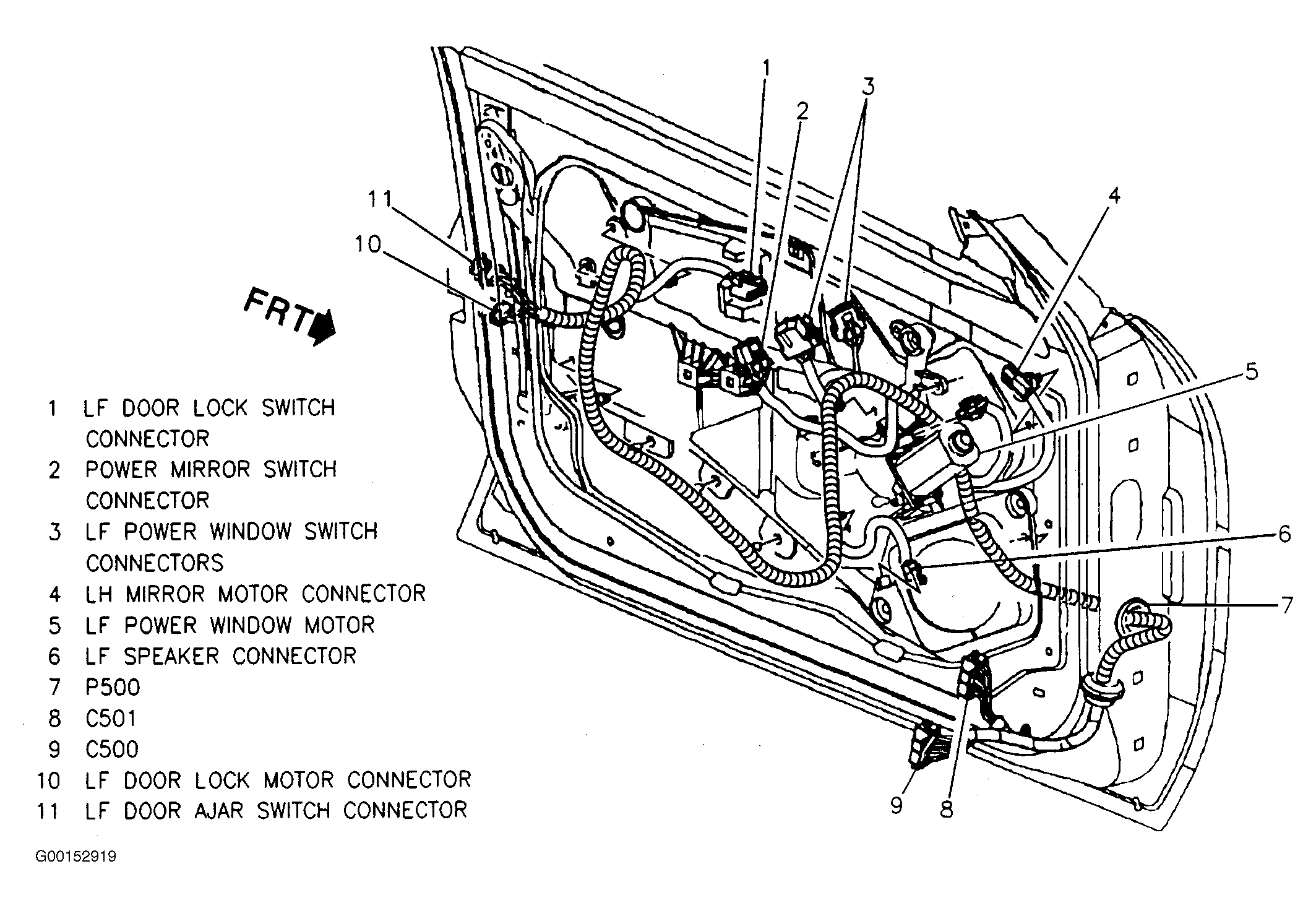

  2. See Figure for Door and Power Mirror Switch access.
  3. Verify that ground G301 is clean and tight.
  4. Verify that the Power Mirror Select Switch is in LEFT or RIGHT position and not in the center OFF position.
  5. Check for a broken (or partially broken) wire inside of the insulation which could cause system failure but prove GOOD in a continuity/voltage check.
  6. Check for proper installation of aftermarket electronic equipment which may affect the integrity of other systems.
