Home
>>
Oldsmobile
>>
1998
>>
Cutlass Base
>>
Repair and Diagnosis
>>
Body & Frame
>>
Mirrors
>>
Power Mirror System
>>
System Tests
>>
RH Mirror Test
RH Mirror Test

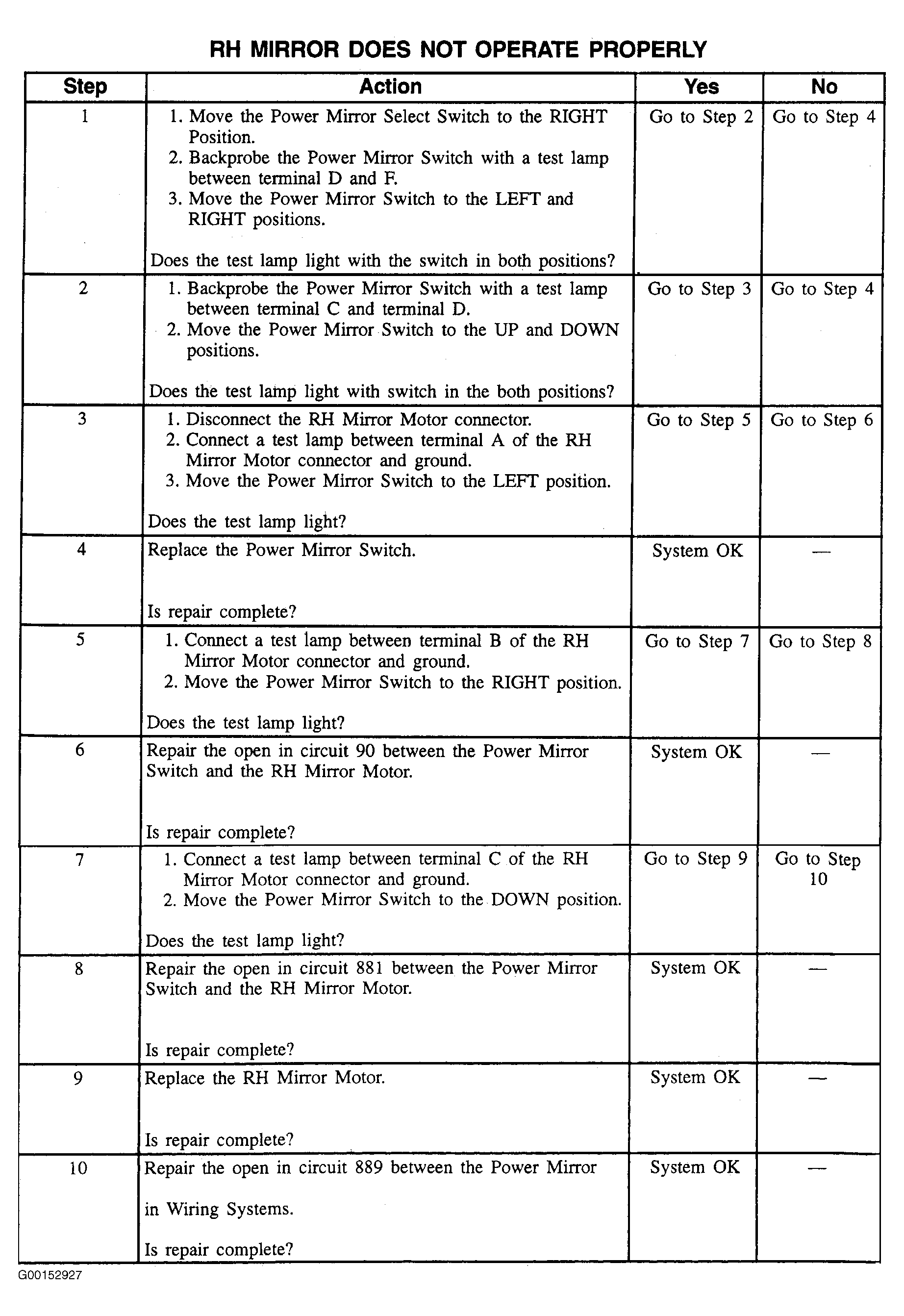

Fig 1: RH Mirror Test
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
