Forward Clutch Assembly: Notes

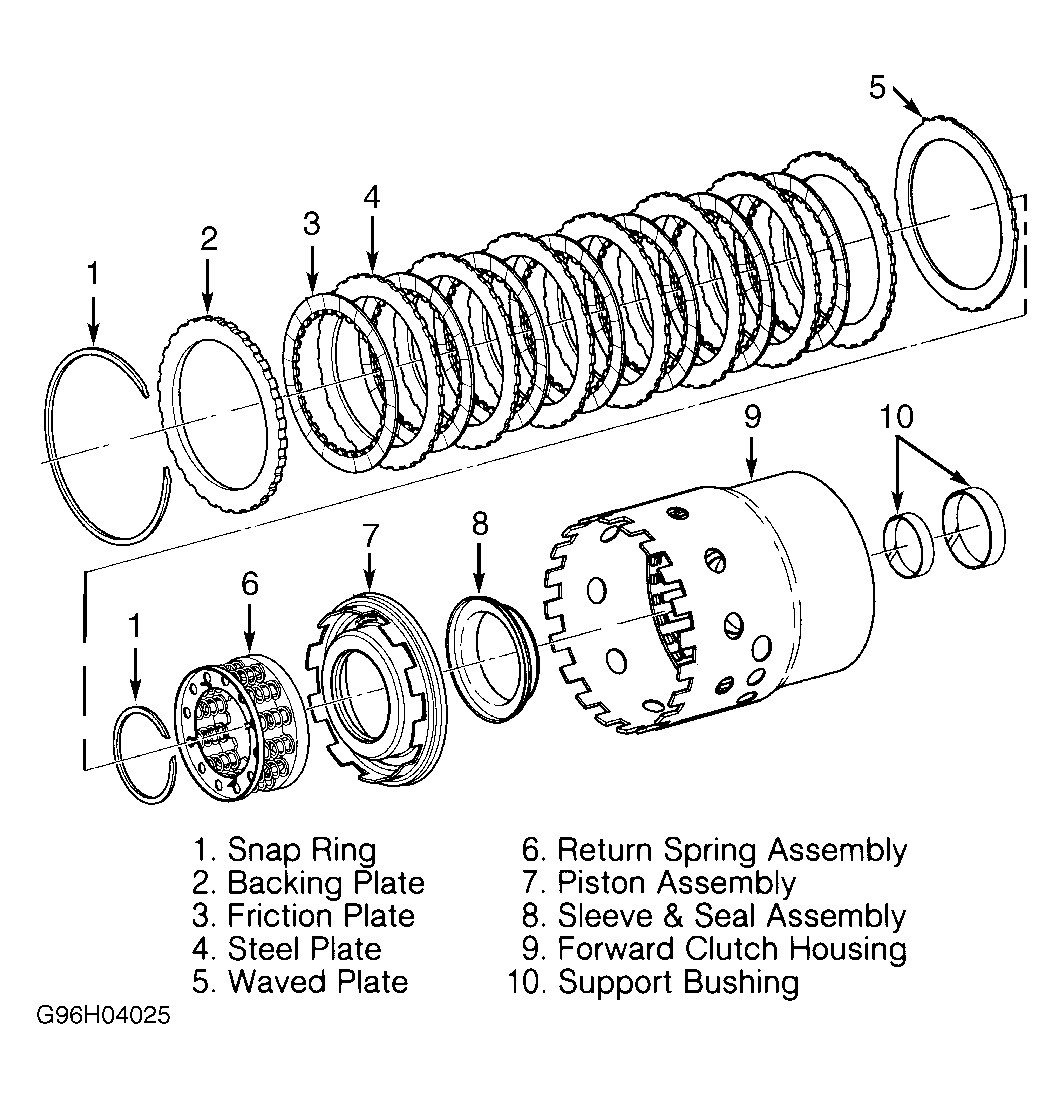

  1. Remove snap ring from clutch housing assembly. Remove backing plate, 7 friction plates, 7 steel plates and one waved plate. See Figure . Using Spring Compressor (J-23327), compress forward clutch return spring assembly. Remove snap ring and spring compressor.
  2. Remove forward clutch return spring assembly. Remove forward clutch piston assembly. Inspect forward clutch inner seal assembly for damage. If seal is damaged, place Disc (J-41097) on inner hub of clutch housing. Use puller to remove inner seal.
