Drive Sprocket Support Assembly: Disassembly

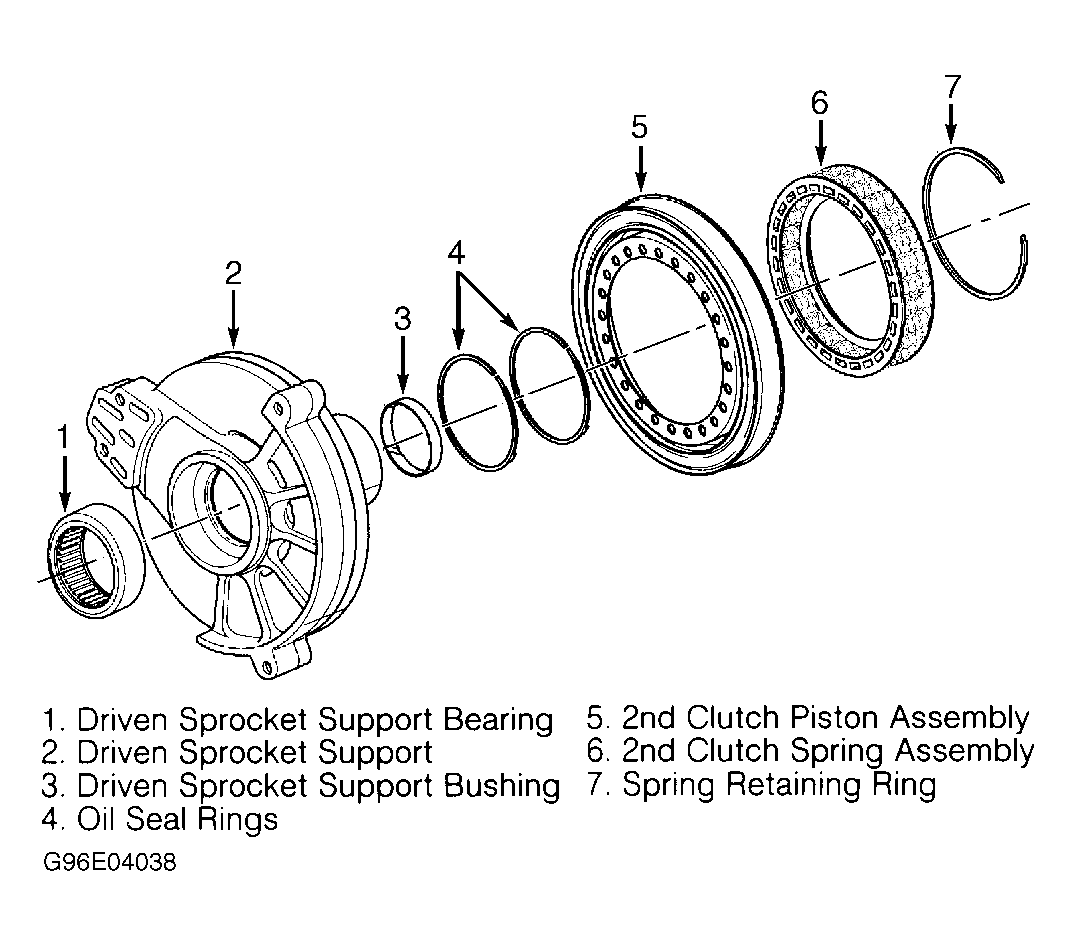

Remove and discard 2 seal rings. Compress 2nd clutch spring assembly and remove retaining ring. Remove spring compressor and 2nd clutch spring assembly. Remove 2nd clutch piston and seal assembly. See Figure . Piston and seal assembly are reusable if not damaged.
