Connector Terminal Identification
>>
Electronic Brake Control Relay & Hazard Lamp/Turn Signal Flasher
Electronic Brake Control Relay & Hazard Lamp/Turn Signal Flasher

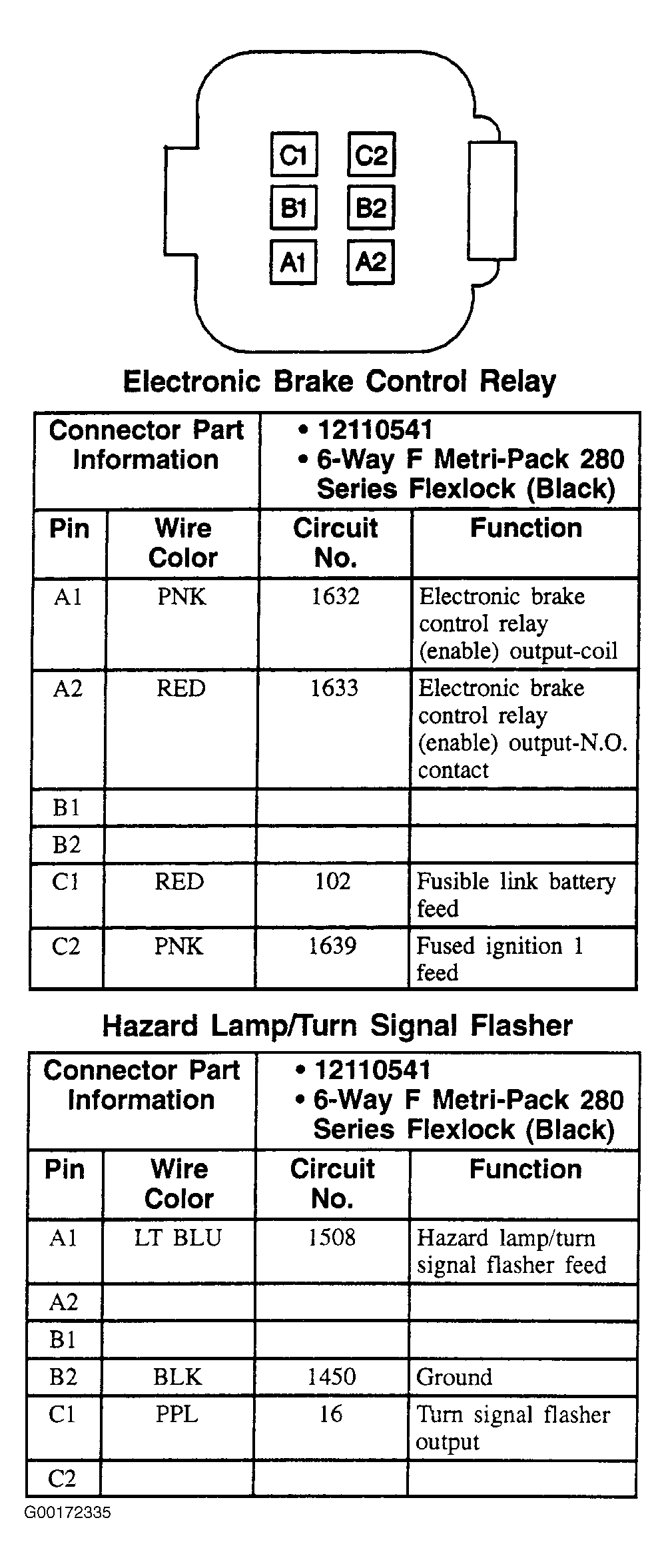

Fig 1: Electronic Brake Control Relay & Hazard Lamp/Turn Signal Flasher - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
