PCM Connector C1 (Blue)

Fig 1: PCM 80-Pin Connector - Terminal Identification - Connectors C1 & C2
G00169938Courtesy of GENERAL MOTORS CORP.

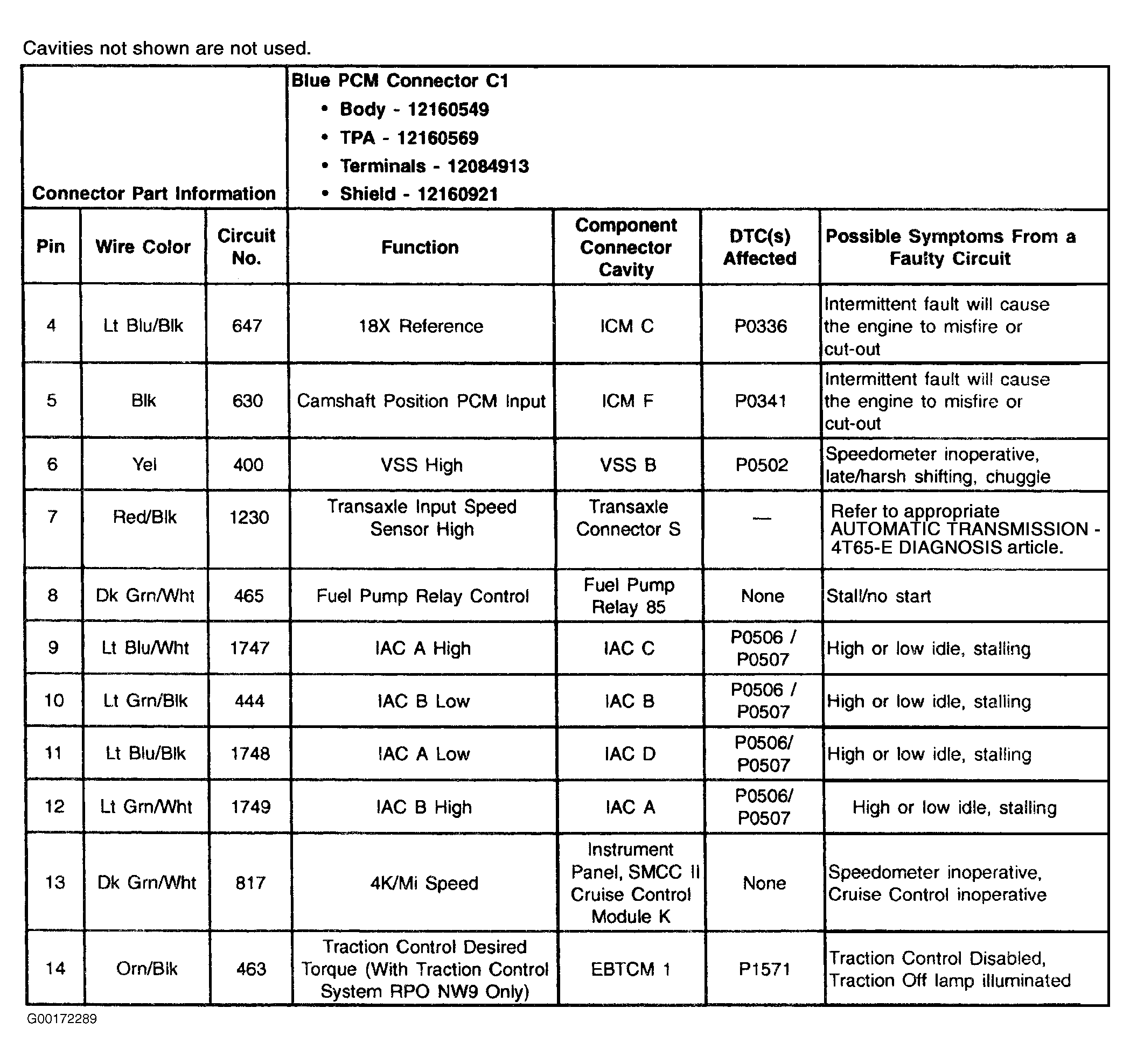

Fig 2: PCM 80-Pin Connector C1 (Blue) - Legend (1 Of 5)
G00172289Courtesy of GENERAL MOTORS CORP.

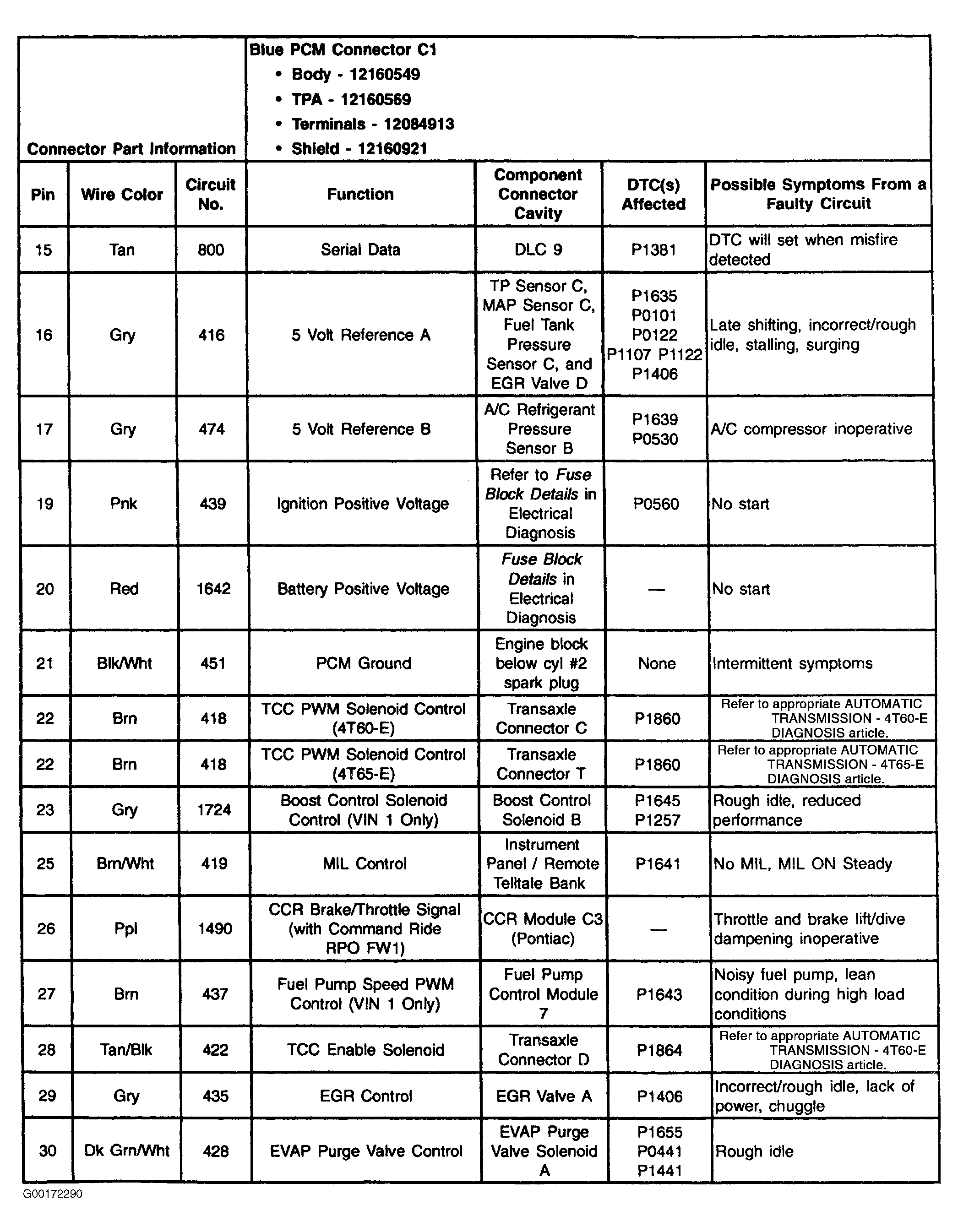

Fig 3: PCM 80-Pin Connector C1 (Blue) - Legend (2 Of 5)
G00172290Courtesy of GENERAL MOTORS CORP.

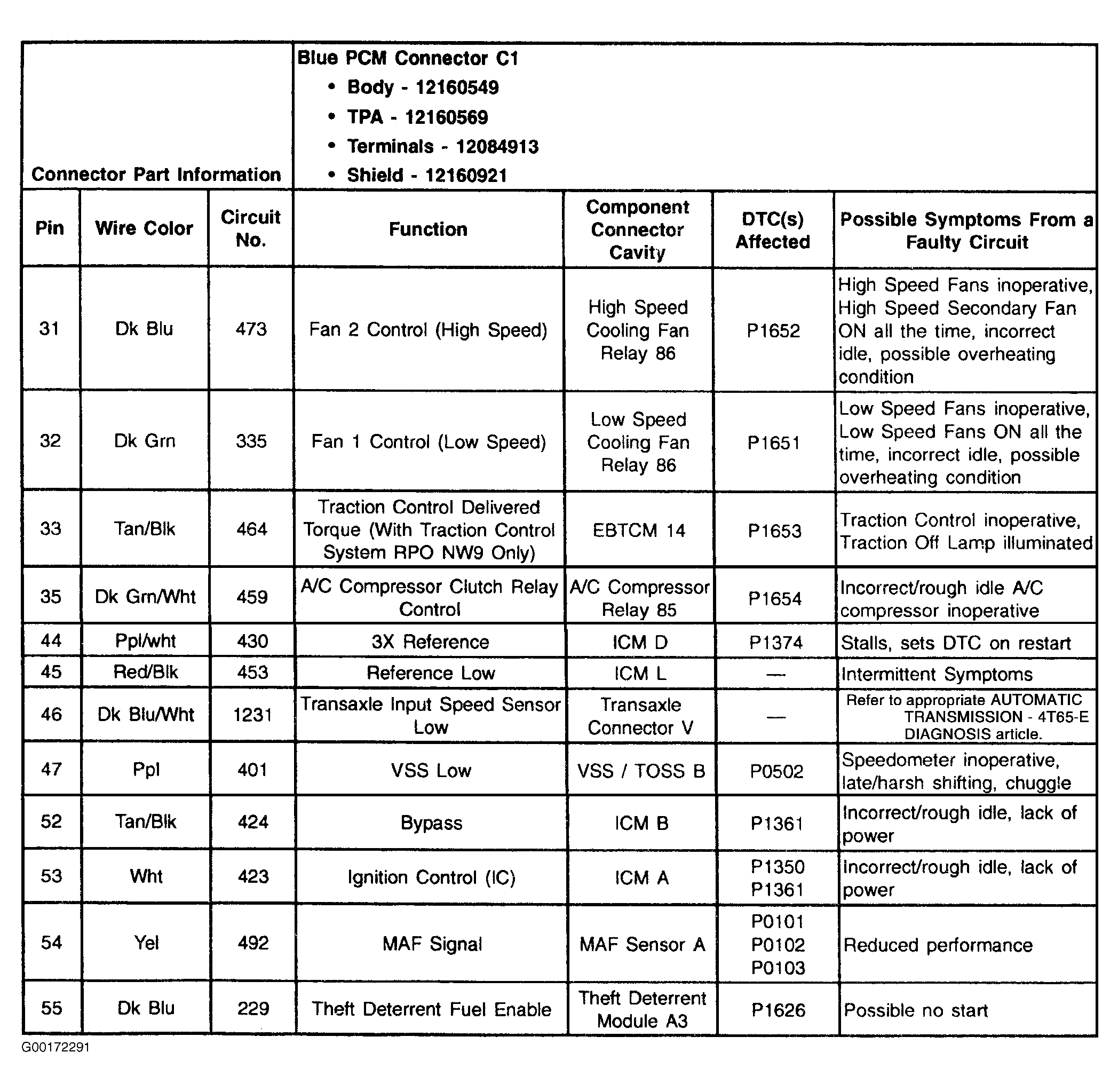

Fig 4: PCM 80-Pin Connector C1 (Blue) - Legend (3 Of 5)
G00172291Courtesy of GENERAL MOTORS CORP.

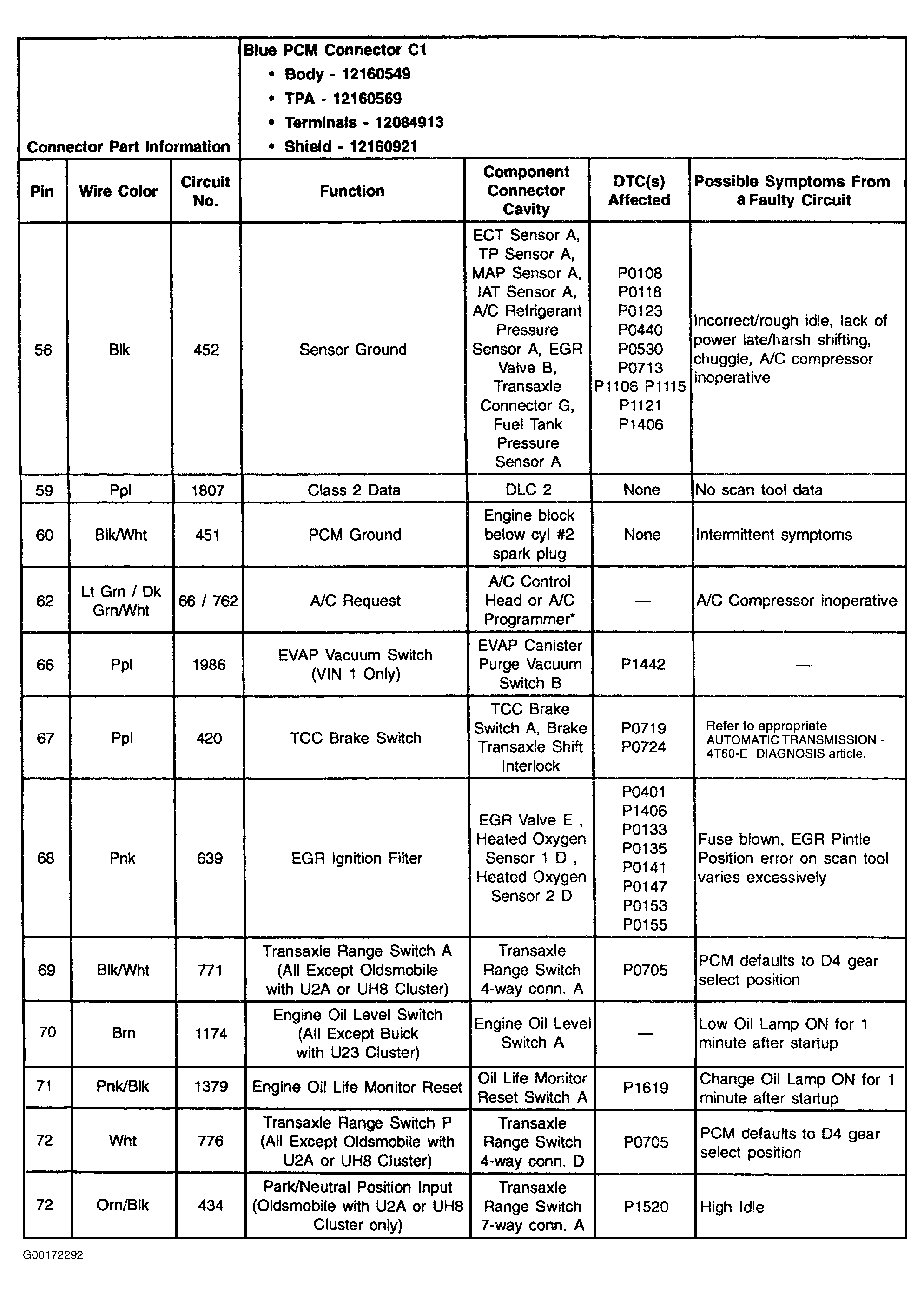

Fig 5: PCM 80-Pin Connector C1 (Blue) - Legend (4 Of 5)
G00172292Courtesy of GENERAL MOTORS CORP.
Fig 6: PCM 80-Pin Connector C1 (Blue) - Legend (5 Of 5)
G00493655Courtesy of GENERAL MOTORS COMPANY
