Seat Control Module C1 (PONTIAC With Seat Front Split, Passenger/Driver, 8-Way Adjuster & 2-Way Lumbar)

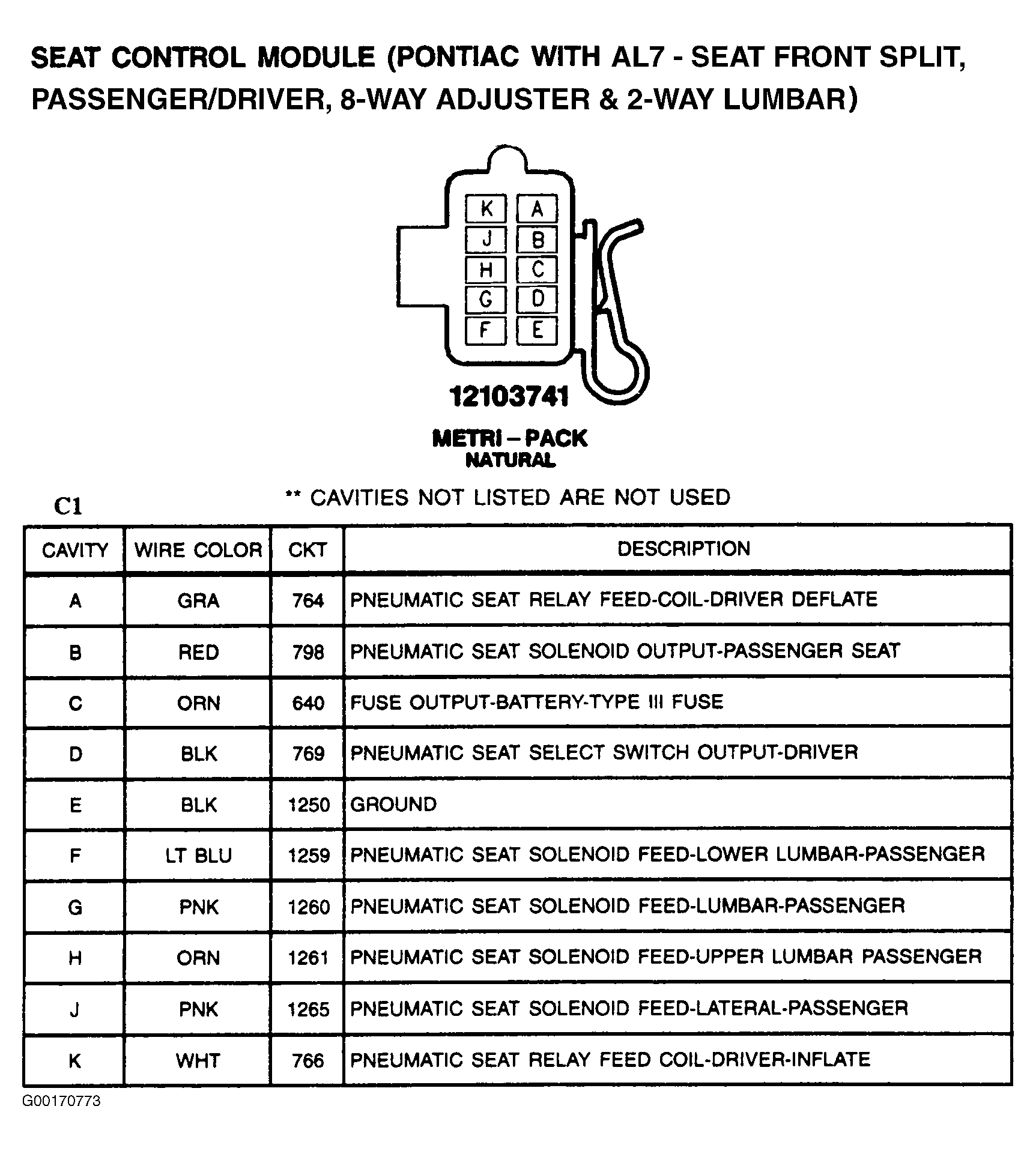

Fig 1: Seat Control Module C1 (Pontiac With Seat Front Split, Passenger/Driver, 8-Way Adjuster & 2-Way Lumbar) - 10-Pin Connector (Natural)
G00170773Courtesy of GENERAL MOTORS CORP.
