Engine Coolant Level Sensor, Fuel Tank Vacuum Sensor & Throttle Position Sensor (TPS)

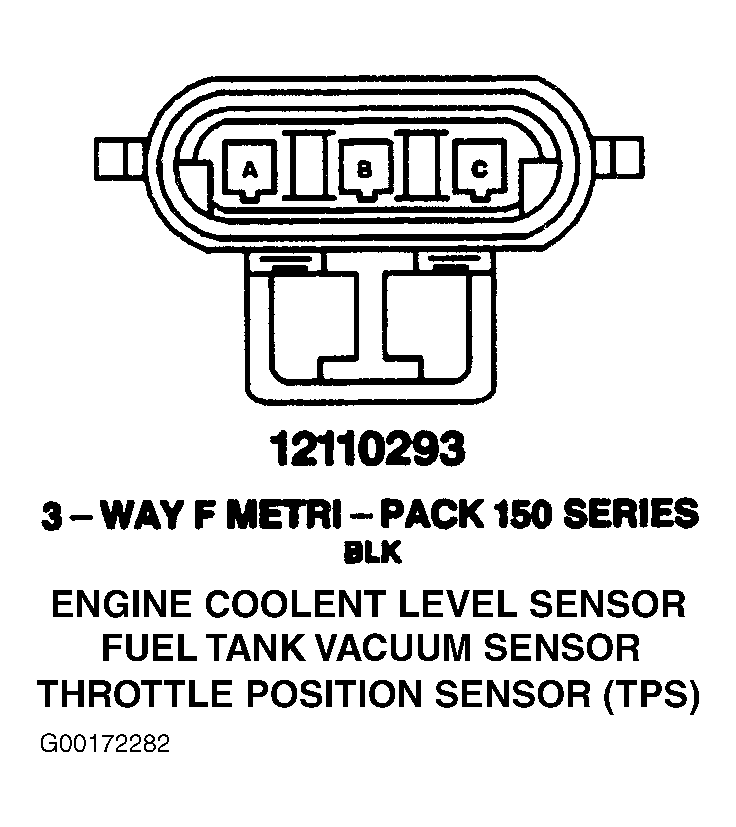

Fig 1: Engine Coolant Level Sensor, Fuel Tank Vacuum Sensor & Throttle Position Sensor (TPS) - 3-Pin Connector (Black)
G00172282Courtesy of GENERAL MOTORS CORP.
