Instrument Panel Fuse Block

NOTE: Instrument panel fuse block is located under driver's side of instrument panel. See Fig 1 .

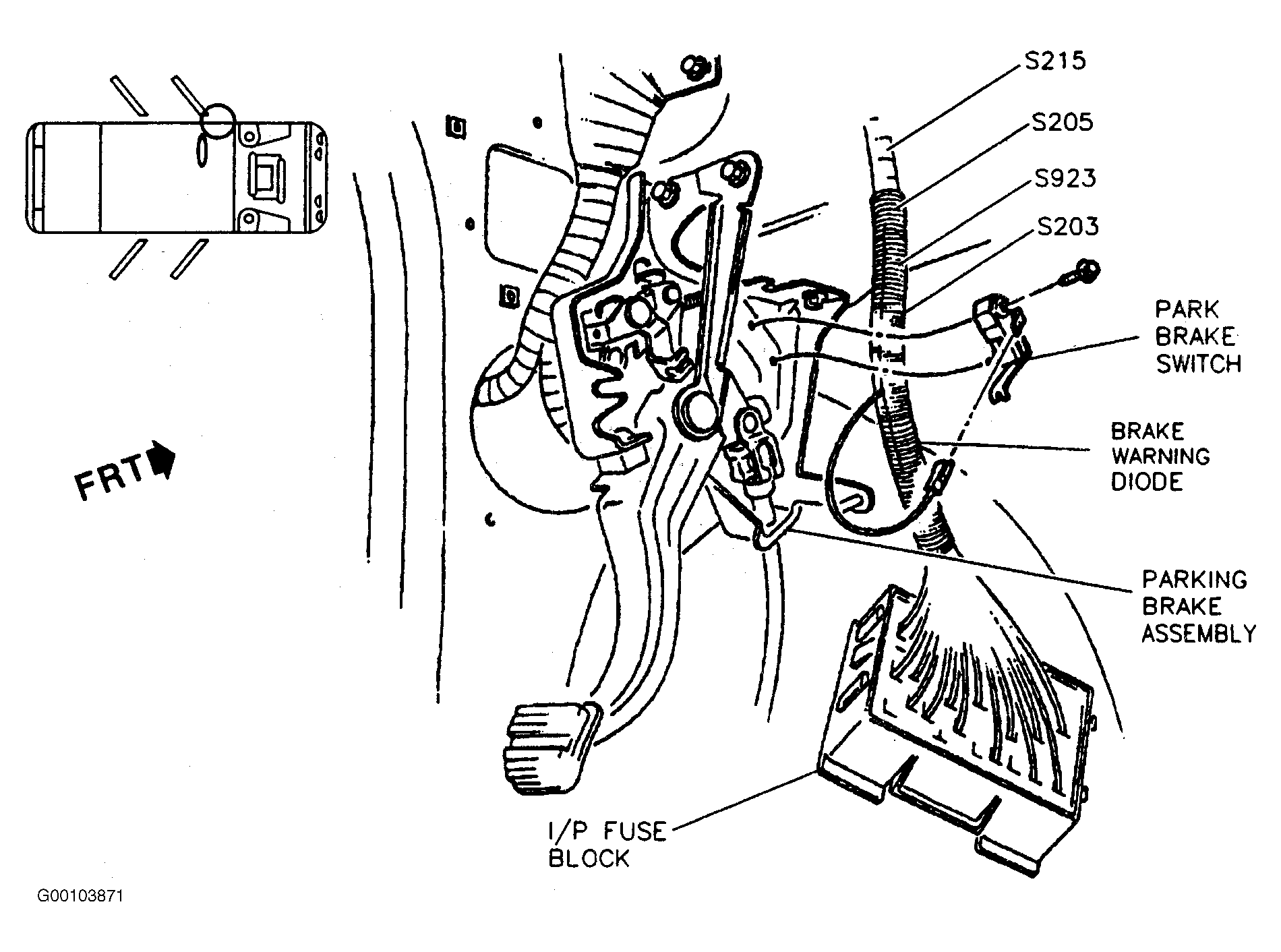

Fig 1: Locating Instrument Panel Fuse Block
G00103871Courtesy of GENERAL MOTORS CORP.

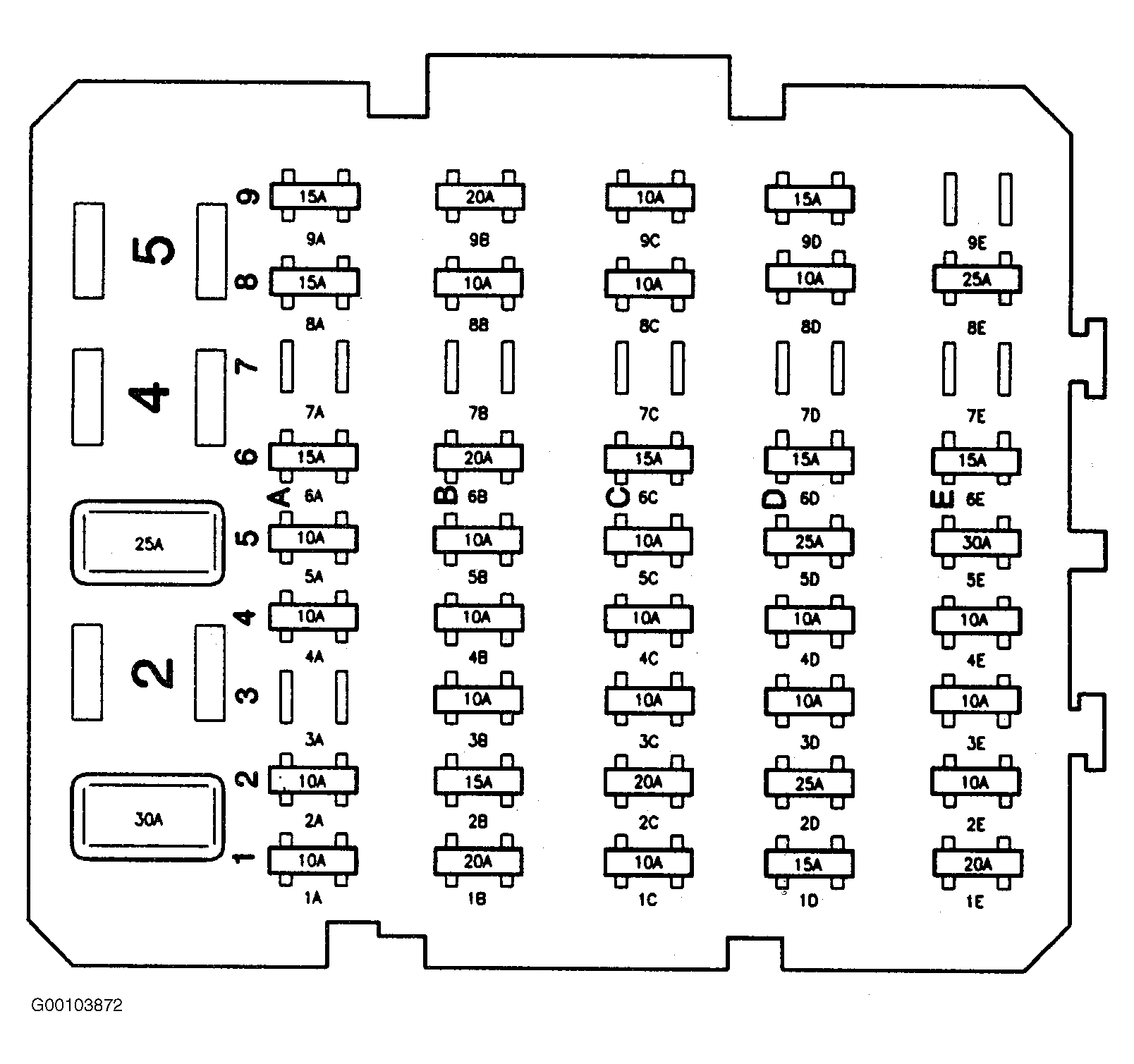

Fig 2: Identifying Instrument Panel Fuse Block Components
G00103872Courtesy of GENERAL MOTORS CORP.
