Removal & Installation

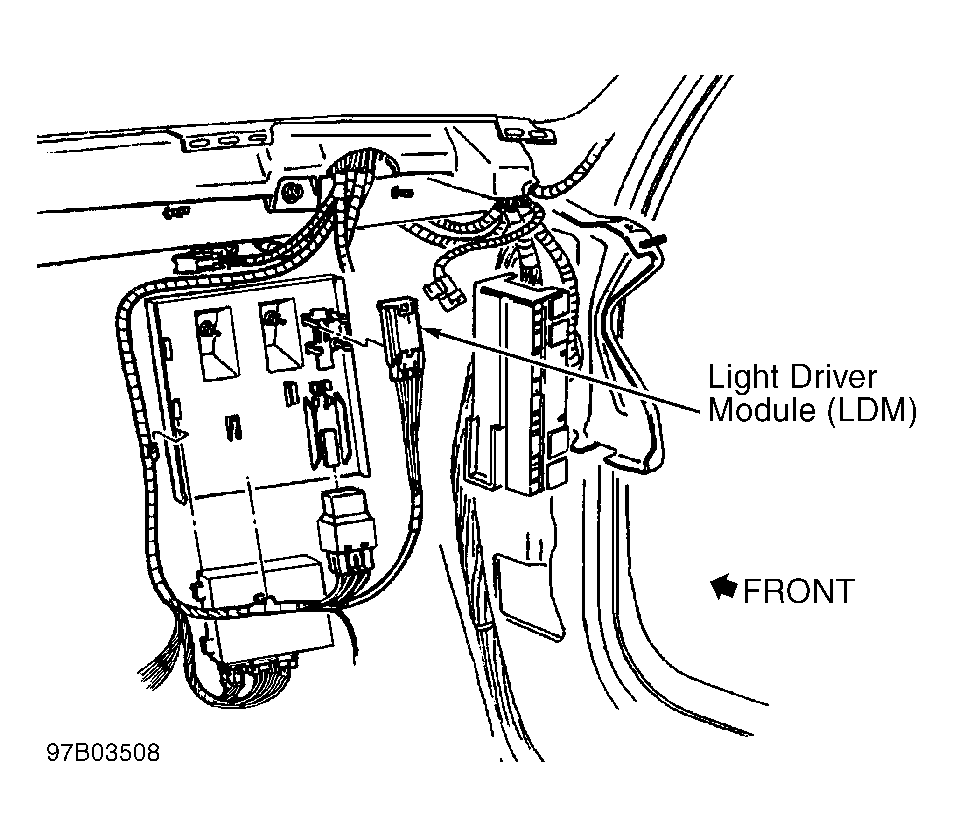

Light Driver Module (LDM) is located behind right side of instrument panel, attached to bracket. See Fig 1. Remove LDM from bracket. Open LDM endcap and pull printed circuit board out of LDM. To install, reverse removal procedure.
