Seat Control Module C2 (PONTIAC With Seat Front Split, Passenger/Driver, 8-Way Adjuster & 2-Way Lumbar)

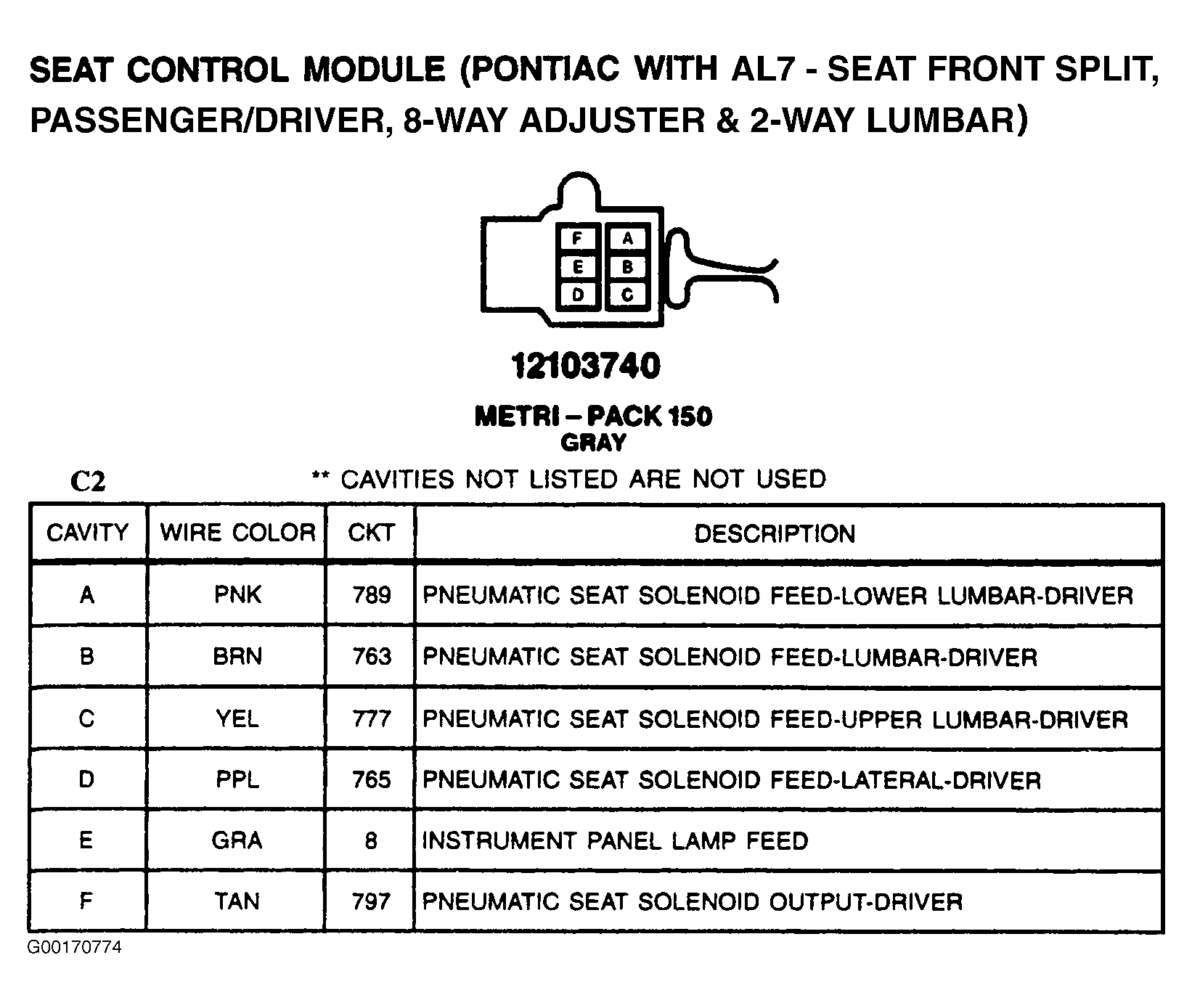

Fig 1: Seat Control Module C2 (Pontiac With Seat Front Split, Passenger/Driver, 8-Way Adjuster & 2-Way Lumbar) - 6-Pin Connector (Gray)
G00170774Courtesy of GENERAL MOTORS CORP.
