Remote Function Actuator (RFA) Module

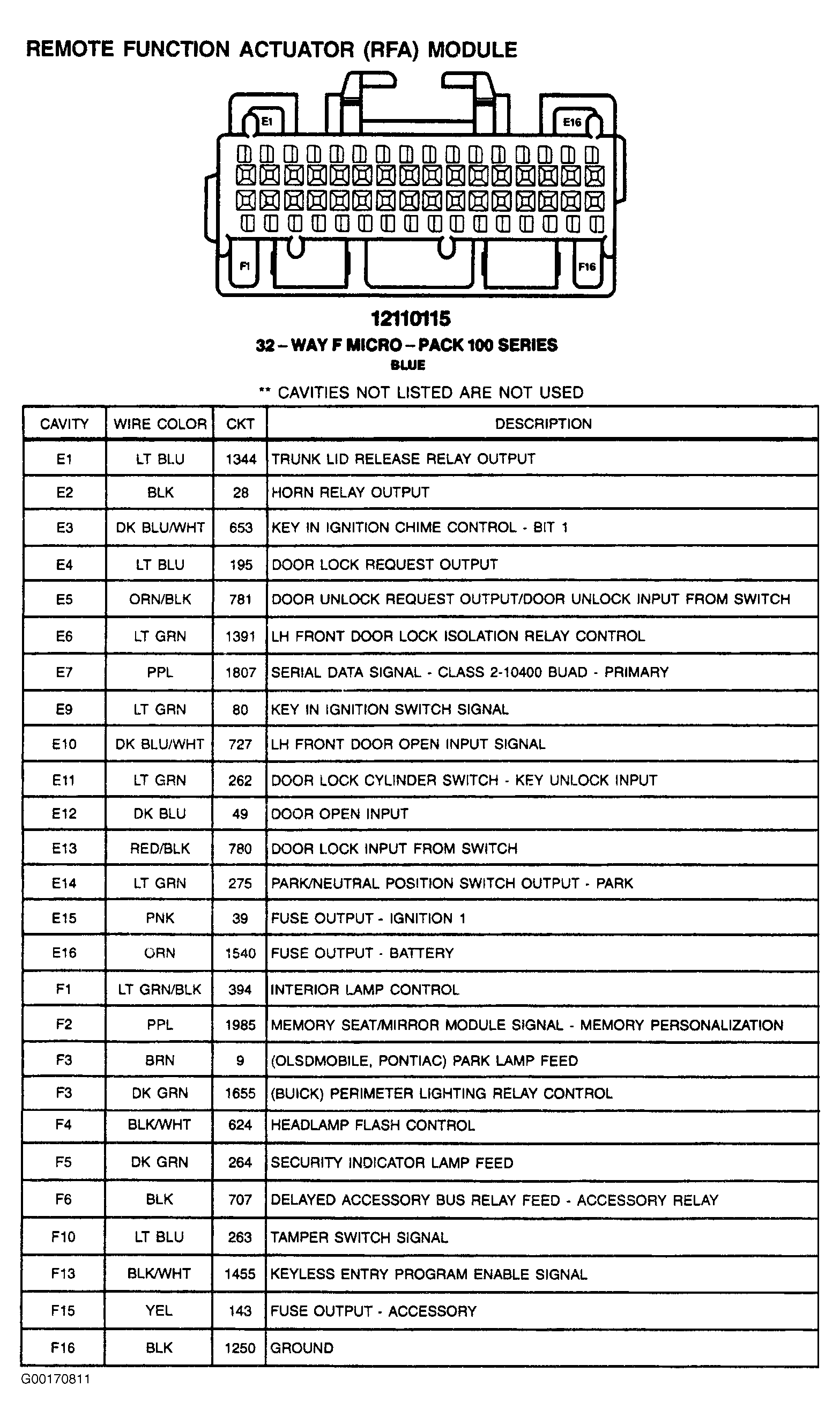

Fig 1: Remote Function Actuator (RFA) Module - 32-Pin Connector (Blue)

G00170811

Courtesy of GENERAL MOTORS CORP.
