Connector Terminal Identification
>>
Lamp Control Module (LCM) Connectors
>>
Lamp Control Module (LCM) C2 (OLDSMOBILE & PONTIAC)
Lamp Control Module (LCM) C2 (OLDSMOBILE & PONTIAC)

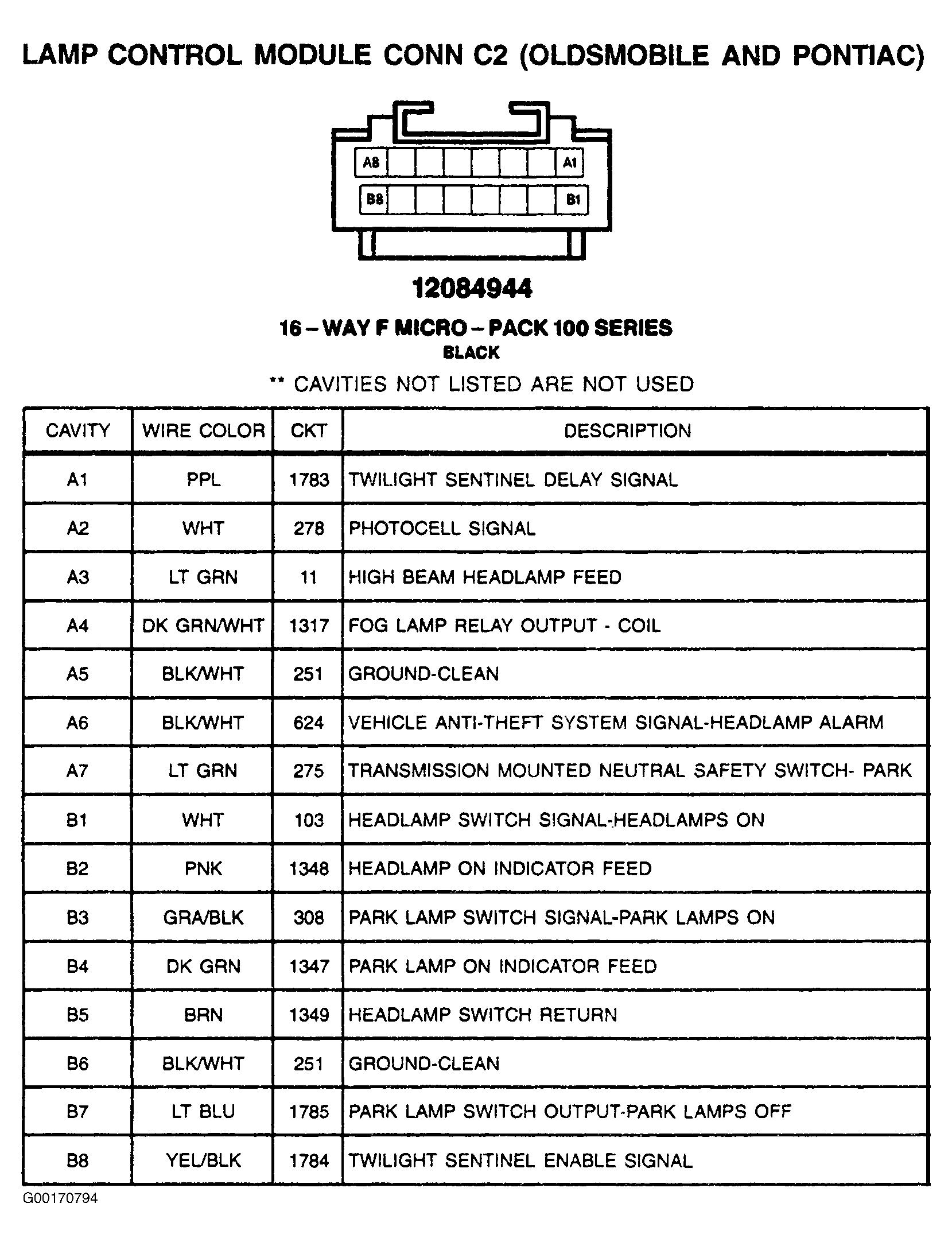

Fig 1: Lamp Control Module (LCM) C2 (Oldsmobile & Pontiac) - 16-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
