Heater & A/C Control Assembly C2 (BUICK With Front Electronic Controls)

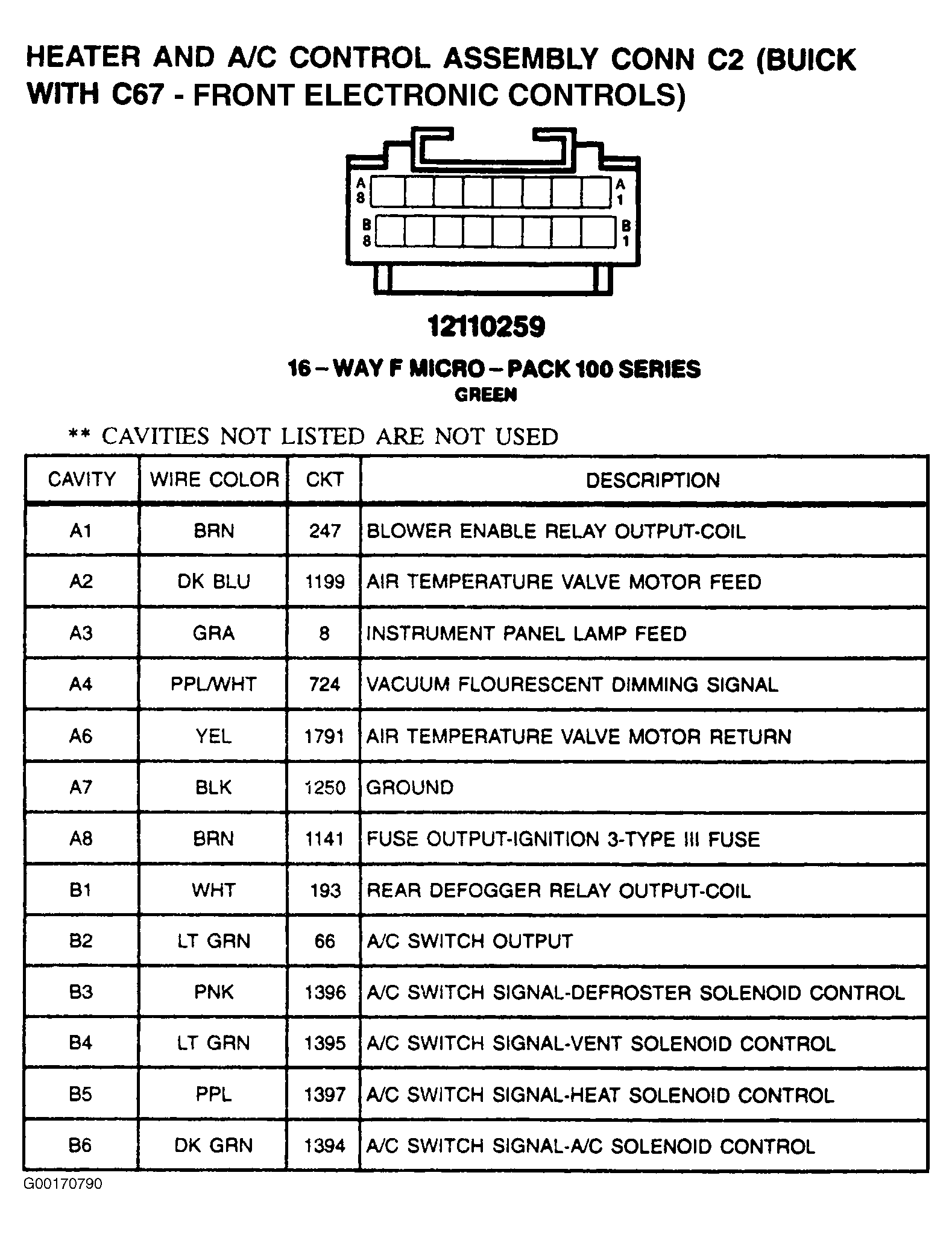

Fig 1: Heater & A/C Control Assembly C2 (Buick With Front Electronic Controls) - 16-Pin Connector (Green)
G00170790Courtesy of GENERAL MOTORS CORP.
