Heater & A/C Control Assembly (BUICK & OLDSMOBILE With Automatic Temperature Control)

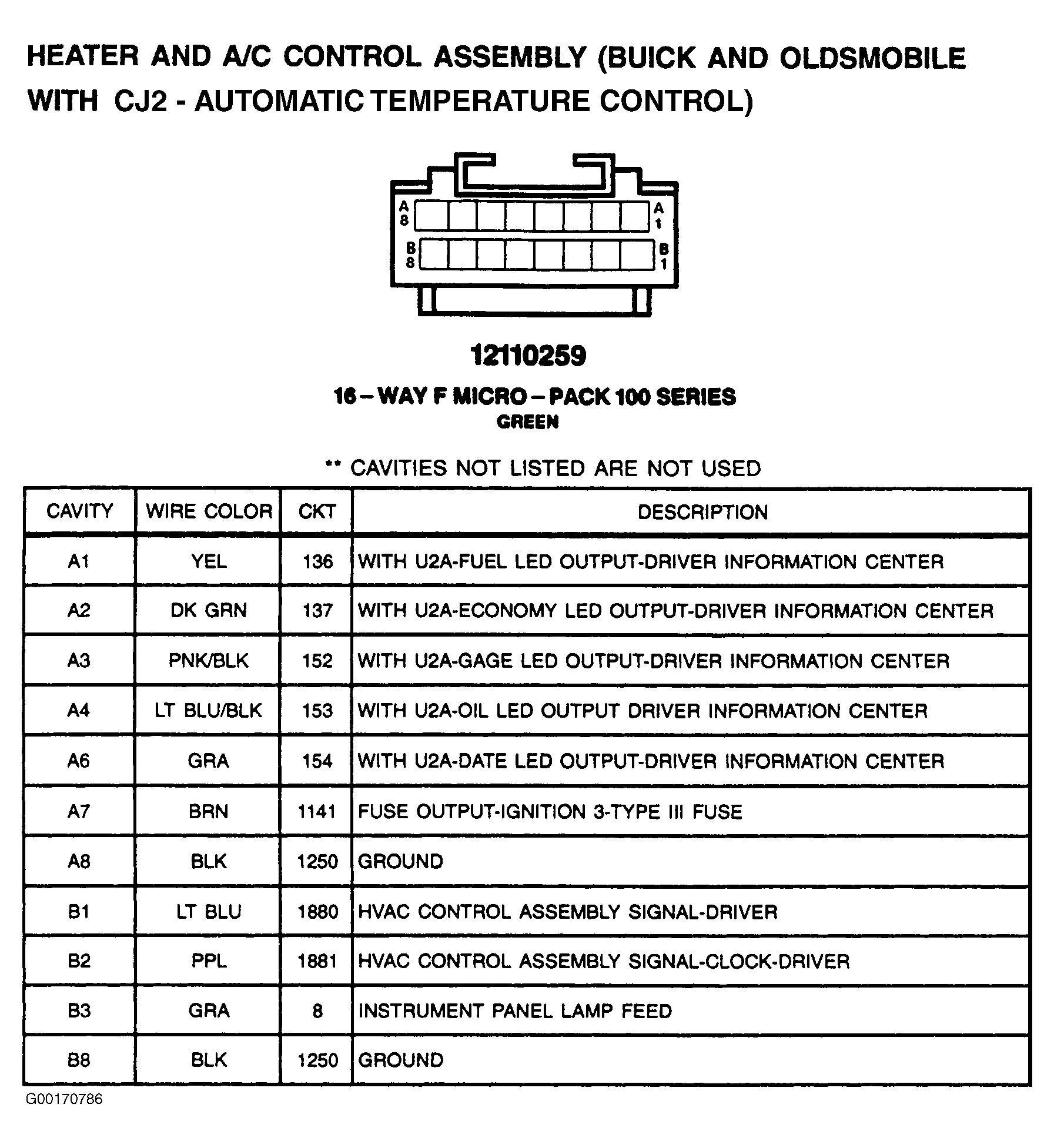

Fig 1: Heater & A/C Control Assembly (Buick & Oldsmobile With Automatic Temperature Control) - 16-Pin Connector (Green)
G00170786Courtesy of GENERAL MOTORS CORP.
