Head-Up Display Control Module

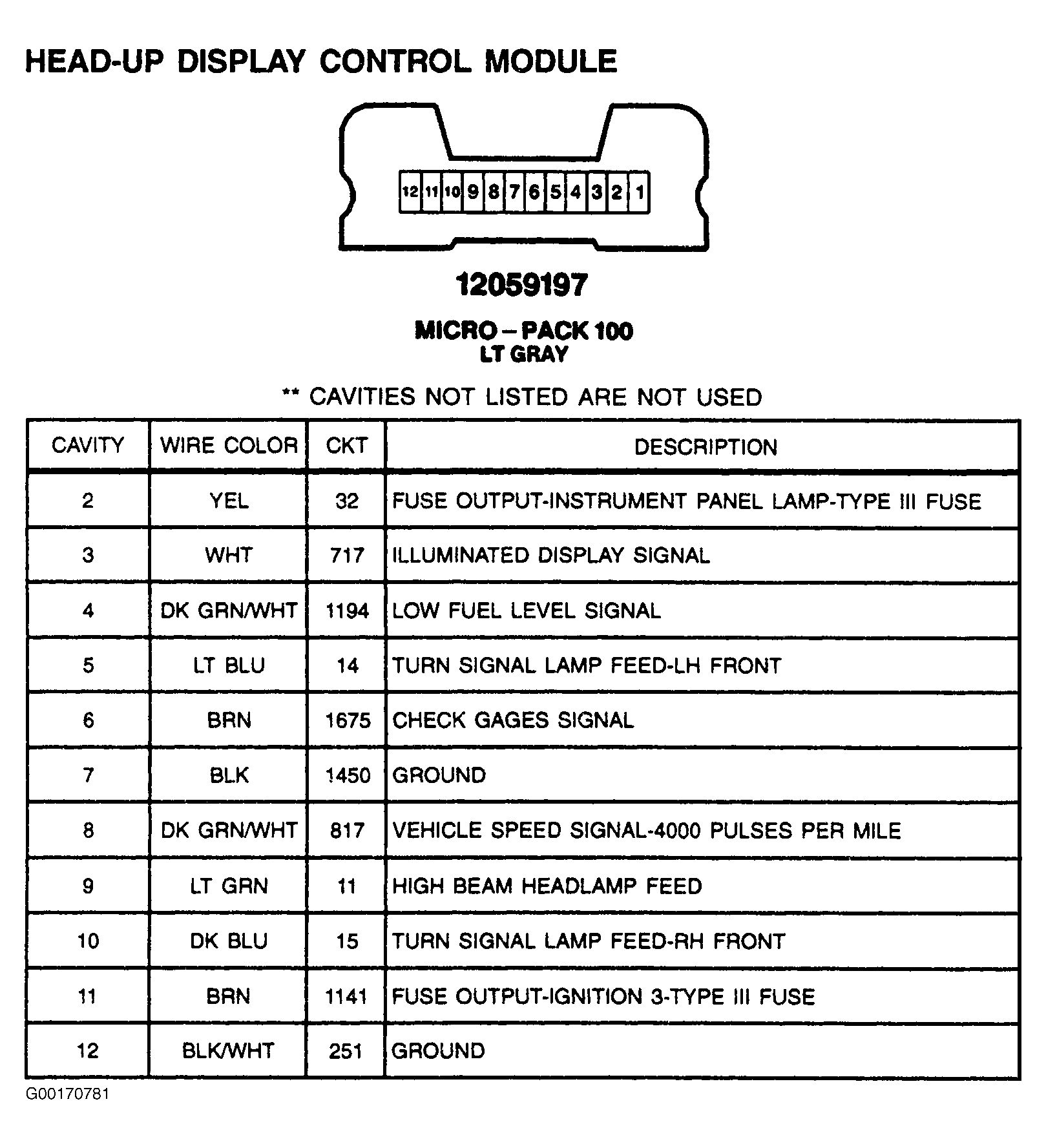

Fig 1: Head-Up Display Control Module - 12-Pin Connector (Light Gray)

G00170781

Courtesy of GENERAL MOTORS CORP.
